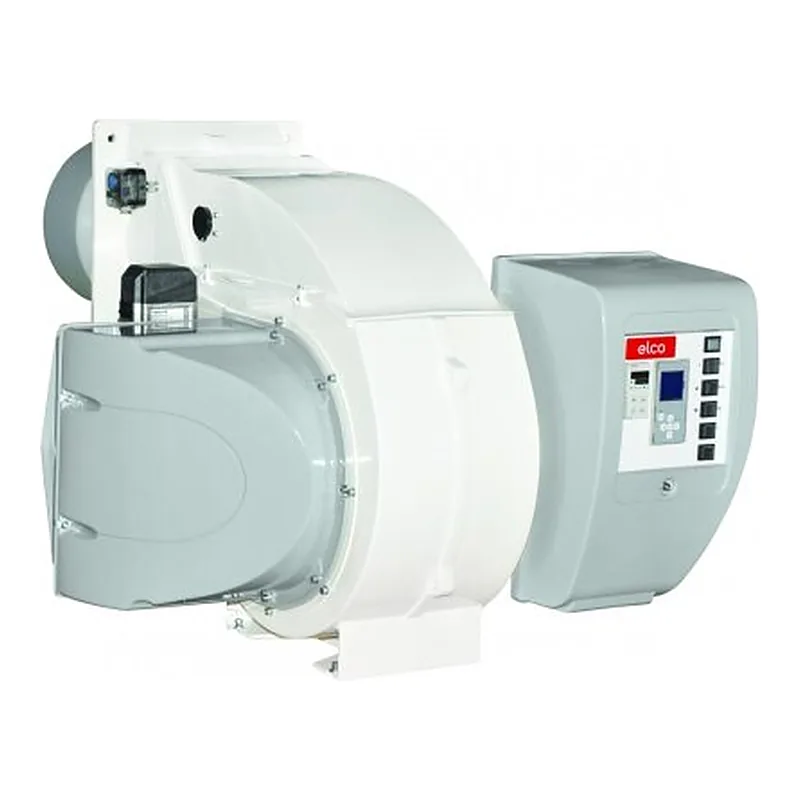

Elco EK-EVO 6.2900 GL-EZ3/BT3/KM — burner, photo 1

Elco EK-EVO 6.2900 GL-EZ3/BT3/KM — spare parts

Output
290–3050 kW
Parts
6
Factory code
3760190

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco EK-EVO 6.2900 GL-EZ3/BT3/KM · 3

Actuators for Elco EK-EVO 6.2900 GL-EZ3/BT3/KM · 1

Ignition cables and connectors for Elco EK-EVO 6.2900 GL-EZ3/BT3/KM · 1

Oil valves for Elco EK-EVO 6.2900 GL-EZ3/BT3/KM · 1

Specifications

Output290–3050 kW
Fan motor power4000 W
Supply voltage220 V
Power consumption6300 W
Net weight235 kg
Protection class (IP)IP41
Flame tube length450 mm
Flame tube diameter320 mm
Flame tube typestandard
Back pressure (combustion chamber)0–15 mbar
Gas consumption6.99–11.39 m³/h
Noise level77 dB
Operating temperature0–40 °C
Overall dimensions149.8 x 103.5 x 81.2 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco EK-EVO 6.2900 · 12

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Elco EK-EVO 6.2900 GL-EZ3/BT3/KM parts

Which burner components fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM?

These fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM: Elco Gas Ramp 3750512; Elco Gas Ramp 3750513; Elco Gas Ramp 3750528. ↑

Which actuators fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM?

These fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM: Elco Actuator 65314312. ↑

Which ignition cables and connectors fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM?

These fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM: Elco Ignition cable 65313731. ↑

Which oil valves fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM?

These fit Elco EK-EVO 6.2900 GL-EZ3/BT3/KM: Elco Liquid Fuel Solenoid Valve 13022401. ↑
