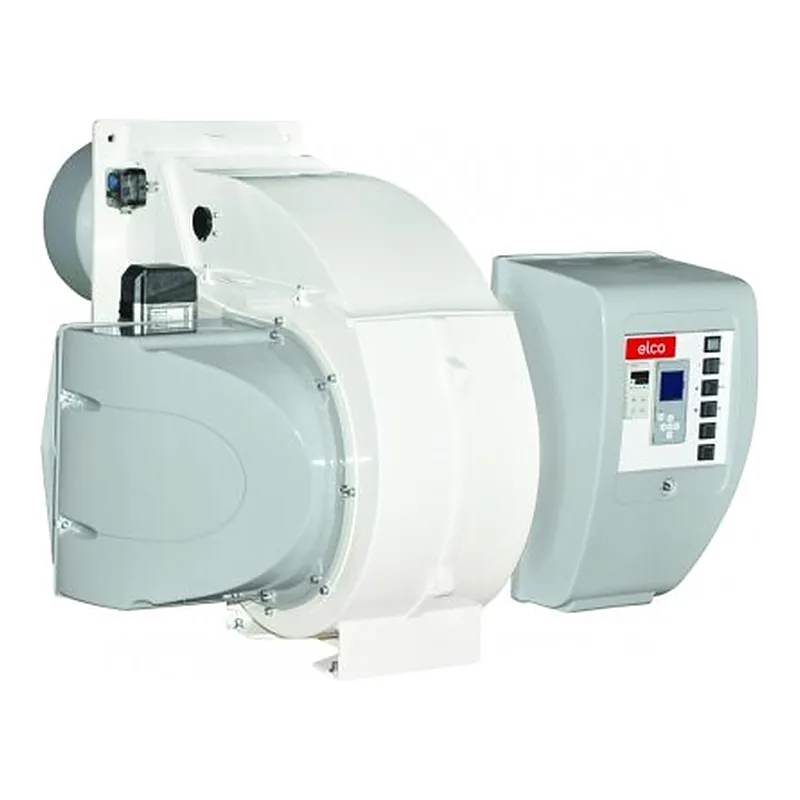

Elco EK-EVO 7.3600 G-E/BT3/KN — gas burner, photo 1

Elco EK-EVO 7.3600 G-E/BT3/KN — spare parts

Fuel
Gas
Output
580–4300 kW
Parts
4
Factory code
3752747

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Control devices for Elco EK-EVO 7.3600 G-E/BT3/KN · 2

Ignition cables and connectors for Elco EK-EVO 7.3600 G-E/BT3/KN · 1

Motors for Elco EK-EVO 7.3600 G-E/BT3/KN · 1

Specifications

FuelGas
Output580–4300 kW
Gas connectionDN 65
Fan motor power5500 W
Supply voltage220 V
Power consumption7500 W
Net weight170 kg
Protection class (IP)IP41
Flame tube length375 mm
Flame tube diameter320 mm
Flame tube typeshort
Back pressure (combustion chamber)0–16 mbar
Gas consumption6.99–11.39 m³/h
Noise level81 dB
Operating temperature0–40 °C
Overall dimensions149.7 x 109.3 x 94.1 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco EK-EVO 7.3600 · 12

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Elco EK-EVO 7.3600 G-E/BT3/KN parts

Which control devices fit Elco EK-EVO 7.3600 G-E/BT3/KN?

These fit Elco EK-EVO 7.3600 G-E/BT3/KN: Elco Burner Control Unit 65327036; Elco Combustion Manager 65327124. ↑

Which ignition cables and connectors fit Elco EK-EVO 7.3600 G-E/BT3/KN?

These fit Elco EK-EVO 7.3600 G-E/BT3/KN: Elco Ignition cable 65313731. ↑

Which motors fit Elco EK-EVO 7.3600 G-E/BT3/KN?

These fit Elco EK-EVO 7.3600 G-E/BT3/KN: Elco Electric Motor 13009653. ↑
