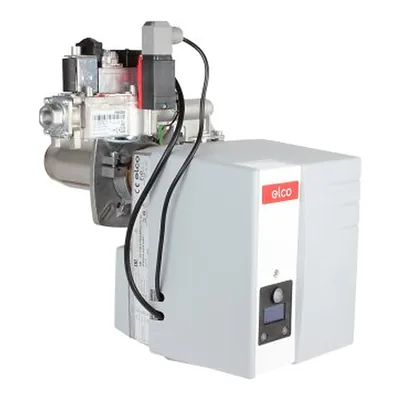

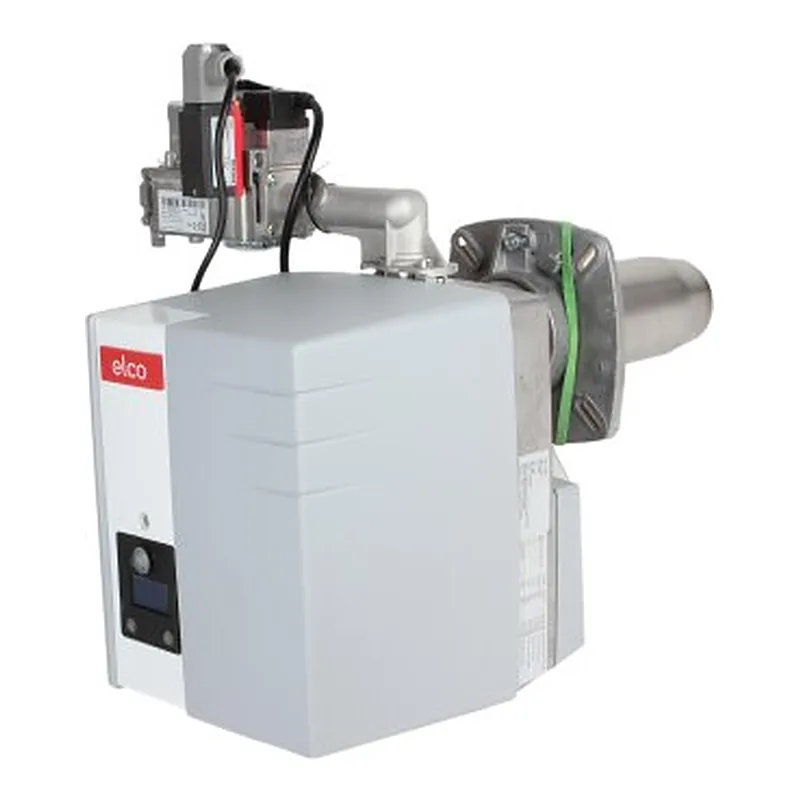

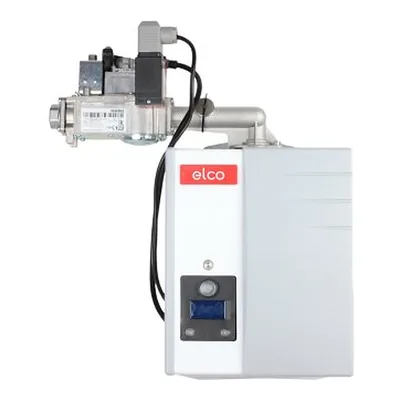

Elco VG 1.40 E KL - TC — spare parts
- Fuel
- Gas
- Output
- 15–41 kW
- Parts
- 12
- Factory code
- 3836506
- Series
- VG 1.40 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner

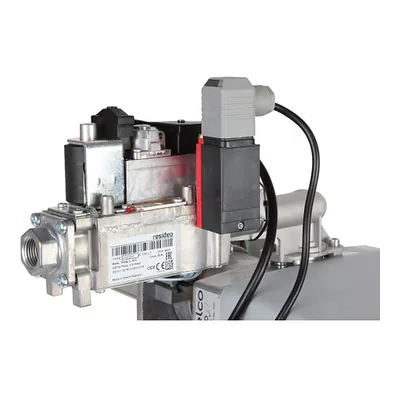

Gas valves for Elco VG 1.40 E KL - TC · 4
—on request
—on request
—on request
Burner components for Elco VG 1.40 E KL - TC · 2
—on request
—on request
Burner pipes, flanges & connections for Elco VG 1.40 E KL - TC · 2
—on request
—on request
Pressure switches for Elco VG 1.40 E KL - TC · 2
—on request
—on request
Boiler filters, gaskets & seals for Elco VG 1.40 E KL - TC · 1
—on request
Flues & air ducts for Elco VG 1.40 E KL - TC · 1
—on request
What is inside Elco VG 1.40 E KL - TC
Components named in the manufacturer's documentation.
- MB-DLE407 S20(no TC)
- MB-DLE407 S22(TC)
- TCG1xx
- VR4625
Specifications
FuelGas
Output15–41 kW
Gas connectionRp 1/2"
Firing stagesSingle-stage
Fan motor power85 W
Supply voltage220 V
Power consumption120 W
Net weight17 kg
Protection class (IP)IP21
Flame tube length200 mm
Flame tube diameter80 mm
Flame tube typeextended
Back pressure (combustion chamber)0–1.4 mbar
Gas consumption0–4.3 m³/h
Gas train pressure2–3 mbar
Noise level55 dB
Operating temperature-10–60 °C
Overall dimensions49.7 x 22.9 x 46.4 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco VG 1.40 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- VG 1.40
12 parts · 3832635 · 3836346 +3 - VG 1.40 E KL
12 parts · 3836547 - VG 1.40 E KL - TC
12 parts · 3836506 - VG 1.40 E KN
12 parts · 3836546 - VG 1.40 E KN - TC
12 parts · 3836346
Questions about Elco VG 1.40 E KL - TC parts
Which gas valves fit Elco VG 1.40 E KL - TC?
These fit Elco VG 1.40 E KL - TC: Elco Gas Solenoid Valve 13010542; Elco Gas Solenoid Valve 13018609; Elco Gas Valve Flange 65300244; Honeywell Gas Solenoid Valve VR4625A1037. ↑
Which burner components fit Elco VG 1.40 E KL - TC?
These fit Elco VG 1.40 E KL - TC: Elco Equalizing Disc 13007726; Elco Adjustment Rod 13010526. ↑
Which burner pipes, flanges & connections fit Elco VG 1.40 E KL - TC?
These fit Elco VG 1.40 E KL - TC: Elco Gas Line 13010533; Elco Burner Flange 13022754. ↑
Which pressure switches fit Elco VG 1.40 E KL - TC?
These fit Elco VG 1.40 E KL - TC: Ecoflam Pressure Switch Power Cable 65300235; Elco Pressure Switch Power Cable 13011100. ↑
Which boiler filters, gaskets & seals fit Elco VG 1.40 E KL - TC?
These fit Elco VG 1.40 E KL - TC: Elco Flange Gasket 13010501. ↑
Which flues & air ducts fit Elco VG 1.40 E KL - TC?
These fit Elco VG 1.40 E KL - TC: Elco Fire Tube 13007732. ↑
