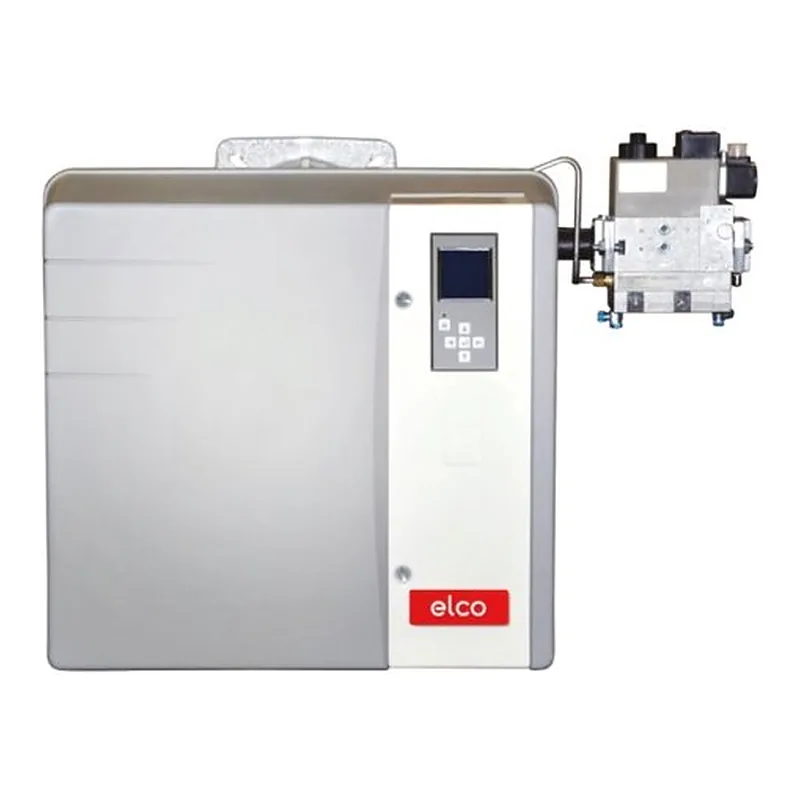

Elco VG 5.1200 DP KM d338 — gas burner, photo 1

Elco VG 5.1200 DP KM d338 — spare parts

Fuel
Gas
Output
250–1160 kW
Parts
1
Factory code
3833668

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco VG 5.1200 DP KM d338 · 1

What is inside Elco VG 5.1200 DP KM d338

Components named in the manufacturer's documentation.

  • MB-VE407
  • MB-VEF412
  • MB-VEF420
  • STE4,5 B0
  • TCG 5xx
  • VGD20
  • VGD40.065

Specifications

FuelGas
Output250–1160 kW
Gas connectionRp 2"
Fan motor power1500 W
Supply voltage220 V
Power consumption2052 W
Net weight50 kg
Protection class (IP)IP21
Flame tube length325 mm
Flame tube diameter170 mm
Flame tube typestandard
Back pressure (combustion chamber)0–9 mbar
Gas consumption19.3–115.8 m³/h
Gas train pressure56–136 mbar
Noise level77 dB
Operating temperature-10–60 °C
Overall dimensions107.7 x 58.1 x 54.9 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco VG 5.1200 · 129

Parts often differ between versions of one series: pick the version named on your rating plate.

All 129 versions

Questions about Elco VG 5.1200 DP KM d338 parts

Which burner components fit Elco VG 5.1200 DP KM d338?

These fit Elco VG 5.1200 DP KM d338: Elco Gas Ramp 3833655. ↑
