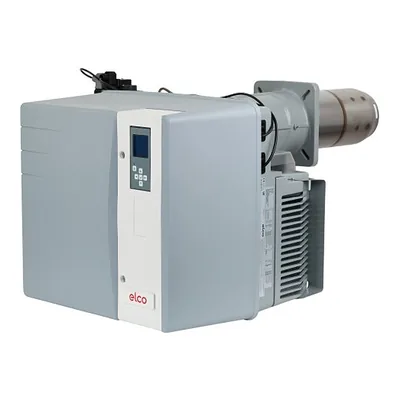

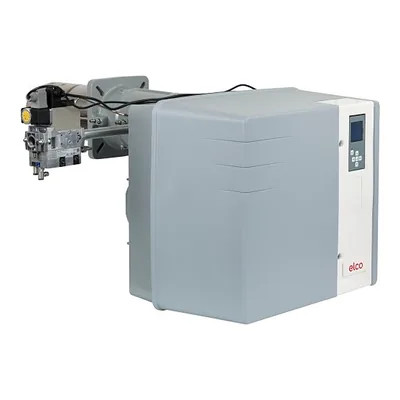

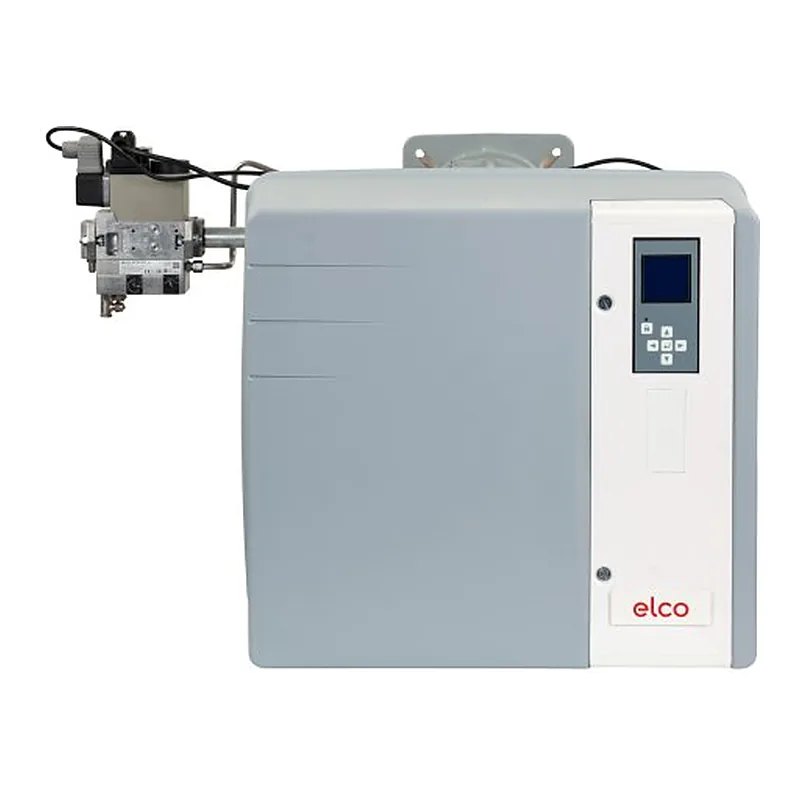

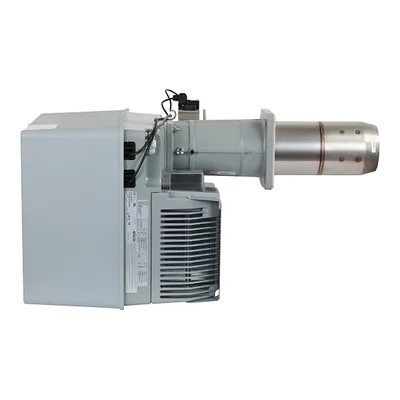

Elco VG 5.950 DP R KM — gas burner, photo 1

Elco VG 5.950 DP R KM — spare parts

Fuel
Gas
Output
150–1000 kW
Parts
12
Factory code
3835376

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco VG 5.950 DP R KM · 6

Wiring, cables & electrical components for Elco VG 5.950 DP R KM · 2

Boiler pipes, flanges & connections for Elco VG 5.950 DP R KM · 1

Burner pipes, flanges & connections for Elco VG 5.950 DP R KM · 1

Gas valves for Elco VG 5.950 DP R KM · 1

Impellers for Elco VG 5.950 DP R KM · 1

What is inside Elco VG 5.950 DP R KM

Components named in the manufacturer's documentation.

  • MB-VE407
  • MB-VEF412
  • MB-VEF420
  • STE4,5 B0
  • TCG 5xx
  • VGD20
  • VGD40.065

Specifications

FuelGas
Output150–1000 kW
Gas connectionRp 1"
Fan motor power1500 W
Supply voltage220 V
Power consumption1884 W
Net weight88 kg
Protection class (IP)IP21
Flame tube length325 mm
Flame tube diameter170 mm
Flame tube typestandard
Back pressure (combustion chamber)0–9 mbar
Gas consumption16.4–91.8 m³/h
Gas train pressure87–214 mbar
Noise level77 dB
Operating temperature-10–60 °C
Overall dimensions107.7 x 58.1 x 54.9 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco VG 5.950 · 141

Parts often differ between versions of one series: pick the version named on your rating plate.

All 141 versions

Questions about Elco VG 5.950 DP R KM parts

Which burner components fit Elco VG 5.950 DP R KM?

These fit Elco VG 5.950 DP R KM: Ecoflam Housing Fixing Screw 65300519; Elco Adjustment Rod 13009637; Elco Adjustment Rod 13009638; Elco Air Pressure Nipple 13009651; Elco Fixing bracket 13010054; Elco Gas Flow Stabilizer 13011367. ↑

Which wiring, cables & electrical components fit Elco VG 5.950 DP R KM?

These fit Elco VG 5.950 DP R KM: Elco Minicontactor 13009778; Elco Fuse Holder 13016457. ↑

Which boiler pipes, flanges & connections fit Elco VG 5.950 DP R KM?

These fit Elco VG 5.950 DP R KM: Elco Pressure Measurement Nipple 13009722. ↑

Which burner pipes, flanges & connections fit Elco VG 5.950 DP R KM?

These fit Elco VG 5.950 DP R KM: Ecoflam Gas Valve Flange 13010074. ↑

Which gas valves fit Elco VG 5.950 DP R KM?

These fit Elco VG 5.950 DP R KM: Elco Gas Shut-off Valve 13010061. ↑

Which impellers fit Elco VG 5.950 DP R KM?

These fit Elco VG 5.950 DP R KM: Elco Fan Impeller 13009649. ↑
