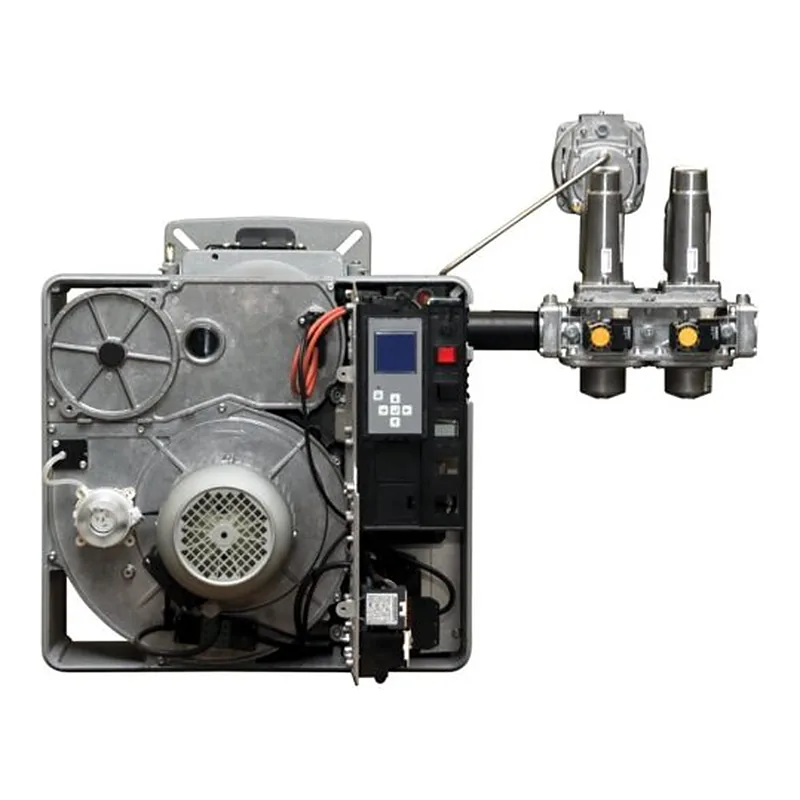

Elco VG 6.1600 DP R KN s316 — gas burner, photo 1

Elco VG 6.1600 DP R KN s316 — spare parts

Fuel
Gas
Output
200–1700 kW
Parts
1
Factory code
3834801

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco VG 6.1600 DP R KN s316 · 1

What is inside Elco VG 6.1600 DP R KN s316

Components named in the manufacturer's documentation.

  • MB-VE412
  • MB-VEF420
  • STE 4,5 Q3
  • TCG 5xx
  • VGD20
  • VGD40.065
  • VGD40.080

Specifications

FuelGas
Output200–1700 kW
Gas connectionDN 65
Fan motor power2200 W
Supply voltage220 V
Power consumption2500 W
Net weight127 kg
Protection class (IP)IP21
Flame tube length360 mm
Flame tube diameter227 mm
Flame tube typeshort
Back pressure (combustion chamber)0–12 mbar
Gas consumption87–164.3 m³/h
Gas train pressure5–20 mbar
Noise level77 dB
Operating temperature-10–60 °C
Overall dimensions141 x 59.2 x 55.3 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco VG 6.1600 · 102

Parts often differ between versions of one series: pick the version named on your rating plate.

All 102 versions

Questions about Elco VG 6.1600 DP R KN s316 parts

Which burner components fit Elco VG 6.1600 DP R KN s316?

These fit Elco VG 6.1600 DP R KN s316: Elco Gas Ramp 3833489. ↑
