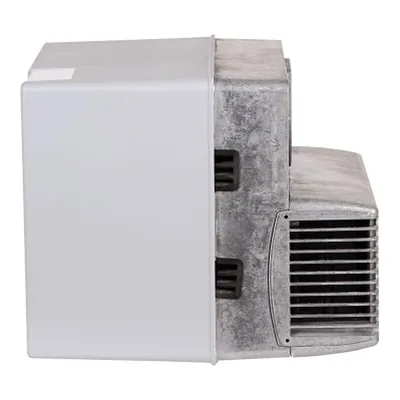

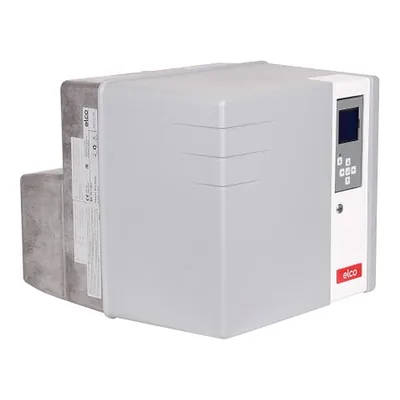

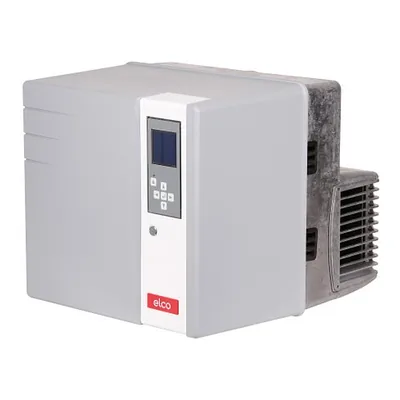

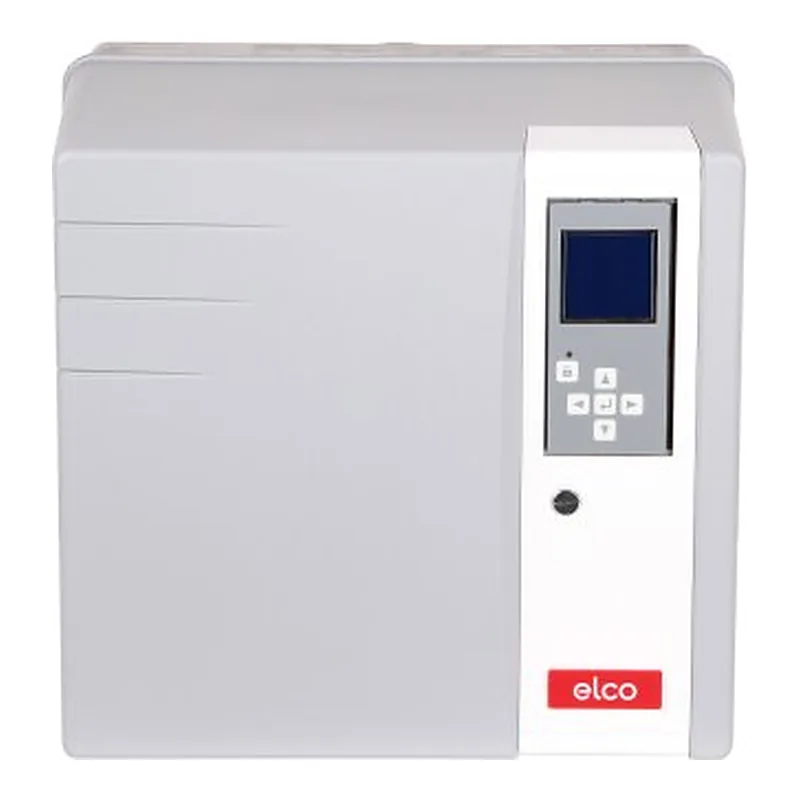

Elco VGL 3.290 D — spare parts
- Output
- 95–290 kW
- Parts
- 15
- Factory code
- 3834444
- Series
- VGL 3.290 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VGL 3.290 D · 3
—on request
—on request
Flame sensors for Elco VGL 3.290 D · 2
—on request
—on request
Wiring, cables & electrical components for Elco VGL 3.290 D · 2
—on request
—on request
Actuators for Elco VGL 3.290 D · 1
—on request
Boiler insulation for Elco VGL 3.290 D · 1
—on request
Burners for Elco VGL 3.290 D · 1
—on request
Control devices for Elco VGL 3.290 D · 1
—on request
Control panels and displays for Elco VGL 3.290 D · 1
—on request
Gas nozzles & injectors for Elco VGL 3.290 D · 1
—on request
Pressure switches for Elco VGL 3.290 D · 1
—on request
Sensors and switches for Elco VGL 3.290 D · 1
—on request
What is inside Elco VGL 3.290 D
Components named in the manufacturer's documentation.
- ACTUATOR STE 4,5 BO37/6 65300527
- AIR PRESSURE SWITCH 0,5-5MBAR 13020502
- CONTROL UNIT TCG 211.00 65300880
- NOZZLE DAN 4,00GPH 60° S 13018355
- 101
- 102
- AT2 45D
- GAS PRESSURE SWITCH GW 150 A5 DIN 13010078
- GAS VALVE MBZRDLE407 B01 S50 RP3/4”GW150 13011112
- GAS VALVE MBZRDLE412 B01 S20 RP1”1/4 13012275
- GAS VALVE MBZRDLE420 B01 S20 RP2” 65300664
- IGNITION ELECTRODE 13007907
- IGNITION TRANSFO.EBI 2X7,5 230V+EARTH C. 13009663
- IRD1020
- MB-ZRDLE407
- MB-ZRDLE412
- MB-ZRDLE420
- MOTOR 0,3KW230V D12,7 65300528
- NOZZLE DAN 3,00GPH 60° S 13016094
- NOZZLE DAN 3,50GPH 60° S 13016093
- NOZZLE DAN 4,50GPH 60° S 13018353
- NOZZLE DAN 5,00GPH 60° S 13018354
- PUMP AT2 45 D 9538 6P 0500 13012002
- STE 4,5 B0
Specifications
Output95–290 kW
Firing stagesTwo-stage
Fan motor power300 W
Supply voltage220 V
Power consumption512 W
Net weight36 kg
Protection class (IP)IP41
Back pressure (combustion chamber)0–3.3 mbar
Gas consumption9.2–28 m³/h
Noise level67 dB
Operating temperature-10–60 °C
Overall dimensions57.6 x 40.6 x 37.9 cm
Delivery scopewithout combustion head, without gas train
Other versions of this seriesElco VGL 3.290 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- VGL 3.290 D
15 parts · 3834444 - VGL 3.290 D KL d25
15 parts · 3834462 - VGL 3.290 D KL d26
15 parts · 3834460 - VGL 3.290 D KN d25
15 parts · 3834461 - VGL 3.290 D KN d26
15 parts · 3834459
Questions about Elco VGL 3.290 D parts
Which burner components fit Elco VGL 3.290 D?
These fit Elco VGL 3.290 D: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300525; Elco Air Pressure Plug 65300567. ↑
Which flame sensors fit Elco VGL 3.290 D?
These fit Elco VGL 3.290 D: Elco Flame sensor flange 13010461; Elco Flame sensor cable 65300210. ↑
Which wiring, cables & electrical components fit Elco VGL 3.290 D?
These fit Elco VGL 3.290 D: Ecoflam Capacitor 8uF 65300577; Finder Block 13017720. ↑
Which actuators fit Elco VGL 3.290 D?
These fit Elco VGL 3.290 D: Elco Actuator 65300527. ↑
Which boiler insulation fit Elco VGL 3.290 D?
These fit Elco VGL 3.290 D: Ecoflam Soundproofing 65300518. ↑
Which burners fit Elco VGL 3.290 D?
These fit Elco VGL 3.290 D: Ecoflam Burner Housing 65300622. ↑
