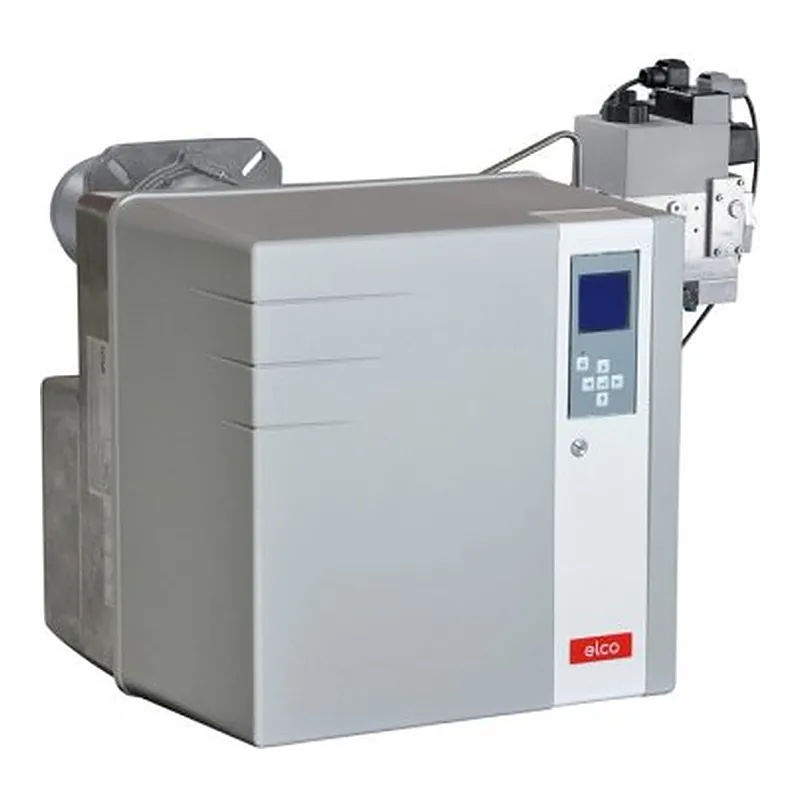

Elco VGL 3.360 D KL d25 — spare parts
- Output
- 120–360 kW
- Parts
- 15
- Factory code
- 3834466
- Series
- VGL 3.360 · 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VGL 3.360 D KL d25 · 5
—on request
—on request
—on request
—on request
Actuators for Elco VGL 3.360 D KL d25 · 1
—on request
Boiler insulation for Elco VGL 3.360 D KL d25 · 1
—on request
Boiler pipes, flanges & connections for Elco VGL 3.360 D KL d25 · 1
—on request
Burners for Elco VGL 3.360 D KL d25 · 1
—on request
Control devices for Elco VGL 3.360 D KL d25 · 1
—on request
Flame sensors for Elco VGL 3.360 D KL d25 · 1
—on request
Gas nozzles & injectors for Elco VGL 3.360 D KL d25 · 1
—on request
Gas valves & coils for Elco VGL 3.360 D KL d25 · 1
—on request
Pressure switches for Elco VGL 3.360 D KL d25 · 1
—on request
Wiring, cables & electrical components for Elco VGL 3.360 D KL d25 · 1
—on request
What is inside Elco VGL 3.360 D KL d25
Components named in the manufacturer's documentation.
- ACTUATOR STE 4,5 BO37/6 65300527
- AIR PRESSURE SWITCH 0,5-5MBAR 13020502
- CONTROL UNIT TCG 211.00 65300880
- 101
- 102
- AT2 45D
- GAS PRESSURE SWITCH GW 150 A5 DIN 13010078
- GAS VALVE MBZRDLE407 B01 S50 RP3/4”GW150 13011112
- GAS VALVE MBZRDLE412 B01 S20 RP1”1/4 13012275
- GAS VALVE MBZRDLE420 B01 S20 RP2” 65300664
- IGNITION ELECTRODE 13007907
- IGNITION TRANSFO.EBI 2X7,5 230V+EARTH C. 13009663
- IRD1020
- MB-ZRDLE407
- MB-ZRDLE412
- MB-ZRDLE420
- MOTOR 0,3KW230V D12,7 65300528
- NOZZLE DAN 3,00GPH 60° S 13016094
- NOZZLE DAN 3,50GPH 60° S 13016093
- NOZZLE DAN 4,00GPH 60° S 13018355
- NOZZLE DAN 4,50GPH 60° S 13018353
- NOZZLE DAN 5,00GPH 60° S 13018354
- PUMP AT2 45 D 9538 6P 0500 13012002
- STE 4,5 B0
Specifications
Output120–360 kW
Gas connectionRp 1 1/4"
Firing stagesTwo-stage
Fan motor power300 W
Supply voltage220 V
Power consumption512 W
Net weight36 kg
Protection class (IP)IP41
Flame tube length320 mm
Flame tube diameter130 mm
Flame tube typeextended
Back pressure (combustion chamber)0–4 mbar
Gas consumption11.6–34.8 m³/h
Gas train pressure9–21 mbar
Noise level69 dB
Operating temperature-10–60 °C
Overall dimensions89.6 x 40.6 x 37.9 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco VGL 3.360 · 7
Parts often differ between versions of one series: pick the version named on your rating plate.
- VGL 3.360 D
15 parts · 3834651 - VGL 3.360 D KL d25
15 parts · 3834466 - VGL 3.360 D KL d26
15 parts · 3834464 - VGL 3.360 D KL d214
15 parts · 3834468 - VGL 3.360 D KN d25
15 parts · 3834465 - VGL 3.360 D KN d26
15 parts · 3834463 - VGL 3.360 D KN d214
15 parts · 3834467
Questions about Elco VGL 3.360 D KL d25 parts
Which burner components fit Elco VGL 3.360 D KL d25?
These fit Elco VGL 3.360 D KL d25: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300525; Ecoflam Fixing Screw 65300557; Elco Gas Flow Stabilizer 13011367; Elco Screws and Nuts 13016814. ↑
Which actuators fit Elco VGL 3.360 D KL d25?
These fit Elco VGL 3.360 D KL d25: Elco Actuator 65300527. ↑
Which boiler insulation fit Elco VGL 3.360 D KL d25?
These fit Elco VGL 3.360 D KL d25: Ecoflam Soundproofing 65300518. ↑
Which boiler pipes, flanges & connections fit Elco VGL 3.360 D KL d25?
These fit Elco VGL 3.360 D KL d25: Elco Pressure Measurement Nipple 13009722. ↑
Which burners fit Elco VGL 3.360 D KL d25?
These fit Elco VGL 3.360 D KL d25: Ecoflam Burner Housing 65300622. ↑
Which control devices fit Elco VGL 3.360 D KL d25?
These fit Elco VGL 3.360 D KL d25: Elco Combustion Manager TCG-211.00 65300880. ↑
