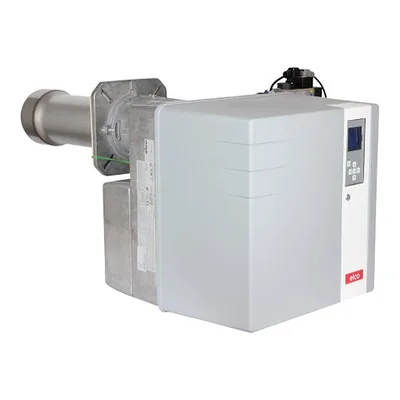

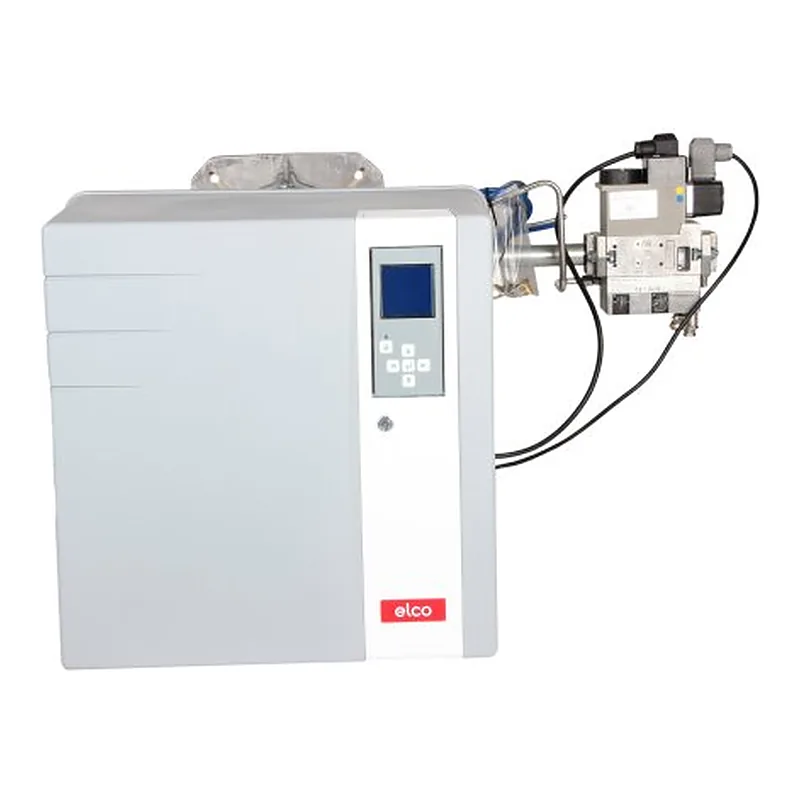

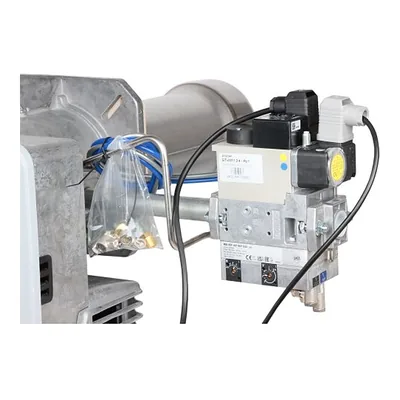

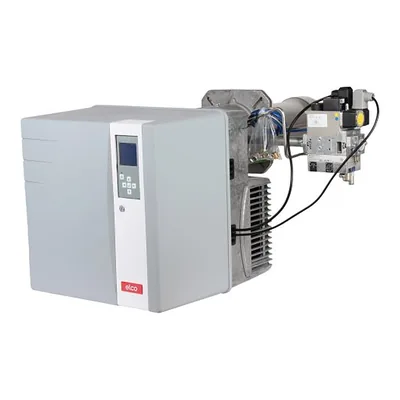

Elco VGL 4.610 DP KL d311 — spare parts
- Output
- 190–610 kW
- Parts
- 12
- Factory code
- 3834579
- Series
- VGL 4.610 · 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VGL 4.610 DP KL d311 · 4
—on request
—on request
—on request
Cables for Elco VGL 4.610 DP KL d311 · 2
—on request
—on request
Boiler pipes, flanges & connections for Elco VGL 4.610 DP KL d311 · 1
—on request
Burner pipes, flanges & connections for Elco VGL 4.610 DP KL d311 · 1
—on request
Flame sensors for Elco VGL 4.610 DP KL d311 · 1
—on request
Gas filters for Elco VGL 4.610 DP KL d311 · 1
—on request
Oil pumps for Elco VGL 4.610 DP KL d311 · 1
—on request
Pressure switches for Elco VGL 4.610 DP KL d311 · 1
—on request
What is inside Elco VGL 4.610 DP KL d311
Components named in the manufacturer's documentation.
- IRD1020
- MB-VEF407
- MB-VEF412
- MB-VEF420
- QRB1
- STE 4,5 B0
- TCG 5xx / TCH 2xx
Specifications
Output190–610 kW
Gas connectionRp 1"
Fan motor power750 W
Supply voltage220 V
Power consumption943 W
Net weight56 kg
Protection class (IP)IP41
Flame tube length387 mm
Flame tube diameter150 mm
Flame tube typeextended
Back pressure (combustion chamber)0–5.45 mbar
Gas consumption18.4–59 m³/h
Gas train pressure51–204 mbar
Noise level71 dB
Operating temperature-10–60 °C
Overall dimensions102.7 x 46.5 x 47.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco VGL 4.610 · 7
Parts often differ between versions of one series: pick the version named on your rating plate.
- VGL 4.610 DP
11 parts · 3834554 - VGL 4.610 DP KL d311
12 parts · 3834579 - VGL 4.610 DP KL d312
12 parts · 3834581 - VGL 4.610 DP KL d327
12 parts · 3834583 - VGL 4.610 DP KN d311
12 parts · 3834578 - VGL 4.610 DP KN d312
12 parts · 3834580 - VGL 4.610 DP KN d327
12 parts · 3834582
Questions about Elco VGL 4.610 DP KL d311 parts
Which burner components fit Elco VGL 4.610 DP KL d311?
These fit Elco VGL 4.610 DP KL d311: Ecoflam Housing Fixing Screw 65300519; Ecoflam Fixing Screw 65300557; Ecoflam Intake Air Guide 65300809; Elco Gas Flow Stabilizer 13011367. ↑
Which cables fit Elco VGL 4.610 DP KL d311?
These fit Elco VGL 4.610 DP KL d311: Ecoflam Power Cable 65300570; Elco Transformer Power Cable 65301231. ↑
Which boiler pipes, flanges & connections fit Elco VGL 4.610 DP KL d311?
These fit Elco VGL 4.610 DP KL d311: Elco Pressure Measurement Nipple 13009722. ↑
Which burner pipes, flanges & connections fit Elco VGL 4.610 DP KL d311?
These fit Elco VGL 4.610 DP KL d311: Ecoflam Gas Valve Flange 13010074. ↑
Which flame sensors fit Elco VGL 4.610 DP KL d311?
These fit Elco VGL 4.610 DP KL d311: Elco Flame sensor cable 65300210. ↑
Which gas filters fit Elco VGL 4.610 DP KL d311?
These fit Elco VGL 4.610 DP KL d311: Elco Filter Element 65326948. ↑
