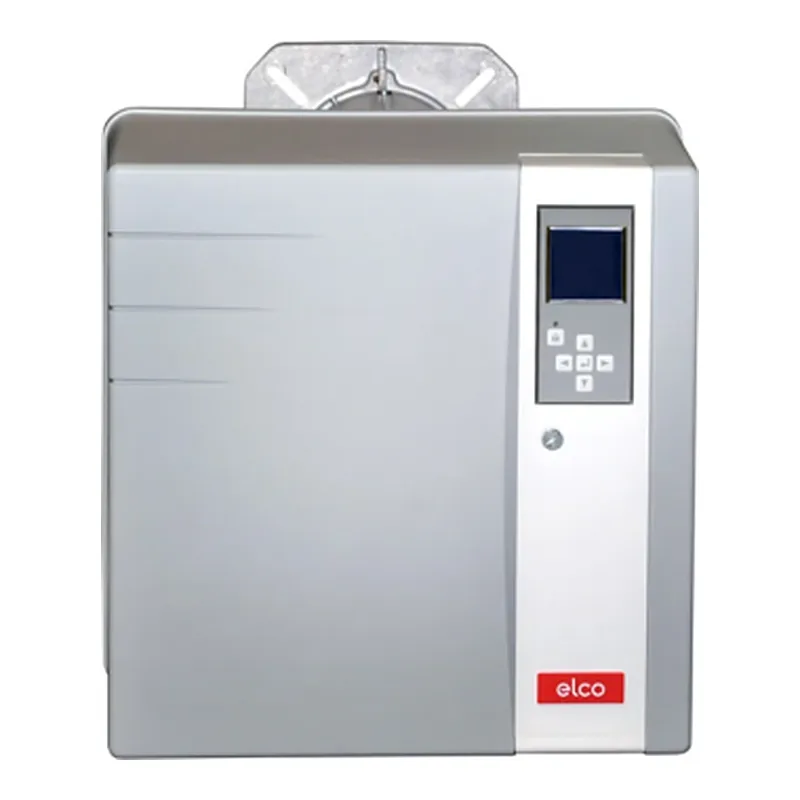

Elco VGL 5.1000 M — spare parts
- Output
- 240–1000 kW
- Parts
- 12
- Factory code
- 3836821
- Series
- VGL 5.1000 · 30
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VGL 5.1000 M · 3
—on request
—on request
Cables for Elco VGL 5.1000 M · 2
—on request
—on request
Oil pumps for Elco VGL 5.1000 M · 2
—on request
—on request
Boiler filters, gaskets & seals for Elco VGL 5.1000 M · 1
—on request
Control panels and displays for Elco VGL 5.1000 M · 1
—on request
Impellers for Elco VGL 5.1000 M · 1
—on request
Pressure switches for Elco VGL 5.1000 M · 1
—on request
Wiring, cables & electrical components for Elco VGL 5.1000 M · 1
—on request
What is inside Elco VGL 5.1000 M
Components named in the manufacturer's documentation.
- ACS310
- AT2 95 C 9585
- BT3xx
- FFS08
- MBC-1200
- MBC-1900
- MBC-300
- MBC-700
- QRA2
- STE 4,5 B0
- STE4,5 Q3
Specifications
Output240–1000 kW
Fan motor power1500 W
Supply voltage220 V
Power consumption2200 W
Net weight60 kg
Protection class (IP)IP41
Back pressure (combustion chamber)0–9 mbar
Gas consumption23.2–96.6 m³/h
Noise level81 dB
Operating temperature-10–60 °C
Overall dimensions75.2 x 58.1 x 54.9 cm
Delivery scopewithout combustion head, without gas train
Other versions of this seriesElco VGL 5.1000 · 30
Parts often differ between versions of one series: pick the version named on your rating plate.
- VGL 5.1000 M
12 parts · 3836821 - VGL 5.1000 M GT-S43
12 parts - VGL 5.1000 M GT-S43 KM
12 parts - VGL 5.1000 M KL
12 parts · 3836662 - VGL 5.1000 M KL d415
12 parts · 3836668 - VGL 5.1000 M KL d420
12 parts · 3836665 - VGL 5.1000 M KL d422
12 parts · 3836659 - VGL 5.1000 M KL s42
12 parts · 3836656 - VGL 5.1000 M KM
17 parts · 3836658 · 3836661 - VGL 5.1000 M KM d415
12 parts · 3836667 - VGL 5.1000 M KM d420
12 parts · 3836664 - VGL 5.1000 M KM s42
12 parts · 3836655
All 30 versions
- VGL 5.1000 M
12 parts · 3836821 - VGL 5.1000 M GT-S43
12 parts - VGL 5.1000 M GT-S43 KM
12 parts - VGL 5.1000 M KL
12 parts · 3836662 - VGL 5.1000 M KL d415
12 parts · 3836668 - VGL 5.1000 M KL d420
12 parts · 3836665 - VGL 5.1000 M KL d422
12 parts · 3836659 - VGL 5.1000 M KL s42
12 parts · 3836656 - VGL 5.1000 M KM
17 parts · 3836658 · 3836661 - VGL 5.1000 M KM d415
12 parts · 3836667 - VGL 5.1000 M KM d420
12 parts · 3836664 - VGL 5.1000 M KM s42
12 parts · 3836655 - VGL 5.1000 M KN
17 parts · 3836657 · 3836660 - VGL 5.1000 M KN d415
12 parts · 3836666 - VGL 5.1000 M KN d420
12 parts · 3836663 - VGL 5.1000 M KN s42
12 parts · 3836654 - VGL 5.1000 MV
12 parts · 3836825 - VGL 5.1000 MV KL
12 parts · 3836707 - VGL 5.1000 MV KL d415
12 parts · 3836716 - VGL 5.1000 MV KL d420
12 parts · 3836713 - VGL 5.1000 MV KL d422
12 parts · 3836710 - VGL 5.1000 MV KL s42
12 parts · 3836704 - VGL 5.1000 MV KM
16 parts · 3836706 · 3836709 - VGL 5.1000 MV KM d415
12 parts · 3836715 - VGL 5.1000 MV KM d420
12 parts · 3836712 - VGL 5.1000 MV KM s42
12 parts · 3836703 - VGL 5.1000 MV KN
16 parts · 3836705 · 3836708 - VGL 5.1000 MV KN d415
12 parts · 3836714 - VGL 5.1000 MV KN d420
12 parts · 3836711 - VGL 5.1000 MV KN s42
12 parts · 3836702
Questions about Elco VGL 5.1000 M parts
Which burner components fit Elco VGL 5.1000 M?
These fit Elco VGL 5.1000 M: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65326224; Elco Air Pressure Nipple 13009651. ↑
Which cables fit Elco VGL 5.1000 M?
These fit Elco VGL 5.1000 M: Elco Cable with Plug 65301062; Elco CABLE SOL.VALVE+PLUG 3P 3X0,75 L1600 65320955. ↑
Which oil pumps fit Elco VGL 5.1000 M?
These fit Elco VGL 5.1000 M: Elco Pump Repair Kit 13011007; Elco Oil pump 13019015. ↑
Which boiler filters, gaskets & seals fit Elco VGL 5.1000 M?
These fit Elco VGL 5.1000 M: Elco Cover Gasket 13010002. ↑
Which control panels and displays fit Elco VGL 5.1000 M?
These fit Elco VGL 5.1000 M: Ecoflam Control Panel Frame 65300992. ↑
Which impellers fit Elco VGL 5.1000 M?
These fit Elco VGL 5.1000 M: Elco Fan Impeller 13009649. ↑
