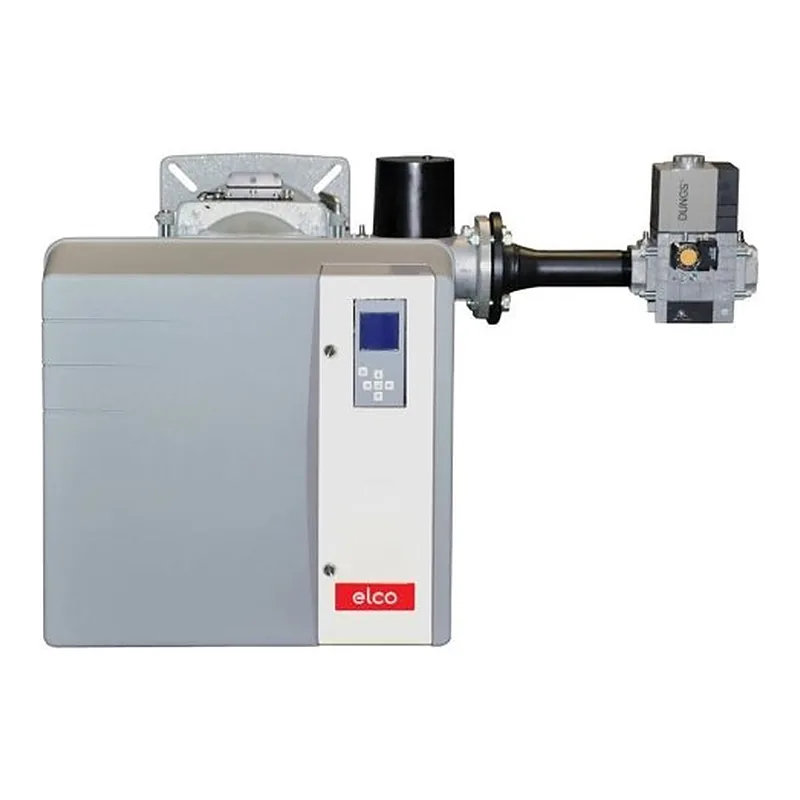

Elco VGL 6.2100 MV KN s42 — spare parts
- Output
- 480–2050 kW
- Parts
- 12
- Factory code
- 3836732
- Series
- VGL 6.2100 · 26
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VGL 6.2100 MV KN s42 · 5
—on request
—on request
—on request
—on request
Boiler filters, gaskets & seals for Elco VGL 6.2100 MV KN s42 · 2
—on request
—on request
Boiler pipes, flanges & connections for Elco VGL 6.2100 MV KN s42 · 1
—on request
Burner pipes, flanges & connections for Elco VGL 6.2100 MV KN s42 · 1
—on request
Control boxes for Elco VGL 6.2100 MV KN s42 · 1
—on request
Ionization & ignition electrodes for Elco VGL 6.2100 MV KN s42 · 1
—on request
Oil filters, coils, tubes & hoses for Elco VGL 6.2100 MV KN s42 · 1
—on request
What is inside Elco VGL 6.2100 MV KN s42
Components named in the manufacturer's documentation.
- ACS310
- AJ6 CC1004 3P
- BT3xx
- FFS08
- MBC1200
- MBC1900
- MBC700
- QRA2
- STE 4,5 Q3
- VGD40.065
Specifications
Output480–2050 kW
Fan motor power2700 W
Supply voltage220 V
Power consumption3400 W
Net weight104 kg
Protection class (IP)IP41
Flame tube length270 mm
Flame tube diameter227 mm
Flame tube typeshort
Back pressure (combustion chamber)0–12 mbar
Gas consumption46.4–198.1 m³/h
Gas train pressure11–34 mbar
Noise level79 dB
Operating temperature-10–60 °C
Overall dimensions132 x 59.2 x 55.3 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesElco VGL 6.2100 · 26
Parts often differ between versions of one series: pick the version named on your rating plate.
- VGL 6.2100 MV KL d420
12 parts · 3836740 - VGL 6.2100 MV KL d421
12 parts · 3836737 - VGL 6.2100 MV KL d422
12 parts · 3836731 - VGL 6.2100 MV KL s42
12 parts · 3836734 - VGL 6.2100 MV KM d420
12 parts · 3836739 - VGL 6.2100 MV KM d421
12 parts · 3836736 - VGL 6.2100 MV KM d422
12 parts · 3836730 - VGL 6.2100 MV KM s42
12 parts · 3836733 - VGL 6.2100 MV KN
12 parts · 3836735 - VGL 6.2100 MV KN d420
12 parts · 3836738 - VGL 6.2100 MV KN d422
12 parts · 3836729 - VGL 6.2100 MV KN s42
12 parts · 3836732
All 26 versions
- VGL 6.2100 M
12 parts · 3836823 - VGL 6.2100 M KL d420
12 parts · 3836692 - VGL 6.2100 M KL d421
12 parts · 3836689 - VGL 6.2100 M KL d422
12 parts · 3836686 - VGL 6.2100 M KL s42
12 parts · 3836683 - VGL 6.2100 M KM d420
12 parts · 3836691 - VGL 6.2100 M KM d421
12 parts · 3836688 - VGL 6.2100 M KM d422
12 parts · 3836685 - VGL 6.2100 M KM s42
12 parts · 3836682 - VGL 6.2100 M KN d420
12 parts · 3836690 - VGL 6.2100 M KN d421
12 parts · 3836687 - VGL 6.2100 M KN d422
12 parts · 3836684 - VGL 6.2100 M KN s42
12 parts · 3836681 - VGL 6.2100 MV
12 parts · 3836827 - VGL 6.2100 MV KL d420
12 parts · 3836740 - VGL 6.2100 MV KL d421
12 parts · 3836737 - VGL 6.2100 MV KL d422
12 parts · 3836731 - VGL 6.2100 MV KL s42
12 parts · 3836734 - VGL 6.2100 MV KM d420
12 parts · 3836739 - VGL 6.2100 MV KM d421
12 parts · 3836736 - VGL 6.2100 MV KM d422
12 parts · 3836730 - VGL 6.2100 MV KM s42
12 parts · 3836733 - VGL 6.2100 MV KN
12 parts · 3836735 - VGL 6.2100 MV KN d420
12 parts · 3836738 - VGL 6.2100 MV KN d422
12 parts · 3836729 - VGL 6.2100 MV KN s42
12 parts · 3836732
Questions about Elco VGL 6.2100 MV KN s42 parts
Which burner components fit Elco VGL 6.2100 MV KN s42?
These fit Elco VGL 6.2100 MV KN s42: Ecoflam Housing Fixing Screw 65300519; Elco Fixing bracket 13009725; Elco Air Pressure Fitting 13009738; Elco Air Intake Guide 13009748; Elco Fixing Screw M4 13010049. ↑
Which boiler filters, gaskets & seals fit Elco VGL 6.2100 MV KN s42?
These fit Elco VGL 6.2100 MV KN s42: Elco Flange Gasket 13009719; Elco Ring Gasket 13009731. ↑
Which boiler pipes, flanges & connections fit Elco VGL 6.2100 MV KN s42?
These fit Elco VGL 6.2100 MV KN s42: Elco Pressure Measurement Nipple 13009722. ↑
Which burner pipes, flanges & connections fit Elco VGL 6.2100 MV KN s42?
These fit Elco VGL 6.2100 MV KN s42: Elco Transition Nipple M16 - G1/4" 13014419. ↑
Which control boxes fit Elco VGL 6.2100 MV KN s42?
These fit Elco VGL 6.2100 MV KN s42: Elco Distribution Block 13009811. ↑
Which ionization & ignition electrodes fit Elco VGL 6.2100 MV KN s42?
These fit Elco VGL 6.2100 MV KN s42: Elco Electrode Holder Block 13010050. ↑
