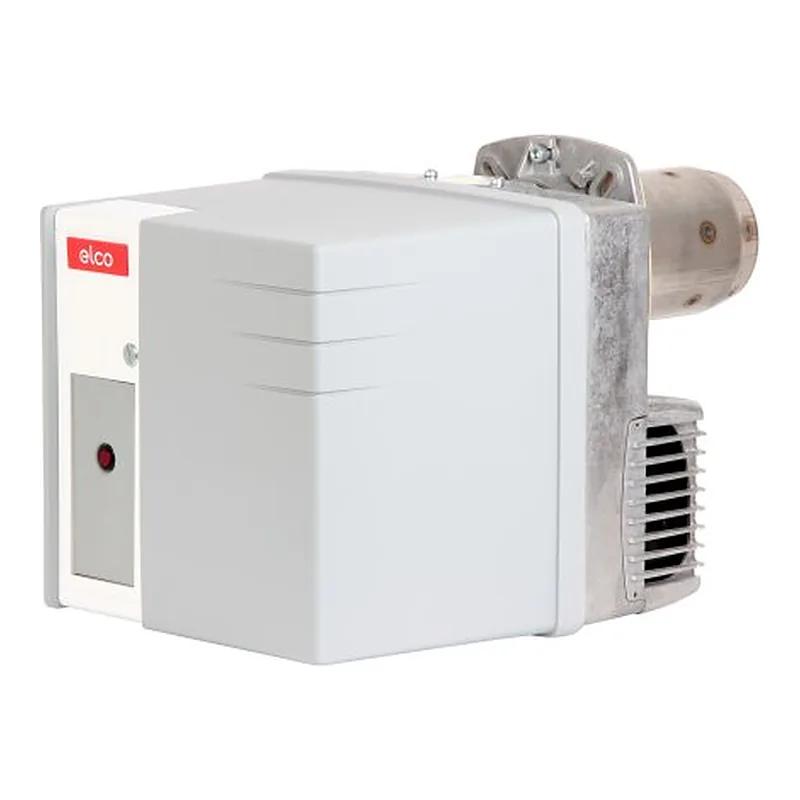

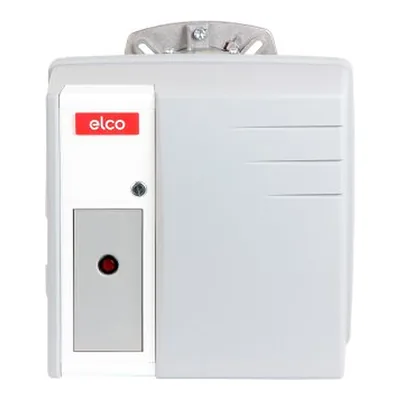

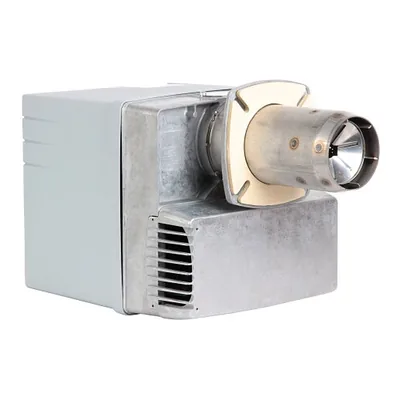

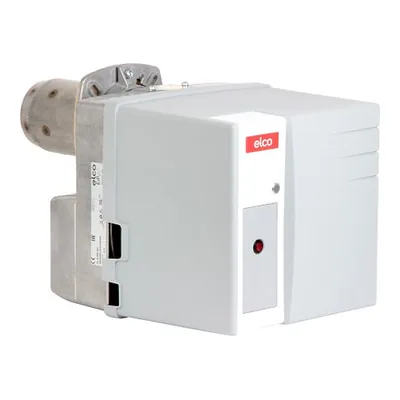

Elco VL 2.200 KN — spare parts
- Fuel
- Oil
- Output
- 130–200 kW
- Parts
- 11
- Factory code
- 3833540
- Series
- VL 2.200 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VL 2.200 KN · 4
—on request
—on request
—on request
Flame sensors for Elco VL 2.200 KN · 2
—on request
—on request
Blast tubes & combustion heads for Elco VL 2.200 KN · 1
—on request
Boiler insulation for Elco VL 2.200 KN · 1
—on request
Burner pipes, flanges & connections for Elco VL 2.200 KN · 1
—on request
Control panels and displays for Elco VL 2.200 KN · 1
—on request
Wiring, cables & electrical components for Elco VL 2.200 KN · 1
—on request
What is inside Elco VL 2.200 KN
Components named in the manufacturer's documentation.
- AS47D
- BFP21L3 R2
- EBI
- QRB1
- TCH 1xx
Specifications
FuelOil
Output130–200 kW
Firing stagesSingle-stage
Fan motor power130 W
Supply voltage220 V
Power consumption290 W
Net weight17 kg
Protection class (IP)IP21
Flame tube length230 mm
Flame tube diameter115 mm
Flame tube typeshort
Back pressure (combustion chamber)0–1.5 mbar
Noise level65 dB
Operating temperature-10–50 °C
Overall dimensions88.8 x 33.1 x 32.5 cm
Delivery scopewith combustion head
Other versions of this seriesElco VL 2.200 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- VL 2.200 KL
10 parts · 3833541 - VL 2.200 KN
11 parts · 3833540
Questions about Elco VL 2.200 KN parts
Which burner components fit Elco VL 2.200 KN?
These fit Elco VL 2.200 KN: Ecoflam Housing Fixing Screw 65300519; Elco Expansion Retainer 13017148; Elco Combustion Manager Holder 65300727; Elco Mesh Filter 65325685. ↑
Which flame sensors fit Elco VL 2.200 KN?
These fit Elco VL 2.200 KN: Ecoflam Flame sensor 65326635; Elco Flame sensor 65328028. ↑
Which blast tubes & combustion heads fit Elco VL 2.200 KN?
These fit Elco VL 2.200 KN: Elco Universal Blast Tube 13018148. ↑
Which boiler insulation fit Elco VL 2.200 KN?
These fit Elco VL 2.200 KN: Elco Soundproofing 13017369. ↑
Which burner pipes, flanges & connections fit Elco VL 2.200 KN?
These fit Elco VL 2.200 KN: Elco Copper Fuel Tube 13017379. ↑
Which control panels and displays fit Elco VL 2.200 KN?
These fit Elco VL 2.200 KN: Elco Control panel cover 13016951. ↑
