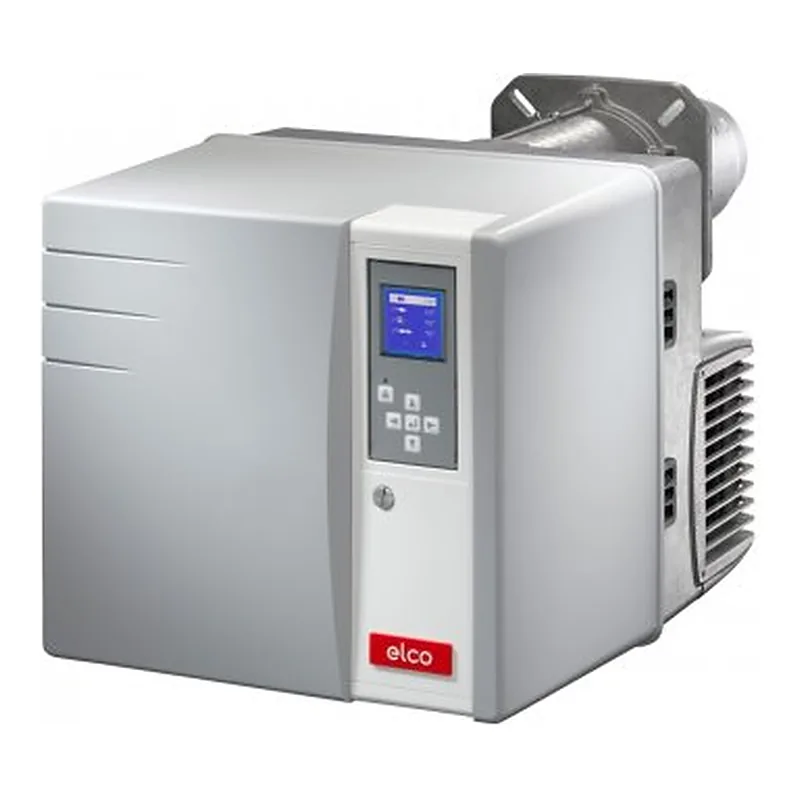

Elco VL 3.360 D KL — spare parts
- Fuel
- Oil
- Output
- 170–360 kW
- Parts
- 10
- Factory code
- 3833071
- Series
- VL 3.360 · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VL 3.360 D KL · 5
—on request
—on request
—on request
—on request
Burners for Elco VL 3.360 D KL · 2
—on request
—on request
Boiler insulation for Elco VL 3.360 D KL · 1
—on request
Control panels and displays for Elco VL 3.360 D KL · 1
—on request
Wiring, cables & electrical components for Elco VL 3.360 D KL · 1
—on request
What is inside Elco VL 3.360 D KL
Components named in the manufacturer's documentation.
- 1030 Трансформатор поджига Ignition transformer
- 1060 Сервопривод Actuator
- 1160 Электродвигатель Motor
- 1175 Жидкотопливный насос Oil pump
- 1501 Менеджер горения TCH 2xx
- 1520 Датчик пламени MZ 770 S
- 1920 Датчик пламени QRB1A
- 2040 Блок электродов поджига Ignition electrode
- AT2 45D
- EBI
- QRB1A
- STE 4,5
- TCH 2xx
- Danfoss 2400 Форсунка Danfoss
Specifications
FuelOil
Output170–360 kW
Firing stagesTwo-stage
Fan motor power300 W
Supply voltage220 V
Power consumption540 W
Net weight30 kg
Protection class (IP)IP21
Flame tube length320 mm
Flame tube diameter130 mm
Flame tube typeextended
Back pressure (combustion chamber)0–4 mbar
Noise level69 dB
Operating temperature-10–60 °C
Overall dimensions89.6 x 40.6 x 37 cm
Delivery scopewith combustion head
Other versions of this seriesElco VL 3.360 · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- VL 3.360 D
11 parts · 3832895 - VL 3.360 D KL
10 parts · 3833071 - VL 3.360 D KN
10 parts · 3833070
Questions about Elco VL 3.360 D KL parts
Which burner components fit Elco VL 3.360 D KL?
These fit Elco VL 3.360 D KL: Ecoflam Housing Fixing Screw 65300519; Ecoflam Intake Air Guide 65300525; Ecoflam Adjustment Rod 65300621; Elco Fixing Screws 13007804; Elco Equalizing Disc 13022283. ↑
Which burners fit Elco VL 3.360 D KL?

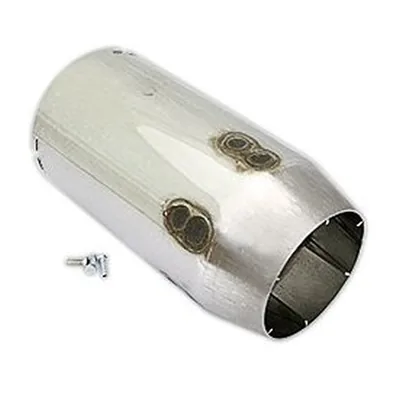

These fit Elco VL 3.360 D KL: Ecoflam Burner Flame Tube 65300508; Ecoflam Burner Housing 65300622. ↑
Which boiler insulation fit Elco VL 3.360 D KL?
These fit Elco VL 3.360 D KL: Ecoflam Soundproofing 65300518. ↑
Which control panels and displays fit Elco VL 3.360 D KL?
These fit Elco VL 3.360 D KL: Elco Burner Manager Holder 65300524. ↑
Which wiring, cables & electrical components fit Elco VL 3.360 D KL?
These fit Elco VL 3.360 D KL: Ecoflam Capacitor 8uF 65300577. ↑
