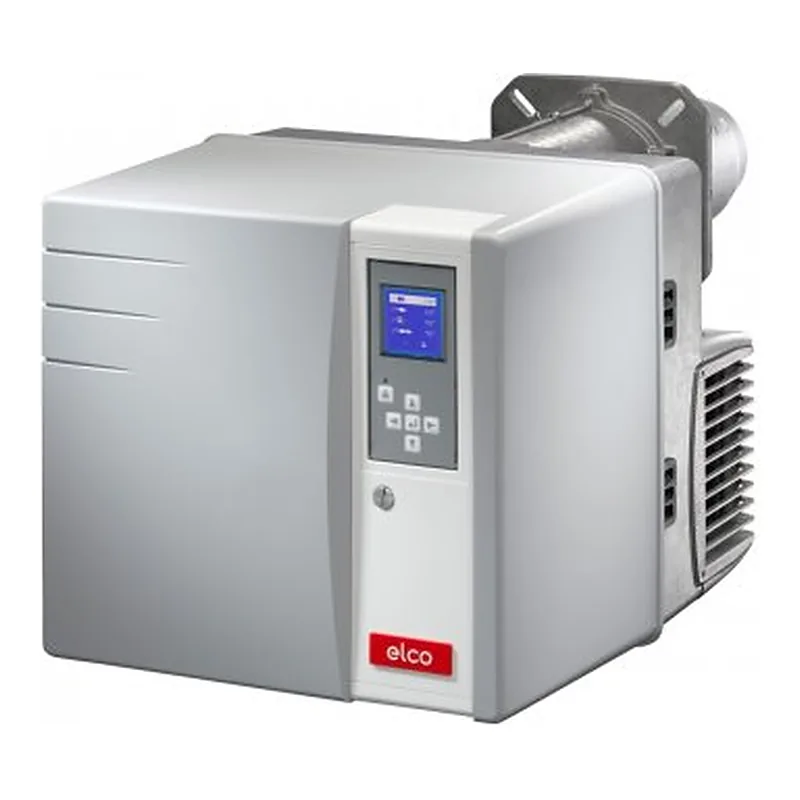

Elco VL 4.460 D KL — spare parts
- Fuel
- Oil
- Output
- 180–460 kW
- Parts
- 10
- Factory code
- 3833396
- Series
- VL 4.460 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Elco VL 4.460 D KL · 4
—on request
—on request
—on request
Burners for Elco VL 4.460 D KL · 1
—on request
Cables for Elco VL 4.460 D KL · 1
—on request
Control panels and displays for Elco VL 4.460 D KL · 1
—on request
Gas nozzles & injectors for Elco VL 4.460 D KL · 1
—on request
Motors for Elco VL 4.460 D KL · 1
—on request
Oil pumps for Elco VL 4.460 D KL · 1
—on request
What is inside Elco VL 4.460 D KL
Components named in the manufacturer's documentation.
- A2L65C
- QRB1
- STE 4.5 B0
- TCH TCH 2xx
Specifications
FuelOil
Output180–460 kW
Firing stagesTwo-stage
Fan motor power420 W
Supply voltage220 V
Power consumption545 W
Net weight39.7 kg
Protection class (IP)IP21
Flame tube length360 mm
Flame tube diameter150 mm
Flame tube typeextended
Back pressure (combustion chamber)0–5 mbar
Noise level70 dB
Operating temperature-10–60 °C
Overall dimensions100 x 46.5 x 47.5 cm
Delivery scopewith combustion head
Other versions of this seriesElco VL 4.460 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- VL 4.460 D
11 parts · 3833182 - VL 4.460 D KL
10 parts · 3833396 - VL 4.460 D KN
10 parts · 3833395 - VL 4.460 DP
11 parts · 3833972 - VL 4.460 DP KL
10 parts · 3833969 - VL 4.460 DP KN
10 parts · 3833968
Questions about Elco VL 4.460 D KL parts
Which burner components fit Elco VL 4.460 D KL?
These fit Elco VL 4.460 D KL: Ecoflam Housing Fixing Screw 65300519; Ecoflam Adjustment Rod 65300805; Elco Fixing Screws 13007804; Elco Equalizing Disc 13017115. ↑
Which burners fit Elco VL 4.460 D KL?
These fit Elco VL 4.460 D KL: Ecoflam Burner Flame Tube 65300807. ↑
Which cables fit Elco VL 4.460 D KL?
These fit Elco VL 4.460 D KL: Elco Power Cable 13011090. ↑
Which control panels and displays fit Elco VL 4.460 D KL?
These fit Elco VL 4.460 D KL: Elco Burner Manager Holder 65300524. ↑
Which gas nozzles & injectors fit Elco VL 4.460 D KL?
These fit Elco VL 4.460 D KL: Elco Gas nozzle 13018355. ↑
Which motors fit Elco VL 4.460 D KL?
These fit Elco VL 4.460 D KL: Elco Electric Motor 65300813. ↑
