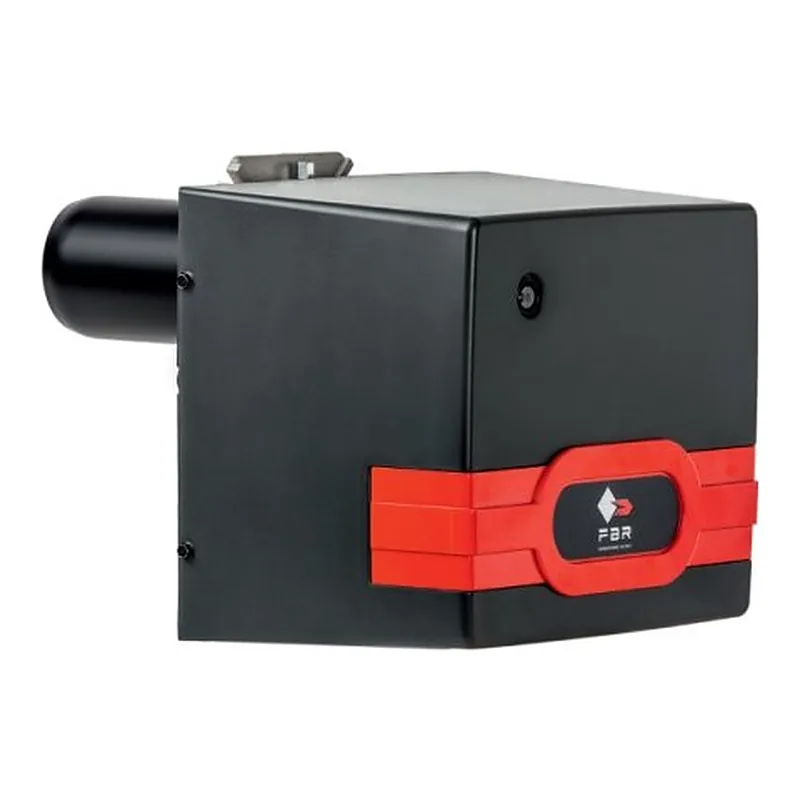

FBR G X3 F TC — spare parts
- Fuel
- Oil
- Output
- 83–178 kW
- Parts
- 2
- Factory code
- 001592
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Impellers for FBR G X3 F TC · 1
Motors for FBR G X3 F TC · 1
—on request
Specifications
FuelOil
Output83–178 kW
Firing stagesSingle-stage
Fan motor power150 W
Supply voltage220 V
Power consumption220 W
Net weight14 kg
Protection class (IP)IP40
Flame tube length130 mm
Flame tube diameter110 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.2–2.2 mbar
Noise level66 dB
Operating temperature-15–40 °C
Overall dimensions43.6 x 37.4 x 31.8 cm
Delivery scopewith combustion head
Additional featureshigh-temperature version
