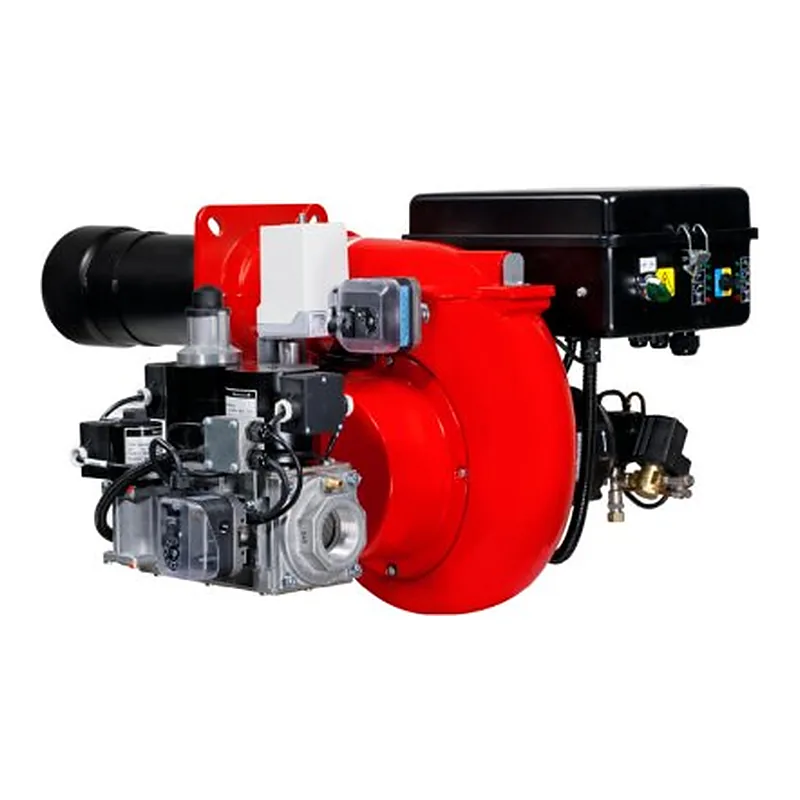

FBR K 4/2 TL EVO2 — spare parts
- Output
- 116–523 kW
- Parts
- 3
- Versions
- 3
- Series
- K 4/2 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner pipes, flanges & connections for FBR K 4/2 TL EVO2 · 1
Impellers for FBR K 4/2 TL EVO2 · 1
—on request
Motors for FBR K 4/2 TL EVO2 · 1
—on request
What is inside FBR K 4/2 TL EVO2
Components named in the manufacturer's documentation.
- SIEMENS SQN70.254A20
Specifications
Output116–523 kW
Gas connectionRp 1"
Firing stagesTwo-stage
Fan motor power740 W
Supply voltage220 V
Power consumption770 W
Net weight38 kg
Protection class (IP)IP40
Flame tube length350 mm
Flame tube diameter150 mm
Flame tube typeextended
Back pressure (combustion chamber)0–7.2 mbar
Gas consumption11.7–52.6 m³/h
Gas train pressure18–95 mbar
Operating temperature-20–70 °C
Delivery scopewith combustion head, with gas train
Versions
004023R057031
004023R057033
004023R057035
Other versions of this seriesFBR K 4/2 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- K 4/2 TC EVO2
1 part · 004106R057031 · 004106R057033 +1 - K 4/2 TL EVO2
3 parts · 004023R057031 · 004023R057033 +1
Questions about FBR K 4/2 TL EVO2 parts
Which burner pipes, flanges & connections fit FBR K 4/2 TL EVO2?
These fit FBR K 4/2 TL EVO2: FBR Gas Ramp 057035_31. ↑
Which impellers fit FBR K 4/2 TL EVO2?
These fit FBR K 4/2 TL EVO2: FBR Fan Impeller 291009. ↑
Which motors fit FBR K 4/2 TL EVO2?
These fit FBR K 4/2 TL EVO2: FBR Electric Motor 158837. ↑
