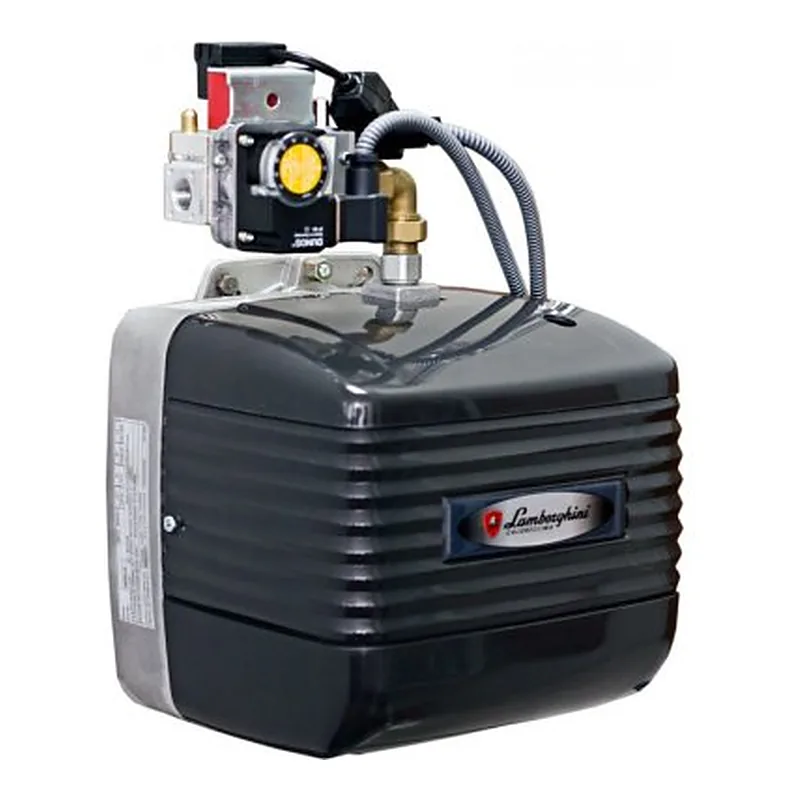

Lamborghini EM 16-E.D3 (MB405) — spare parts
- Fuel
- Gas
- Output
- 79.5–159 kW
- Parts
- 12
- Factory code
- Z300860401
- Series
- EM 16 · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ionization & ignition electrodes for Lamborghini EM 16-E.D3 (MB405) · 3
—on request
—on request
Boiler filters, gaskets & seals for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Burners for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Flues & air ducts for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Ignition cables and connectors for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Ignition transformers for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Motors for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Plugs and connectors for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Pressure switches for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
Wiring, cables & electrical components for Lamborghini EM 16-E.D3 (MB405) · 1
—on request
What is inside Lamborghini EM 16-E.D3 (MB405)
Components named in the manufacturer's documentation.
- EM 16-E - EM 16/L-E
- EM 26-E
Specifications
FuelGas
Output79.5–159 kW
Gas connectionRp 3/4"
Firing stagesSingle-stage
Fan motor power150 W
Supply voltage220 V
Power consumption315 W
Net weight22 kg
Protection class (IP)IP20
Flame tube diameter108 mm
Flame tube typeadjustable
Back pressure (combustion chamber)0–3 mbar
Gas consumption8–16 m³/h
Noise level71 dB
Overall dimensions48 x 31 x 46.5 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Other versions of this seriesLamborghini EM 16 · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- EM 16-E
1 part - EM 16-E.D3 (MB405)
12 parts · Z300860401 - EM 16-E.D4
12 parts · Z300860411
Questions about Lamborghini EM 16-E.D3 (MB405) parts
Which ionization & ignition electrodes fit Lamborghini EM 16-E.D3 (MB405)?
These fit Lamborghini EM 16-E.D3 (MB405): Lamborghini Ionization Electrode 3981A070; Lamborghini Ignition Electrode 3981A080; Lamborghini Ignition Electrode 3981A090. ↑
Which boiler filters, gaskets & seals fit Lamborghini EM 16-E.D3 (MB405)?
These fit Lamborghini EM 16-E.D3 (MB405): Lamborghini Insulating Gasket Z301067580. ↑
Which burners fit Lamborghini EM 16-E.D3 (MB405)?
These fit Lamborghini EM 16-E.D3 (MB405): Lamborghini Burner Base 3980N040. ↑
Which flues & air ducts fit Lamborghini EM 16-E.D3 (MB405)?
These fit Lamborghini EM 16-E.D3 (MB405): Lamborghini Fire Tube 3981A020. ↑
Which ignition cables and connectors fit Lamborghini EM 16-E.D3 (MB405)?
These fit Lamborghini EM 16-E.D3 (MB405): Lamborghini Ionization Cable 3981A060. ↑
Which ignition transformers fit Lamborghini EM 16-E.D3 (MB405)?
These fit Lamborghini EM 16-E.D3 (MB405): Lamborghini Ignition transformer 3980R620. ↑
