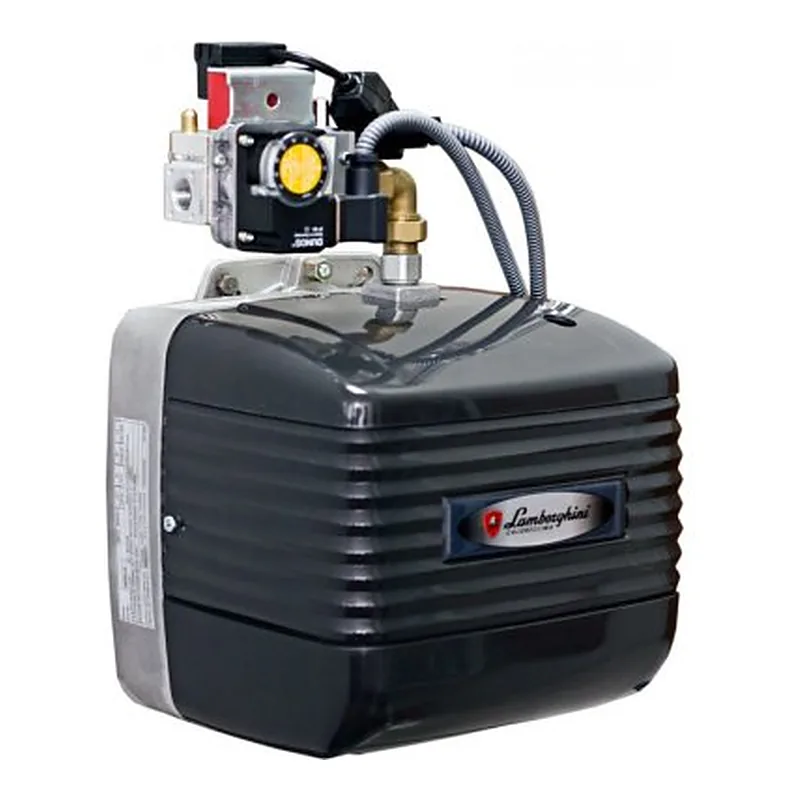

Lamborghini EM 18/2-E.D3 — spare parts
- Fuel
- Gas
- Output
- 99–169 kW
- Parts
- 12
- Factory code
- Z300860463
- Series
- EM 18/2 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ignition cables and connectors for Lamborghini EM 18/2-E.D3 · 2
—on request
Plugs and connectors for Lamborghini EM 18/2-E.D3 · 2
—on request
—on request
Boiler pipes, flanges & connections for Lamborghini EM 18/2-E.D3 · 1
—on request
Burner components for Lamborghini EM 18/2-E.D3 · 1
—on request
Burners for Lamborghini EM 18/2-E.D3 · 1
—on request
Flues & air ducts for Lamborghini EM 18/2-E.D3 · 1
—on request
Ignition transformers for Lamborghini EM 18/2-E.D3 · 1
—on request
Impellers for Lamborghini EM 18/2-E.D3 · 1
—on request
Ionization & ignition electrodes for Lamborghini EM 18/2-E.D3 · 1
—on request
Motors for Lamborghini EM 18/2-E.D3 · 1
—on request
What is inside Lamborghini EM 18/2-E.D3
Components named in the manufacturer's documentation.
- EM 18/2-E
Specifications
FuelGas
Output99–169 kW
Gas connectionRp 1/2"
Firing stagesTwo-stage
Fan motor power185 W
Supply voltage220 V
Power consumption330 W
Net weight23 kg
Protection class (IP)IP20
Flame tube diameter114 mm
Flame tube typeadjustable
Back pressure (combustion chamber)0–5 mbar
Gas consumption9.9–17 m³/h
Noise level71 dB
Overall dimensions67.5 x 27.5 x 64 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Other versions of this seriesLamborghini EM 18/2 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- EM 18/2
1 part - EM 18/2-E
1 part - EM 18/2-E.D3
12 parts · Z300860463 - EM 18/2-E.D6 (MB410)
12 parts · Z300860453
Questions about Lamborghini EM 18/2-E.D3 parts
Which ignition cables and connectors fit Lamborghini EM 18/2-E.D3?
These fit Lamborghini EM 18/2-E.D3: Lamborghini Ignition cable 3980R550; Lamborghini Ignition Electrode Cable 3981D480. ↑
Which plugs and connectors fit Lamborghini EM 18/2-E.D3?
These fit Lamborghini EM 18/2-E.D3: Lamborghini Connector 7P Female 3980N060; Lamborghini Plug 7P Male 3980N260. ↑
Which boiler pipes, flanges & connections fit Lamborghini EM 18/2-E.D3?
These fit Lamborghini EM 18/2-E.D3: Lamborghini Flange Gasket 3980S230. ↑
Which burner components fit Lamborghini EM 18/2-E.D3?
These fit Lamborghini EM 18/2-E.D3: Lamborghini Interference Filter 3980U470. ↑
Which burners fit Lamborghini EM 18/2-E.D3?
These fit Lamborghini EM 18/2-E.D3: Lamborghini Burner Base 3980N040. ↑
Which flues & air ducts fit Lamborghini EM 18/2-E.D3?
These fit Lamborghini EM 18/2-E.D3: Lamborghini Fire Tube 3981A150. ↑
