—on request

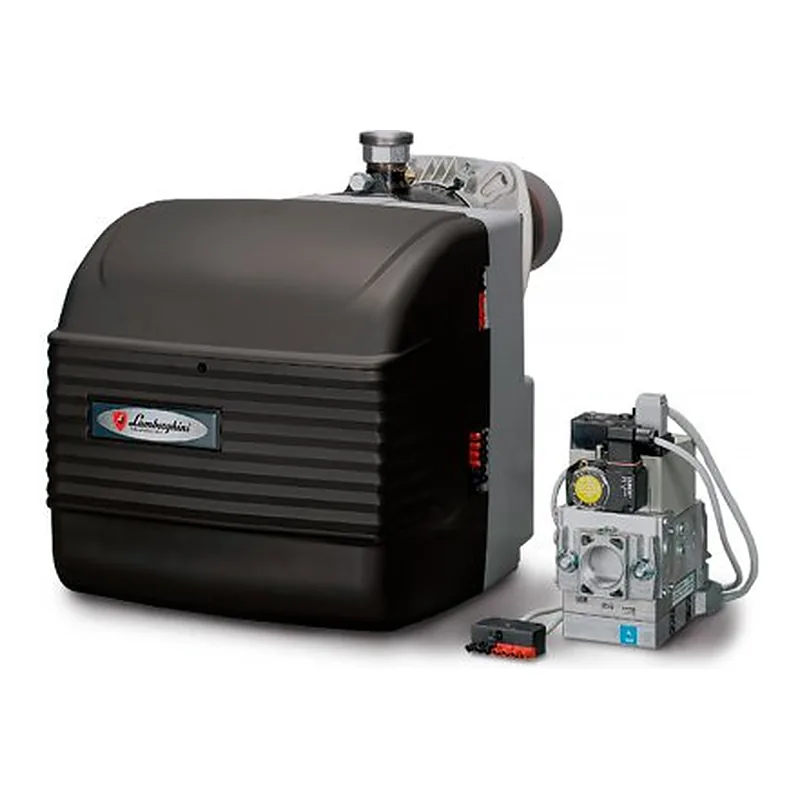

Lamborghini EM 40/M-E.D4 (MB407-S10) — spare parts
- Fuel
- Gas
- Output
- 115–390 kW
- Parts
- 6
- Factory code
- Z300870302
- Series
- EM 40/M · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ionization & ignition electrodes for Lamborghini EM 40/M-E.D4 (MB407-S10) · 2
—on request
Pressure switches for Lamborghini EM 40/M-E.D4 (MB407-S10) · 2
—on request
—on request
Ignition cables and connectors for Lamborghini EM 40/M-E.D4 (MB407-S10) · 1
—on request
Plugs and connectors for Lamborghini EM 40/M-E.D4 (MB407-S10) · 1
—on request
What is inside Lamborghini EM 40/M-E.D4 (MB407-S10)
Components named in the manufacturer's documentation.
- EM 35-E
- EM 40/2-E
- EM 40/M-E
Specifications
FuelGas
Output115–390 kW
Gas connectionRp 1 1/4"
Firing stagesTwo-stage
Fan motor power370 W
Supply voltage220 V
Power consumption680 W
Net weight41 kg
Protection class (IP)IP20
Flame tube length340 mm
Flame tube diameter140 mm
Flame tube typestandard
Back pressure (combustion chamber)0–5.5 mbar
Gas consumption12.2–41.3 m³/h
Noise level75 dB
Overall dimensions88 x 42 x 74 cm
Delivery scopewith combustion head
Other versions of this seriesLamborghini EM 40/M · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- EM 40/M
1 part - EM 40/M-E
1 part - EM 40/M-E.D4 (MB407-S10)
6 parts · Z300870302 - EM 40/M-E.D5 (MB407-S30)
12 parts · Z300870312 - EM 40/M-E.D7 (MB412)
12 parts · Z300870292
Questions about Lamborghini EM 40/M-E.D4 (MB407-S10) parts
Which ionization & ignition electrodes fit Lamborghini EM 40/M-E.D4 (MB407-S10)?
These fit Lamborghini EM 40/M-E.D4 (MB407-S10): Lamborghini Ignition Electrode 3981B030; Lamborghini Ionization Electrode Z330141980. ↑
Which pressure switches fit Lamborghini EM 40/M-E.D4 (MB407-S10)?
These fit Lamborghini EM 40/M-E.D4 (MB407-S10): Lamborghini Pressure switch 3981A220; Lamborghini Pressure switch 3981A830. ↑
Which ignition cables and connectors fit Lamborghini EM 40/M-E.D4 (MB407-S10)?
These fit Lamborghini EM 40/M-E.D4 (MB407-S10): Lamborghini Ignition cable 3981E600. ↑
Which plugs and connectors fit Lamborghini EM 40/M-E.D4 (MB407-S10)?
These fit Lamborghini EM 40/M-E.D4 (MB407-S10): Lamborghini Cable Connection Connector 3981A800. ↑
