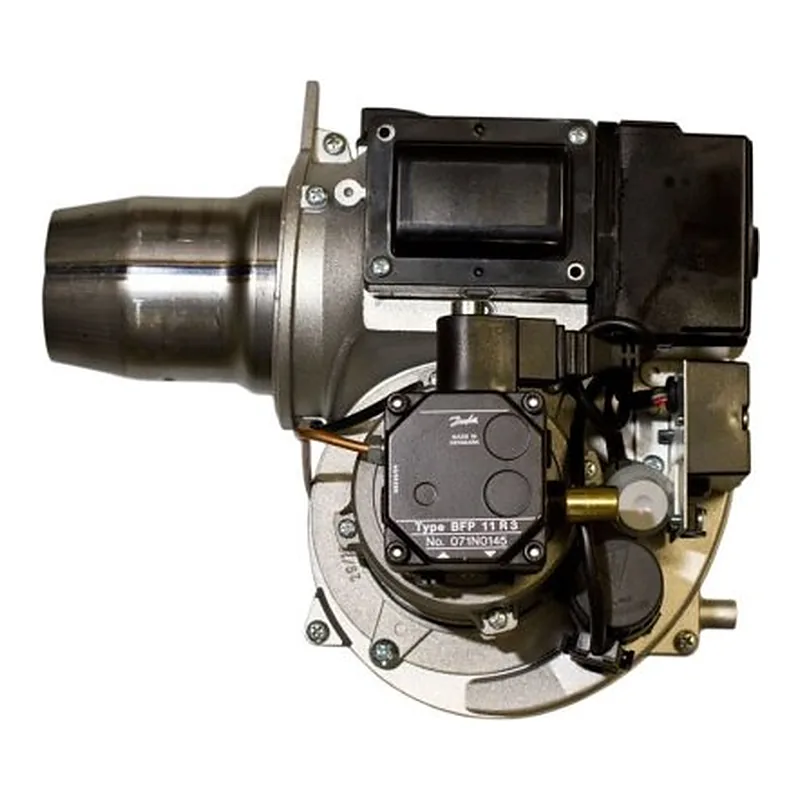

Lamborghini FIRE 6 R — spare parts
- Fuel
- Oil
- Output
- 28.46–65.23 kW
- Parts
- 5
- Factory code
- Z300842039
- Series
- FIRE 6 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Flame sensors for Lamborghini FIRE 6 R · 1
Ignition transformers for Lamborghini FIRE 6 R · 1
—on request
Motors for Lamborghini FIRE 6 R · 1
—on request
Oil filters, coils, tubes & hoses for Lamborghini FIRE 6 R · 1
—on request
Wiring, cables & electrical components for Lamborghini FIRE 6 R · 1
—on request
What is inside Lamborghini FIRE 6 R
Components named in the manufacturer's documentation.
- LMO
Specifications
FuelOil
Output28.46–65.23 kW
Firing stagesSingle-stage
Fan motor power100 W
Supply voltage220 V
Power consumption290 W
Net weight10 kg
Protection class (IP)IP20
Flame tube length100 mm
Flame tube diameter90 mm
Flame tube typestandard
Back pressure (combustion chamber)0–1.35 mbar
Noise level69 dB
Overall dimensions29 x 26 x 27 cm
Delivery scopewith combustion head
Other versions of this seriesLamborghini FIRE 6 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- FIRE 6
2 parts · 00842028 · Z300842039 - FIRE 6 C
1 part - FIRE 6 R
5 parts · Z300842039 - FIRE 6 R-C
1 part
Questions about Lamborghini FIRE 6 R parts
Which flame sensors fit Lamborghini FIRE 6 R?
These fit Lamborghini FIRE 6 R: Lamborghini Flame sensor Z304035810. ↑
Which ignition transformers fit Lamborghini FIRE 6 R?
These fit Lamborghini FIRE 6 R: Lamborghini Ignition transformer 3981A140. ↑
Which motors fit Lamborghini FIRE 6 R?
These fit Lamborghini FIRE 6 R: Lamborghini Electric Motor Clutch 04035140. ↑
Which oil filters, coils, tubes & hoses fit Lamborghini FIRE 6 R?
These fit Lamborghini FIRE 6 R: Lamborghini Liquid Fuel Hose Z301078090. ↑
Which wiring, cables & electrical components fit Lamborghini FIRE 6 R?
These fit Lamborghini FIRE 6 R: Lamborghini Capacitor 4 uF Z304035130. ↑
