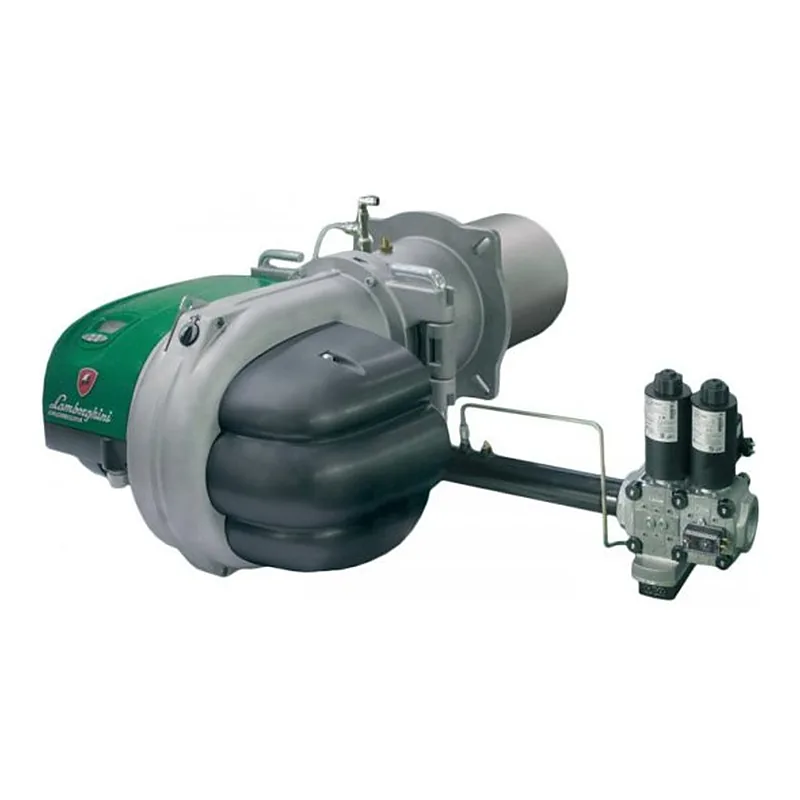

Lamborghini LMB G 1300 (S2") — spare parts
- Fuel
- Gas
- Output
- 237–1296 kW
- Parts
- 10
- Factory code
- Z300873100
- Series
- LMB G 1300 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ionization & ignition electrodes for Lamborghini LMB G 1300 (S2") · 2
—on request
Actuators for Lamborghini LMB G 1300 (S2") · 1
—on request
Boiler pipes, flanges & connections for Lamborghini LMB G 1300 (S2") · 1
—on request
Burners for Lamborghini LMB G 1300 (S2") · 1
—on request
Ignition transformers for Lamborghini LMB G 1300 (S2") · 1
—on request
Impellers for Lamborghini LMB G 1300 (S2") · 1
—on request
Plugs and connectors for Lamborghini LMB G 1300 (S2") · 1
—on request
Pressure switches for Lamborghini LMB G 1300 (S2") · 1
—on request
Wiring, cables & electrical components for Lamborghini LMB G 1300 (S2") · 1
Specifications
FuelGas
Output237–1296 kW
Gas connectionRp 2"
Firing stagesTwo-stage
Supply voltage220 V
Power consumption2200 W
Net weight45 kg
Protection class (IP)IP44
Flame tube length340 mm
Flame tube diameter232 mm
Flame tube typestandard
Back pressure (combustion chamber)0–10 mbar
Gas consumption25–136.5 m³/h
Gas train pressure8–30 mbar
Noise level85 dB
Operating temperature0–40 °C
Overall dimensions62 x 99 x 44 cm
Delivery scopewith combustion head, with gas train
Additional featurescontinuous ventilation
Other versions of this seriesLamborghini LMB G 1300 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- LMB G 1300 (K2")
11 parts · Z300872871 - LMB G 1300 (S2")
10 parts · Z300873100
Questions about Lamborghini LMB G 1300 (S2") parts
Which ionization & ignition electrodes fit Lamborghini LMB G 1300 (S2")?
These fit Lamborghini LMB G 1300 (S2"): Lamborghini Ignition Electrode 3981B030; Lamborghini Ionization Electrode 3981B050. ↑
Which actuators fit Lamborghini LMB G 1300 (S2")?
These fit Lamborghini LMB G 1300 (S2"): Lamborghini Actuator 3981A920. ↑
Which boiler pipes, flanges & connections fit Lamborghini LMB G 1300 (S2")?
These fit Lamborghini LMB G 1300 (S2"): Lamborghini Flange Gasket 3981B110. ↑
Which burners fit Lamborghini LMB G 1300 (S2")?
These fit Lamborghini LMB G 1300 (S2"): Lamborghini Burner Head 01135600. ↑
Which ignition transformers fit Lamborghini LMB G 1300 (S2")?
These fit Lamborghini LMB G 1300 (S2"): Lamborghini Ignition transformer 3981A780. ↑
Which impellers fit Lamborghini LMB G 1300 (S2")?
These fit Lamborghini LMB G 1300 (S2"): Lamborghini Fan Impeller 3981A890. ↑
