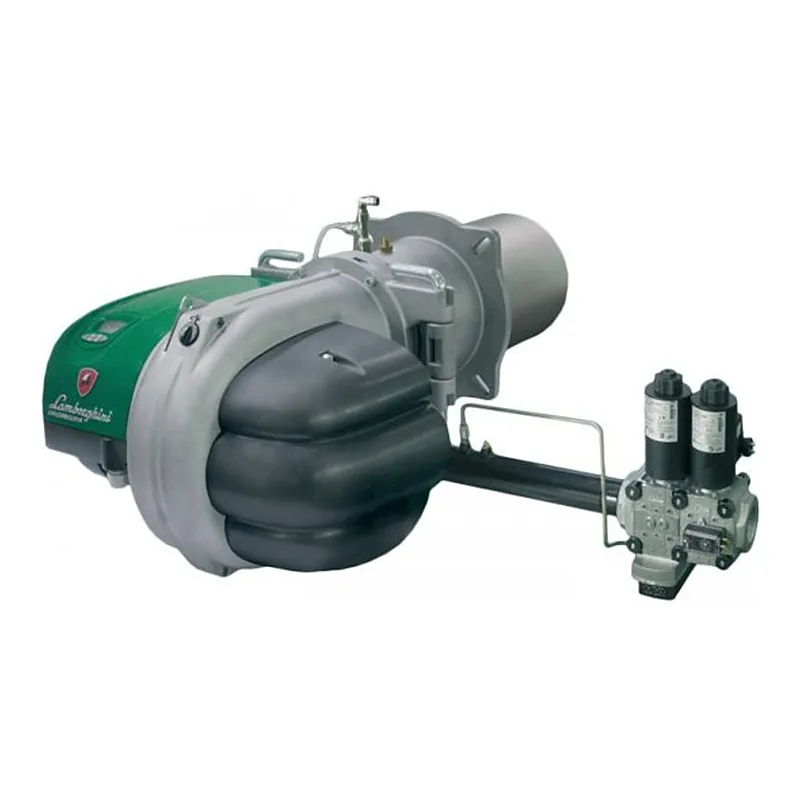

Lamborghini LMB G 2000 (S1" 1/2) — spare parts
- Fuel
- Gas
- Output
- 336–1918 kW
- Parts
- 10
- Factory code
- Z300872890
- Series
- LMB G 2000 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ionization & ignition electrodes for Lamborghini LMB G 2000 (S1" 1/2) · 2
—on request
Actuators for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Boiler pipes, flanges & connections for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Ignition cables and connectors for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Ignition transformers for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Impellers for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Plugs and connectors for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Pressure switches for Lamborghini LMB G 2000 (S1" 1/2) · 1
—on request
Wiring, cables & electrical components for Lamborghini LMB G 2000 (S1" 1/2) · 1
Specifications
FuelGas
Output336–1918 kW
Gas connectionRp 1 1/2"
Firing stagesTwo-stage
Supply voltage220 V
Power consumption3000 W
Net weight48 kg
Protection class (IP)IP44
Flame tube length340 mm
Flame tube diameter244 mm
Flame tube typestandard
Back pressure (combustion chamber)0–12.5 mbar
Gas consumption36.5–202 m³/h
Noise level86 dB
Operating temperature0–40 °C
Overall dimensions62 x 107 x 44 cm
Delivery scopewith combustion head, with gas train
Additional featurescontinuous ventilation
Other versions of this seriesLamborghini LMB G 2000 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- LMB G 2000
11 parts · Z300872910 · Z300873110 - LMB G 2000 (K2")
10 parts · Z300872901 - LMB G 2000 (S1" 1/2)
10 parts · Z300872890 - LMB G 2000 (S DN 65)
11 parts · Z300872530
Questions about Lamborghini LMB G 2000 (S1" 1/2) parts
Which ionization & ignition electrodes fit Lamborghini LMB G 2000 (S1" 1/2)?
These fit Lamborghini LMB G 2000 (S1" 1/2): Lamborghini Ignition Electrode 3981B030; Lamborghini Ionization Electrode 3981B050. ↑
Which actuators fit Lamborghini LMB G 2000 (S1" 1/2)?
These fit Lamborghini LMB G 2000 (S1" 1/2): Lamborghini Actuator 3981A920. ↑
Which boiler pipes, flanges & connections fit Lamborghini LMB G 2000 (S1" 1/2)?
These fit Lamborghini LMB G 2000 (S1" 1/2): Lamborghini Flange Gasket 3981B110. ↑
Which ignition cables and connectors fit Lamborghini LMB G 2000 (S1" 1/2)?
These fit Lamborghini LMB G 2000 (S1" 1/2): Lamborghini Ignition cable Z301135380. ↑
Which ignition transformers fit Lamborghini LMB G 2000 (S1" 1/2)?
These fit Lamborghini LMB G 2000 (S1" 1/2): Lamborghini Ignition transformer 3981A780. ↑
Which impellers fit Lamborghini LMB G 2000 (S1" 1/2)?
These fit Lamborghini LMB G 2000 (S1" 1/2): Lamborghini Fan Impeller 3981A890. ↑
