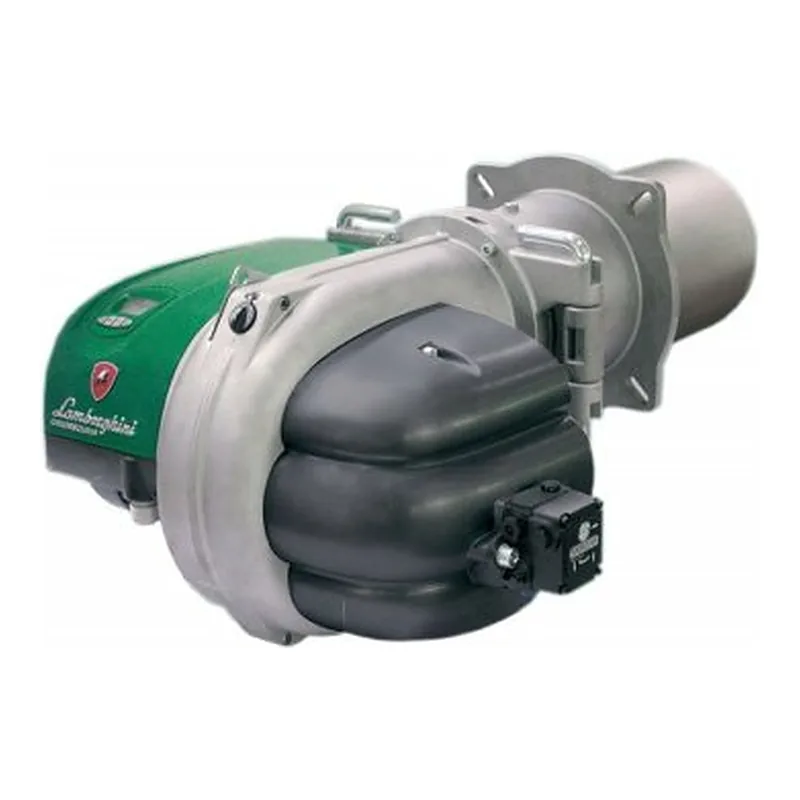

Lamborghini LMB LO 1300 (3 ST.) — spare parts
- Fuel
- Oil
- Output
- 201–1370 kW
- Parts
- 12
- Factory code
- Z300845091
- Series
- LMB LO 1300 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Plugs and connectors for Lamborghini LMB LO 1300 (3 ST.) · 2
—on request
Boiler pipes, flanges & connections for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Burner components for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Burners for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Flues & air ducts for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Ignition cables and connectors for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Ignition transformers for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Impellers for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Ionization & ignition electrodes for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Motors for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Pressure switches for Lamborghini LMB LO 1300 (3 ST.) · 1
—on request
Specifications
FuelOil
Output201–1370 kW
Firing stagesThree-stage
Supply voltage220 V
Power consumption2200 W
Net weight40 kg
Protection class (IP)IP44
Flame tube length340 mm
Flame tube diameter244 mm
Flame tube typestandard
Back pressure (combustion chamber)0–10.5 mbar
Operating temperature0–40 °C
Overall dimensions62 x 65 x 44 cm
Delivery scopewith combustion head
Other versions of this seriesLamborghini LMB LO 1300 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- LMB LO 1300 (2 ST.)
9 parts · Z300845351 - LMB LO 1300 (3 ST.)
12 parts · Z300845091
Questions about Lamborghini LMB LO 1300 (3 ST.) parts
Which plugs and connectors fit Lamborghini LMB LO 1300 (3 ST.)?
These fit Lamborghini LMB LO 1300 (3 ST.): Lamborghini Connector 7P Female 3980N060; Lamborghini Plug 7P Male 3980N260. ↑
Which boiler pipes, flanges & connections fit Lamborghini LMB LO 1300 (3 ST.)?
These fit Lamborghini LMB LO 1300 (3 ST.): Lamborghini Flange Gasket 3980S230. ↑
Which burner components fit Lamborghini LMB LO 1300 (3 ST.)?
These fit Lamborghini LMB LO 1300 (3 ST.): Lamborghini Interference Filter 3980U470. ↑
Which burners fit Lamborghini LMB LO 1300 (3 ST.)?
These fit Lamborghini LMB LO 1300 (3 ST.): Lamborghini Burner Base 3980N040. ↑
Which flues & air ducts fit Lamborghini LMB LO 1300 (3 ST.)?
These fit Lamborghini LMB LO 1300 (3 ST.): Lamborghini Fire Tube 3981A150. ↑
Which ignition cables and connectors fit Lamborghini LMB LO 1300 (3 ST.)?
These fit Lamborghini LMB LO 1300 (3 ST.): Lamborghini Ignition cable 3980U360. ↑
