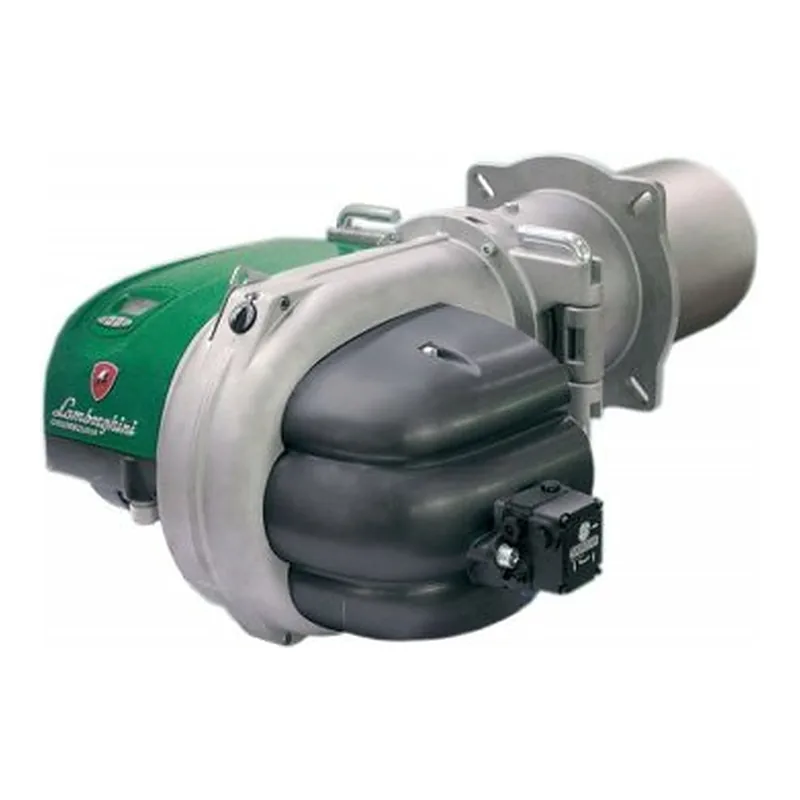

Lamborghini LMB LO 2000 — oil burner, photo 1

Lamborghini LMB LO 2000 — spare parts

Fuel
Oil
Output
712–1976 kW
Parts
8
Versions
2

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Actuators for Lamborghini LMB LO 2000 · 1

Flame sensors for Lamborghini LMB LO 2000 · 1

Ignition cables and connectors for Lamborghini LMB LO 2000 · 1

Ignition transformers for Lamborghini LMB LO 2000 · 1

Ionization & ignition electrodes for Lamborghini LMB LO 2000 · 1

Oil filters, coils, tubes & hoses for Lamborghini LMB LO 2000 · 1

Plugs and connectors for Lamborghini LMB LO 2000 · 1

Wiring, cables & electrical components for Lamborghini LMB LO 2000 · 1

Specifications

FuelOil
Output712–1976 kW
Firing stagesThree-stage
Supply voltage220 V
Power consumption3000 W
Length620 mm
Width650 mm
Height440 mm
Net weight41 kg
Protection class (IP)IP44
Flame tube length340 mm
Flame tube diameter244 mm
Flame tube typestandard
Back pressure (combustion chamber)0–12.5 mbar
Operating temperature0–40 °C
Overall dimensions62 x 65 x 44 cm
Delivery scopewith combustion head

Versions

LMB LO 2000 (3 ST.)Z300845101
LMB LO 2000 (2 ST.)Z300845361

Other versions of this seriesLamborghini LMB LO 2000 · 2

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Lamborghini LMB LO 2000 parts

Which actuators fit Lamborghini LMB LO 2000?

These fit Lamborghini LMB LO 2000: Lamborghini Actuator 3981C850. ↑

Which flame sensors fit Lamborghini LMB LO 2000?

These fit Lamborghini LMB LO 2000: Lamborghini Flame sensor 3981E200. ↑

Which ignition cables and connectors fit Lamborghini LMB LO 2000?

These fit Lamborghini LMB LO 2000: Lamborghini Ignition cable 3981C920. ↑

Which ignition transformers fit Lamborghini LMB LO 2000?

These fit Lamborghini LMB LO 2000: Lamborghini Ignition transformer 3980R620. ↑

Which ionization & ignition electrodes fit Lamborghini LMB LO 2000?

These fit Lamborghini LMB LO 2000: Ferroli Ignition Electrodes 39817340. ↑

Which oil filters, coils, tubes & hoses fit Lamborghini LMB LO 2000?

These fit Lamborghini LMB LO 2000: Lamborghini Nozzle Hose 01136140. ↑
