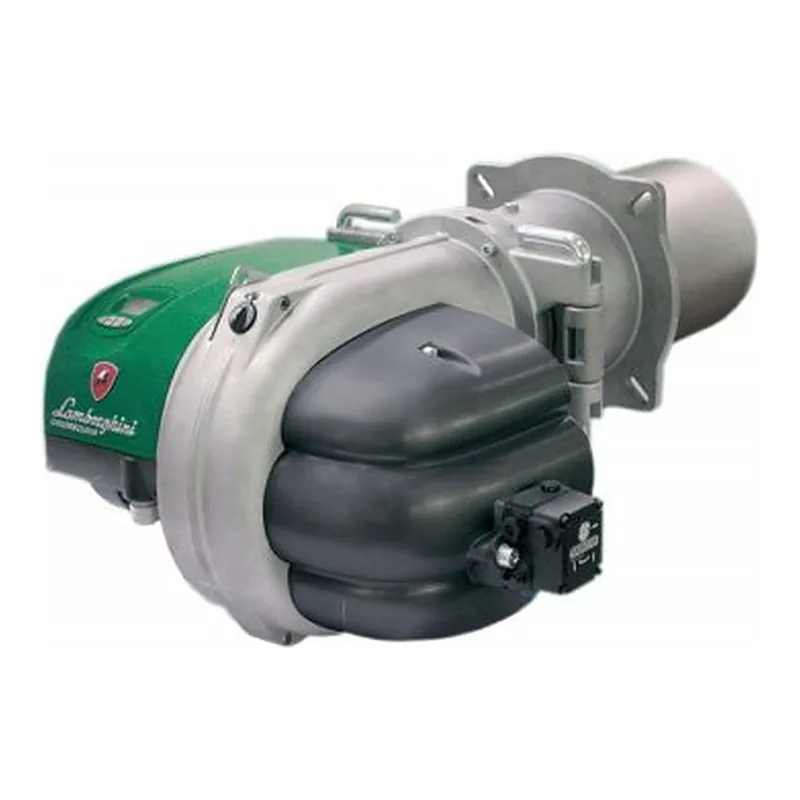

Lamborghini LMB LO 300 — spare parts
- Fuel
- Oil
- Output
- 110–360 kW
- Parts
- 6
- Factory code
- Z300845960
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Flame sensors for Lamborghini LMB LO 300 · 1
Ignition cables and connectors for Lamborghini LMB LO 300 · 1
—on request
Ionization & ignition electrodes for Lamborghini LMB LO 300 · 1
—on request
Oil filters, coils, tubes & hoses for Lamborghini LMB LO 300 · 1
—on request
Oil valves for Lamborghini LMB LO 300 · 1
—on request
Plugs and connectors for Lamborghini LMB LO 300 · 1
—on request
Specifications
FuelOil
Output110–360 kW
Firing stagesTwo-stage
Fan motor power370 W
Supply voltage220 V
Power consumption770 W
Length600 mm
Width480 mm
Height340 mm
Net weight29 kg
Protection class (IP)IP44
Flame tube length210 mm
Flame tube diameter124 mm
Flame tube typestandard
Back pressure (combustion chamber)0–5.8 mbar
Noise level80 dB
Operating temperature0–40 °C
Overall dimensions60 x 48 x 34 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Questions about Lamborghini LMB LO 300 parts
Which flame sensors fit Lamborghini LMB LO 300?
These fit Lamborghini LMB LO 300: Lamborghini Flame sensor 3981E200. ↑
Which ignition cables and connectors fit Lamborghini LMB LO 300?
These fit Lamborghini LMB LO 300: Lamborghini Ignition cable 3980U360. ↑
Which ionization & ignition electrodes fit Lamborghini LMB LO 300?
These fit Lamborghini LMB LO 300: Ferroli Ignition Electrodes 39817340. ↑
Which oil filters, coils, tubes & hoses fit Lamborghini LMB LO 300?
These fit Lamborghini LMB LO 300: Lamborghini Nozzle Hose 01136140. ↑
Which oil valves fit Lamborghini LMB LO 300?
These fit Lamborghini LMB LO 300: Lamborghini Liquid Fuel Solenoid Valve 3980U390. ↑
Which plugs and connectors fit Lamborghini LMB LO 300?
These fit Lamborghini LMB LO 300: Lamborghini Cable Connection Connector 3981A800. ↑
