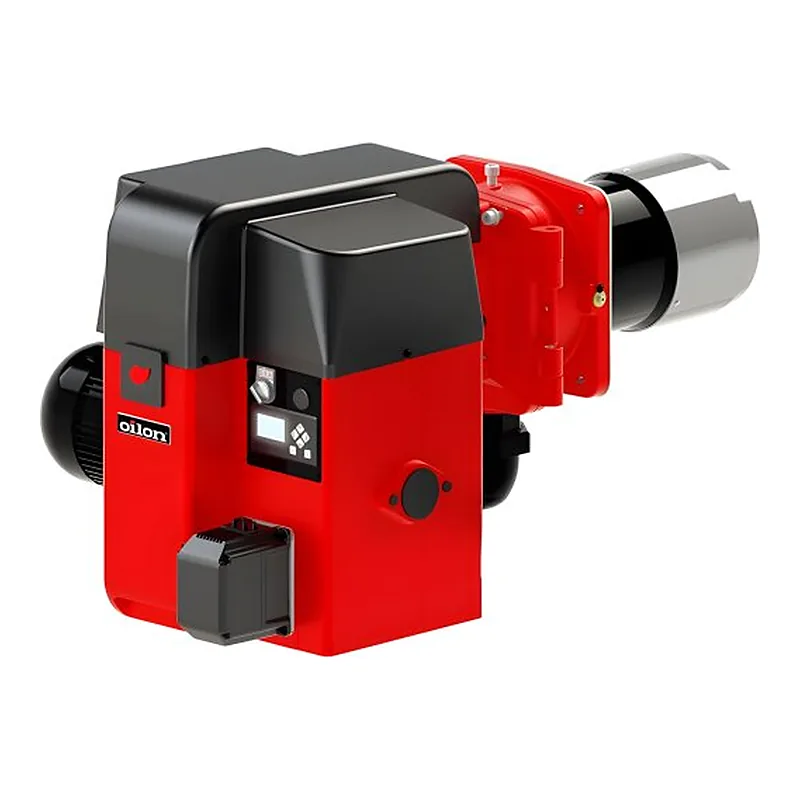

Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2 — spare parts
- Output
- 100–800 kW
- Parts
- 3
- Series
- GKP-50 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Gas valves & coils for Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2 · 2
—on request
Gas valves for Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2 · 1
—on request
What is inside Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2
Components named in the manufacturer's documentation.
- FRS
- SKP
Specifications
Output100–800 kW
Gas connectionR 1 1/2"
Fan motor power750 W
Supply voltage380 V
Net weight44 kg
Protection class (IP)IP20
Flame tube length300 mm
Flame tube diameter160 mm
Flame tube typeextended
Back pressure (combustion chamber)0–9 mbar
Gas consumption10–80.2 m³/h
Gas train pressure1–15 mbar
Operating temperature0–50 °C
Overall dimensions98.5 x 58.5 x 51 cm
Delivery scopewith combustion head, with gas train
Additional featurescontinuous ventilation
Other versions of this seriesOilon GKP-50 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- GKP-50 H 1 1/2
1 part · GKP50H-1 - GKP-50 H 2 L2-240
1 part - GKP-50 MH WD34 DMV-D 512/11 R1 1/2
3 parts - GKP-50 MH WD34 DMV-D 520/11 R2
3 parts - GKP-50 MH WD34 VGD20.4011 R1 1/2
1 part
Questions about Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2 parts
Which gas valves & coils fit Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2?
These fit Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2: Dungs Double Solenoid Valve 222826; Dungs Double Solenoid Valve 222828. ↑
Which gas valves fit Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2?
These fit Oilon GKP-50 MH WD34 DMV-D 512/11 R1 1/2: Dungs Double Solenoid Valve 222336. ↑
