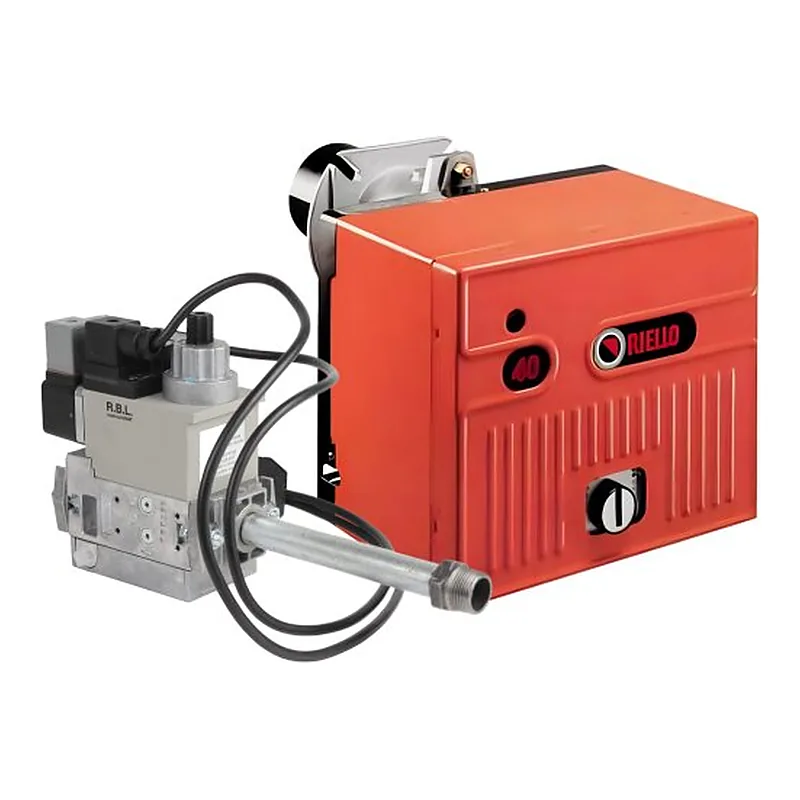

Riello 40 D17 TL MB 407/1 - RSD 20 — spare parts
- Output
- 80–197 kW
- Parts
- 8
- Factory code
- 20052631-3970531
- Series
- 40 D17 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello 40 D17 TL MB 407/1 - RSD 20 · 3
—on request
—on request
Blast tubes & combustion heads for Riello 40 D17 TL MB 407/1 - RSD 20 · 1
—on request
Ignition cables and connectors for Riello 40 D17 TL MB 407/1 - RSD 20 · 1
—on request
Motors for Riello 40 D17 TL MB 407/1 - RSD 20 · 1
—on request
Oil pumps for Riello 40 D17 TL MB 407/1 - RSD 20 · 1
—on request
Wiring, cables & electrical components for Riello 40 D17 TL MB 407/1 - RSD 20 · 1
—on request
What is inside Riello 40 D17 TL MB 407/1 - RSD 20
Components named in the manufacturer's documentation.
- Air pressure switch
- Gas pressure switch
- Gas valve
- Ignition transformer
- oil valve
- pressure switch
- BRAHMA MF 2
- RIELLO 40 D17 493M
- RIELLO 40 D17 TL 493M
Specifications
Output80–197 kW
Gas connectionRp 3/4"
Firing stagesSingle-stage
Fan motor power320 W
Supply voltage220 V
Power consumption150 W
Net weight28 kg
Protection class (IP)IP40
Flame tube length280 mm
Flame tube diameter120 mm
Flame tube typeextended
Back pressure (combustion chamber)0–2.4 mbar
Gas consumption8–19.7 m³/h
Gas train pressure9.6–26.1 mbar
Operating temperature0–40 °C
Overall dimensions68.2 x 35 x 29.8 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello 40 D17 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- 40 D17
9 parts · 3482601 - 40 D17 MB 405/1 - RSD 20
8 parts · 3482601-3970530 - 40 D17 TL
8 parts · 20052631 - 40 D17 TL MB 407/1 - RSD 20
8 parts · 20052631-3970531
Questions about Riello 40 D17 TL MB 407/1 - RSD 20 parts
Which burner components fit Riello 40 D17 TL MB 407/1 - RSD 20?
These fit Riello 40 D17 TL MB 407/1 - RSD 20: Riello Gas Pressure Measurement Nipple 3005447; Riello Sealing Rings 3007156; Riello Gas Ramp 3970530. ↑
Which blast tubes & combustion heads fit Riello 40 D17 TL MB 407/1 - RSD 20?
These fit Riello 40 D17 TL MB 407/1 - RSD 20: Riello Blast tube head 3006699. ↑
Which ignition cables and connectors fit Riello 40 D17 TL MB 407/1 - RSD 20?
These fit Riello 40 D17 TL MB 407/1 - RSD 20: Riello Ignition Electrode Cable 3003794. ↑
Which motors fit Riello 40 D17 TL MB 407/1 - RSD 20?
These fit Riello 40 D17 TL MB 407/1 - RSD 20: Riello Motor 3005820. ↑
Which oil pumps fit Riello 40 D17 TL MB 407/1 - RSD 20?
These fit Riello 40 D17 TL MB 407/1 - RSD 20: Riello Oil pump 3007800. ↑
Which wiring, cables & electrical components fit Riello 40 D17 TL MB 407/1 - RSD 20?
These fit Riello 40 D17 TL MB 407/1 - RSD 20: Riello Capacitor 5 uF 3005802. ↑
