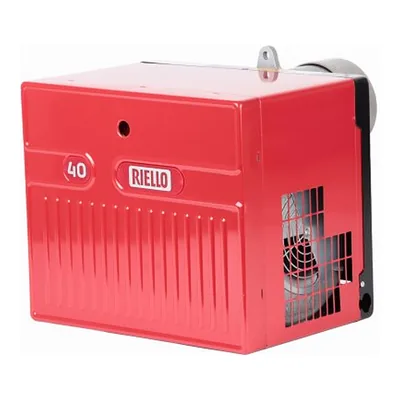

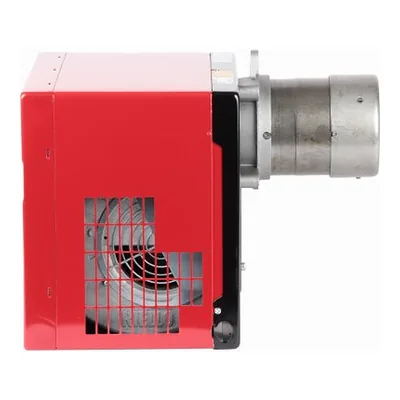

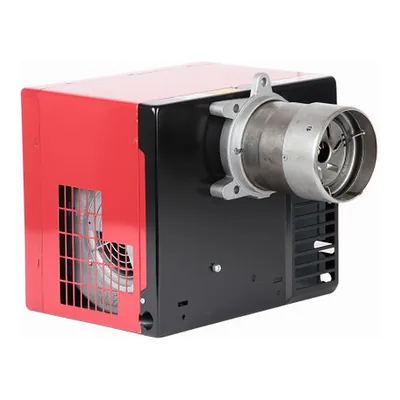

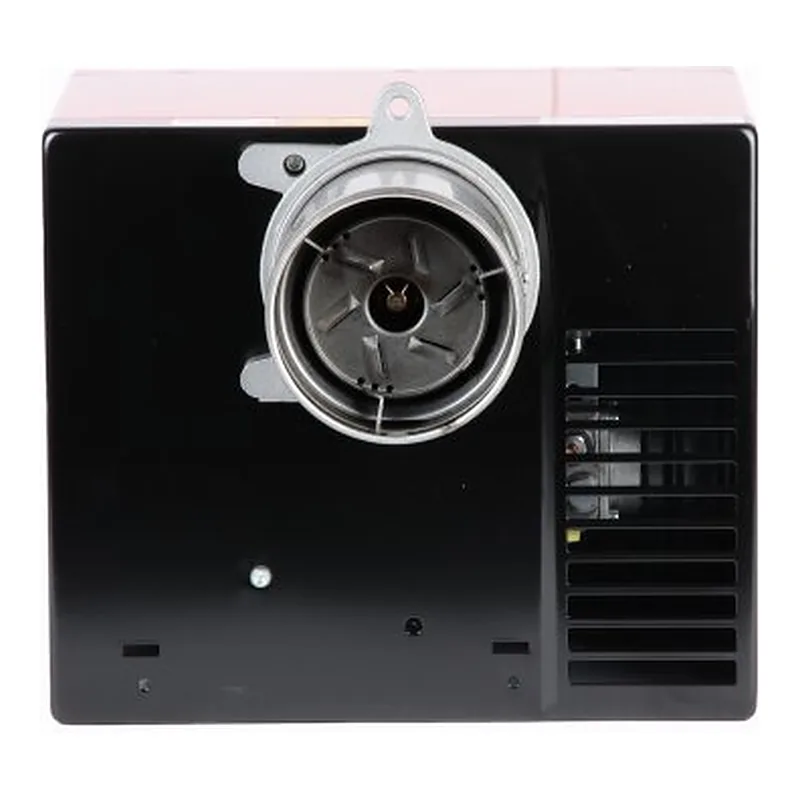

Riello 40 F20 — spare parts
- Fuel
- Oil
- Output
- 95–202 kW
- Parts
- 7
- Factory code
- 3452783
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Motors for Riello 40 F20 · 2
—on request
Burner components for Riello 40 F20 · 1
—on request
Burner pipes, flanges & connections for Riello 40 F20 · 1
—on request
Control devices for Riello 40 F20 · 1
—on request
Ionization & ignition electrodes for Riello 40 F20 · 1
—on request
Venturi tubes for Riello 40 F20 · 1
—on request
What is inside Riello 40 F20
Components named in the manufacturer's documentation.
- control-box
- flame sensor
- ignition-transformer
- Автомат горения 530SE*
- Насос
- RIELLO 40 F 20
- RIELLO 40 F20 464M
Specifications
FuelOil
Output95–202 kW
Firing stagesSingle-stage
Fan motor power300 W
Supply voltage220 V
Power consumption330 W
Net weight16 kg
Protection class (IP)IP40
Flame tube length118 mm
Flame tube diameter125 mm
Flame tube typestandard
Back pressure (combustion chamber)0–1.8 mbar
Noise level73 dB
Operating temperature0–40 °C
Overall dimensions41.7 x 35 x 29.8 cm
Delivery scopewith combustion head
Questions about Riello 40 F20 parts
Which motors fit Riello 40 F20?
These fit Riello 40 F20: Riello Motor 3005820; Riello Electric Motor 3005845. ↑
Which burner components fit Riello 40 F20?
These fit Riello 40 F20: Riello Sealing Rings 3007156. ↑
Which burner pipes, flanges & connections fit Riello 40 F20?
These fit Riello 40 F20: Riello Flange 3005814. ↑
Which control devices fit Riello 40 F20?
These fit Riello 40 F20: Riello Furnace Automation 555SE 3008850. ↑
Which ionization & ignition electrodes fit Riello 40 F20?

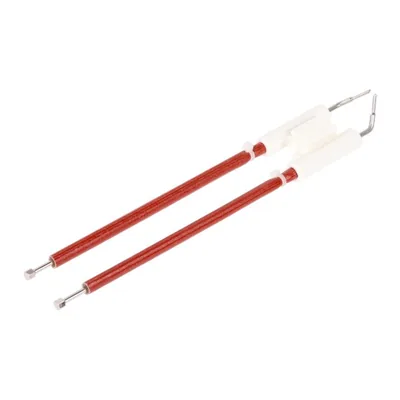

These fit Riello 40 F20: Riello Ignition Electrode Block 3006076. ↑
Which venturi tubes fit Riello 40 F20?
These fit Riello 40 F20: Riello Liquid Fuel Tube 3005819. ↑
