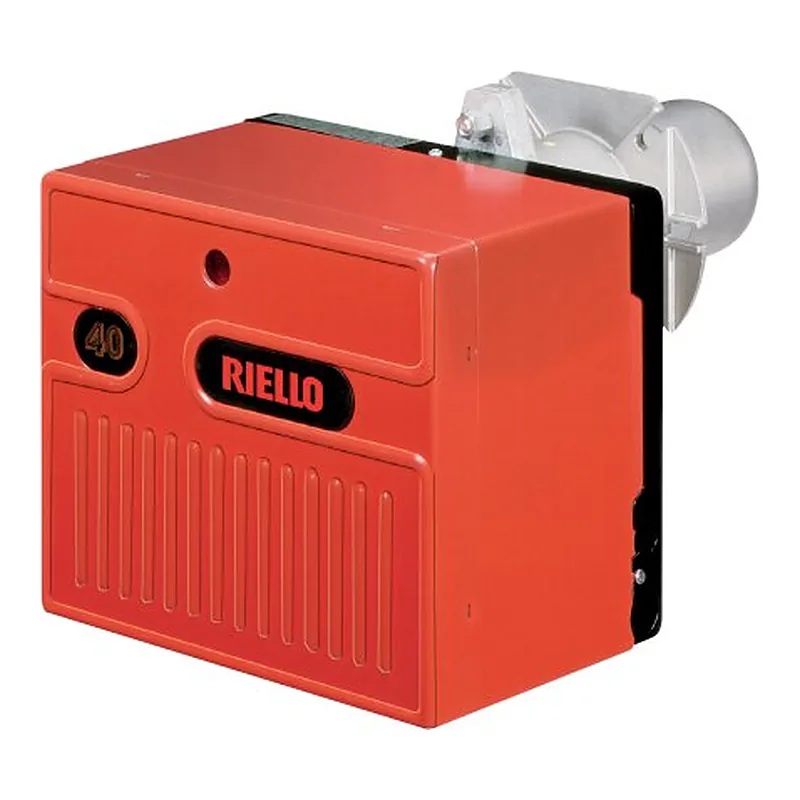

Riello 40 FS10 MB 405/1 - RSD 20 — spare parts
- Fuel
- Gas
- Output
- 52–116 kW
- Parts
- 13
- Factory code
- 3756435-3970530
- Series
- 40 FS10 · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello 40 FS10 MB 405/1 - RSD 20 · 5
—on request
—on request
—on request
—on request
Burner pipes, flanges & connections for Riello 40 FS10 MB 405/1 - RSD 20 · 1
—on request
Control boxes for Riello 40 FS10 MB 405/1 - RSD 20 · 1
226.43 EURexcl. VAT · import VAT and duties on delivery
Control devices for Riello 40 FS10 MB 405/1 - RSD 20 · 1
—on request
Ignition cables and connectors for Riello 40 FS10 MB 405/1 - RSD 20 · 1
—on request
Ignition transformers for Riello 40 FS10 MB 405/1 - RSD 20 · 1
98.34 EURexcl. VAT · import VAT and duties on delivery
Impellers for Riello 40 FS10 MB 405/1 - RSD 20 · 1
—on request
Ionization & ignition electrodes for Riello 40 FS10 MB 405/1 - RSD 20 · 1
—on request
Pressure switches for Riello 40 FS10 MB 405/1 - RSD 20 · 1
—on request
What is inside Riello 40 FS10 MB 405/1 - RSD 20
Components named in the manufacturer's documentation.
- RMG88.62C2 in stock
- DUNGS VPS 504
- RIELLO 40 FS10 564T30
Specifications
FuelGas
Output52–116 kW
Gas connectionRp 1/2"
Firing stagesSingle-stage
Fan motor power90 W
Supply voltage220 V
Power consumption130 W
Net weight17 kg
Protection class (IP)IP40
Flame tube length110 mm
Flame tube diameter105 mm
Flame tube typestandard
Back pressure (combustion chamber)0–1.6 mbar
Gas consumption5.2–11.6 m³/h
Gas train pressure5.5–9.5 mbar
Noise level67 dB
Operating temperature0–40 °C
Overall dimensions45.7 x 30.5 x 26.2 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello 40 FS10 · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- 40 FS10
13 parts · 3756435 - 40 FS10 MB 405/1 - RSD 20
13 parts · 3756435-3970530 - 40 FS10 MB 407/1 - RSD 20
13 parts · 3756435-3970531
Questions about Riello 40 FS10 MB 405/1 - RSD 20 parts
Which burner components fit Riello 40 FS10 MB 405/1 - RSD 20?
These fit Riello 40 FS10 MB 405/1 - RSD 20: Riello Automation Base 3002256; Riello Gas Pressure Measurement Nipple 3005447; Riello Fixing bracket 3007265; Riello Gas Ramp 3970530; Riello Gas Manifold 3970531. ↑
Which burner pipes, flanges & connections fit Riello 40 FS10 MB 405/1 - RSD 20?
These fit Riello 40 FS10 MB 405/1 - RSD 20: Riello Flange Gasket 3005795. ↑
Which control boxes fit Riello 40 FS10 MB 405/1 - RSD 20?
These fit Riello 40 FS10 MB 405/1 - RSD 20: Riello Burner control RMG88.62C2 3013073. ↑
Which control devices fit Riello 40 FS10 MB 405/1 - RSD 20?
These fit Riello 40 FS10 MB 405/1 - RSD 20: Riello Burner RMG508 SE / LMO88.680C2RL 3001138. ↑
Which ignition cables and connectors fit Riello 40 FS10 MB 405/1 - RSD 20?
These fit Riello 40 FS10 MB 405/1 - RSD 20: Riello Ionization Electrode Cable 3008453. ↑
Which ignition transformers fit Riello 40 FS10 MB 405/1 - RSD 20?
These fit Riello 40 FS10 MB 405/1 - RSD 20: Cofi Ignition transformer TRS830P. ↑
