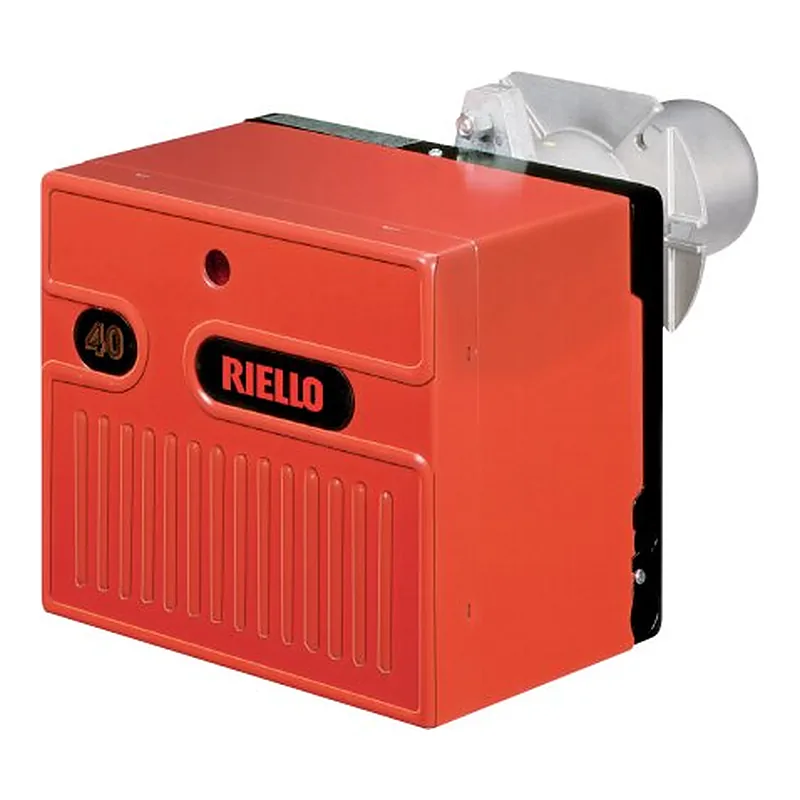

Riello 40 FS15 MB 405/1 - RSD 20 — spare parts
- Fuel
- Gas
- Output
- 81–175 kW
- Parts
- 11
- Factory code
- 3756803-3970530
- Series
- 40 FS15 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello 40 FS15 MB 405/1 - RSD 20 · 4
—on request
—on request
—on request
Ignition cables and connectors for Riello 40 FS15 MB 405/1 - RSD 20 · 2
—on request
—on request
Pressure switches for Riello 40 FS15 MB 405/1 - RSD 20 · 2
—on request
—on request
Burner pipes, flanges & connections for Riello 40 FS15 MB 405/1 - RSD 20 · 1
—on request
Control boxes for Riello 40 FS15 MB 405/1 - RSD 20 · 1
226.43 EURexcl. VAT · import VAT and duties on delivery
Ignition transformers for Riello 40 FS15 MB 405/1 - RSD 20 · 1
85.98 EURexcl. VAT · import VAT and duties on delivery
What is inside Riello 40 FS15 MB 405/1 - RSD 20
Components named in the manufacturer's documentation.
- RMG88.62C2 in stock
Specifications
FuelGas
Output81–175 kW
Gas connectionRp 1/2"
Firing stagesSingle-stage
Fan motor power150 W
Supply voltage220 V
Power consumption240 W
Net weight17 kg
Protection class (IP)IP40
Flame tube length120 mm
Flame tube diameter125 mm
Flame tube typestandard
Back pressure (combustion chamber)0–4.2 mbar
Gas consumption8.1–17.5 m³/h
Gas train pressure5.8–19.8 mbar
Noise level70 dB
Operating temperature0–40 °C
Overall dimensions50.9 x 35 x 29.8 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello 40 FS15 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- 40 FS15
11 parts · 3756803 - 40 FS15 MB 405/1 - RSD 20
11 parts · 3756803-3970530 - 40 FS15 MB 407/1 - RSD 20
11 parts · 3756803-3970531 - 40 FS15 TL
11 parts · 3756803.1 - 40 FS15 TL MB 405/1 - RSD 20
11 parts · 3756803.1-3970530
Questions about Riello 40 FS15 MB 405/1 - RSD 20 parts
Which burner components fit Riello 40 FS15 MB 405/1 - RSD 20?
These fit Riello 40 FS15 MB 405/1 - RSD 20: Riello Fixing bracket 3003409; Riello Gas Pressure Measurement Nipple 3005447; Riello Gas Ramp 3970530; Riello Gas Manifold 3970531. ↑
Which ignition cables and connectors fit Riello 40 FS15 MB 405/1 - RSD 20?
These fit Riello 40 FS15 MB 405/1 - RSD 20: Riello Ignition Electrode Cable 3002689; Riello Ionization Electrode Cable 3008453. ↑
Which pressure switches fit Riello 40 FS15 MB 405/1 - RSD 20?
These fit Riello 40 FS15 MB 405/1 - RSD 20: Dungs Pressure switch 272336; FBR Pressure switch 172123. ↑
Which burner pipes, flanges & connections fit Riello 40 FS15 MB 405/1 - RSD 20?
These fit Riello 40 FS15 MB 405/1 - RSD 20: Riello Flange Gasket 3006710. ↑
Which control boxes fit Riello 40 FS15 MB 405/1 - RSD 20?
These fit Riello 40 FS15 MB 405/1 - RSD 20: Riello Burner control RMG88.62C2 3013073. ↑
Which ignition transformers fit Riello 40 FS15 MB 405/1 - RSD 20?
These fit Riello 40 FS15 MB 405/1 - RSD 20: Fida Compact ignition transformer 8/30PM TE086D. ↑
