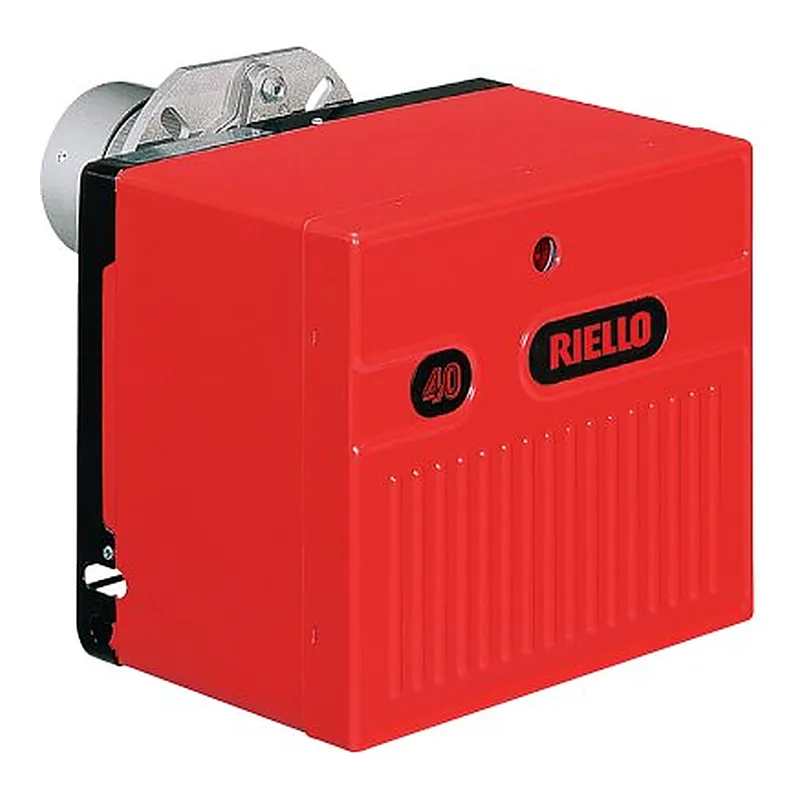

Riello 40 G10 — spare parts
- Fuel
- Oil
- Output
- 54–120 kW
- Parts
- 6
- Versions
- 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello 40 G10 · 2
—on request
Burner pipes, flanges & connections for Riello 40 G10 · 1
—on request
Burners for Riello 40 G10 · 1
—on request
Impellers for Riello 40 G10 · 1
—on request
Oil pumps for Riello 40 G10 · 1
—on request
What is inside Riello 40 G10
Components named in the manufacturer's documentation.
- 223002918
- 23007800
- 33008451
- 530SE
- 705M1
- 706M1
- 93001156
- control-box
- ignition-transformer
Specifications
FuelOil
Output54–120 kW
Firing stagesSingle-stage
Supply voltage220 V
Power consumption170 W
Length369 mm
Width305 mm
Height262 mm
Net weight12 kg
Protection class (IP)IP40
Flame tube length108 mm
Flame tube diameter105 mm
Flame tube typestandard
Back pressure (combustion chamber)0–0.8 mbar
Noise level74 dB
Overall dimensions36.9 x 30.5 x 26.2 cm
Delivery scopewith combustion head
Versions
40 G1020006157
40 G103746412
3746457
Questions about Riello 40 G10 parts
Which burner components fit Riello 40 G10?
These fit Riello 40 G10: Riello Air damper 3000879; Riello Equalizing Disc 3006392. ↑
Which burner pipes, flanges & connections fit Riello 40 G10?
These fit Riello 40 G10: Riello Flange 3005791. ↑
Which burners fit Riello 40 G10?

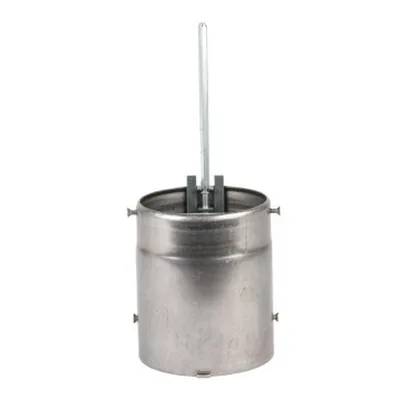

These fit Riello 40 G10: Riello Burner Tube 3006151. ↑
Which impellers fit Riello 40 G10?
These fit Riello 40 G10: Riello Fan Impeller 3005788. ↑
Which oil pumps fit Riello 40 G10?
These fit Riello 40 G10: Riello Oil pump 3007800. ↑
