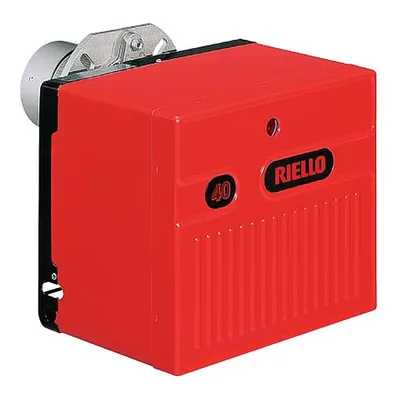

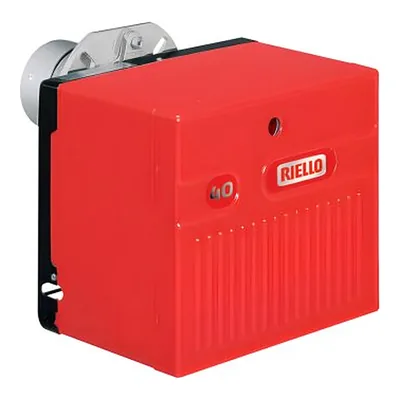

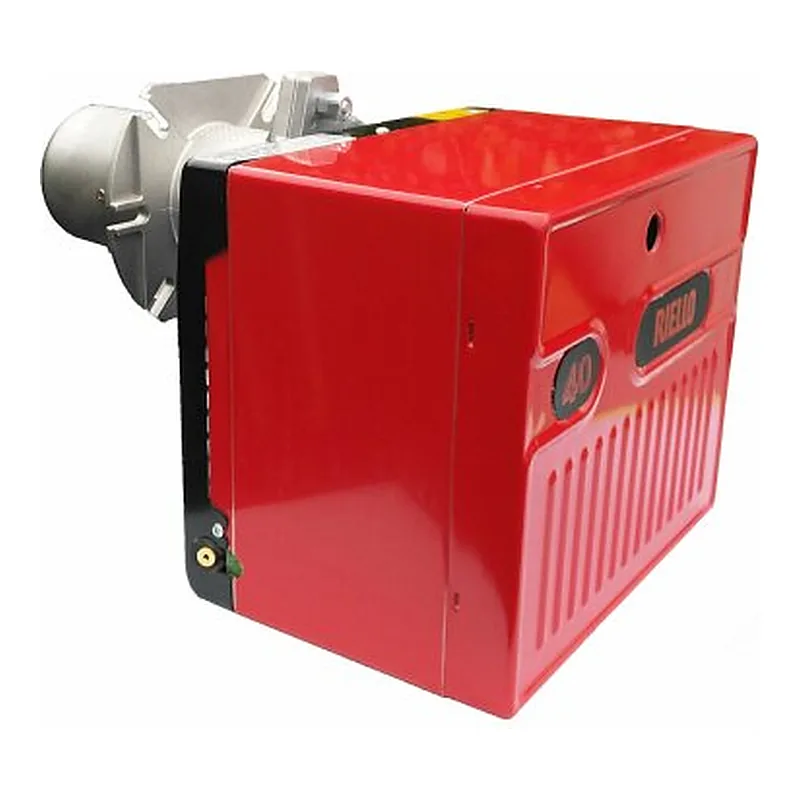

Riello 40 G20 — spare parts
- Fuel
- Oil
- Output
- 95–213 kW
- Parts
- 6
- Versions
- 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello 40 G20 · 1
Burner pipes, flanges & connections for Riello 40 G20 · 1
—on request
Motors for Riello 40 G20 · 1
—on request
Oil pumps for Riello 40 G20 · 1
—on request
Venturi tubes for Riello 40 G20 · 1
—on request
Wiring, cables & electrical components for Riello 40 G20 · 1
—on request
What is inside Riello 40 G20
Components named in the manufacturer's documentation.
- 23007800PUMP
- 3002919ELECTRODE ASSEMBLY
- 3005820MOTOR
- 530SE*
- 705M
- flame sensor
- ignition transformer
- Насос
- 530E CONTROL BOX
- RIELLO 40 G20
Specifications
FuelOil
Output95–213 kW
Firing stagesSingle-stage
Fan motor power150 W
Supply voltage220 V
Power consumption300 W
Length413 mm
Width350 mm
Height298 mm
Net weight15 kg
Protection class (IP)IP40
Flame tube length118 mm
Flame tube diameter125 mm
Flame tube typestandard
Back pressure (combustion chamber)0–0.9 mbar
Noise level74 dB
Overall dimensions41.3 x 35 x 29.8 cm
Delivery scopewith combustion head
Versions
40 G2020013619
3452736
40 G203747412
Questions about Riello 40 G20 parts
Which burner components fit Riello 40 G20?
These fit Riello 40 G20: Riello Flame Head 3006265. ↑
Which burner pipes, flanges & connections fit Riello 40 G20?
These fit Riello 40 G20: Riello Flange 3005814. ↑
Which motors fit Riello 40 G20?
These fit Riello 40 G20: Riello Motor 3005820. ↑
Which oil pumps fit Riello 40 G20?
These fit Riello 40 G20: Riello Oil pump 3007800. ↑
Which venturi tubes fit Riello 40 G20?
These fit Riello 40 G20: Riello Liquid Fuel Tube 3005819. ↑
Which wiring, cables & electrical components fit Riello 40 G20?
These fit Riello 40 G20: Riello Capacitor 5 uF 3005802. ↑
