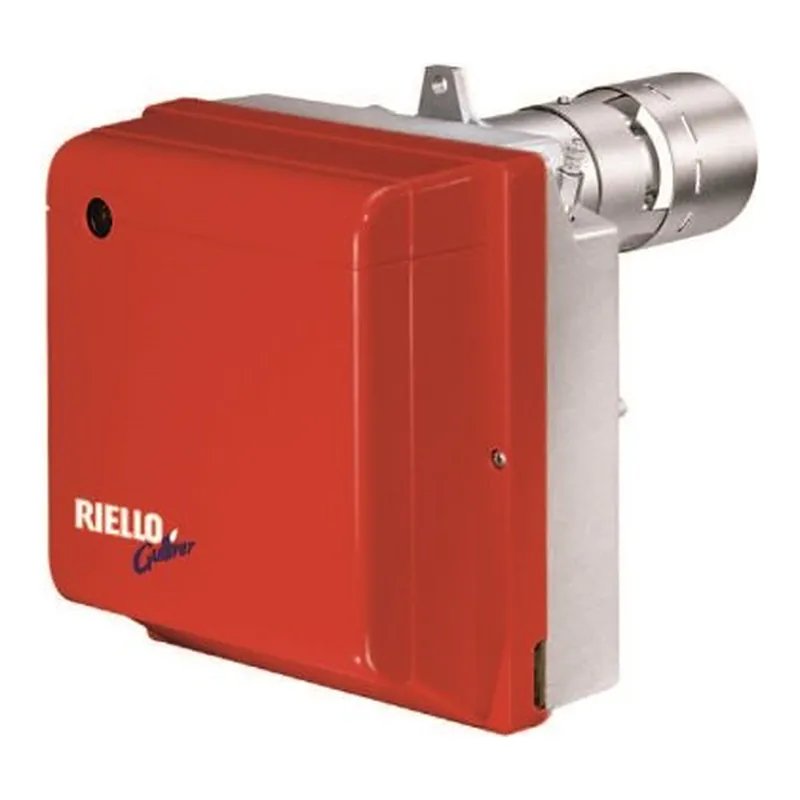

Riello BG6.1D — spare parts
- Fuel
- Oil
- Output
- 53.8–104 kW
- Parts
- 7
- Factory code
- 20015693
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello BG6.1D · 3
—on request
—on request
Actuators for Riello BG6.1D · 1
Boiler filters, gaskets & seals for Riello BG6.1D · 1
—on request
Motors for Riello BG6.1D · 1
—on request
Oil filters, coils, tubes & hoses for Riello BG6.1D · 1
—on request
Specifications
FuelOil
Output53.8–104 kW
Firing stagesTwo-stage
Fan motor power390 W
Supply voltage220 V
Protection class (IP)IP40
Flame tube length284 mm
Flame tube diameter131 mm
Flame tube typestandard
Back pressure (combustion chamber)0–1.7 mbar
Delivery scopewith combustion head
Questions about Riello BG6.1D parts
Which burner components fit Riello BG6.1D?
These fit Riello BG6.1D: Baltur Air damper 0023020027; Riello Sealing Rings 3007156; Riello Adjustment Screw 3007648. ↑
Which actuators fit Riello BG6.1D?
These fit Riello BG6.1D: Riello Hydraulic Actuator for Air Damper 3007784. ↑
Which boiler filters, gaskets & seals fit Riello BG6.1D?
These fit Riello BG6.1D: Riello Sealing Rings 3007028. ↑
Which motors fit Riello BG6.1D?
These fit Riello BG6.1D: Riello Electric Motor 3008492. ↑
Which oil filters, coils, tubes & hoses fit Riello BG6.1D?
These fit Riello BG6.1D: Riello Liquid Fuel Hose 3005720. ↑
