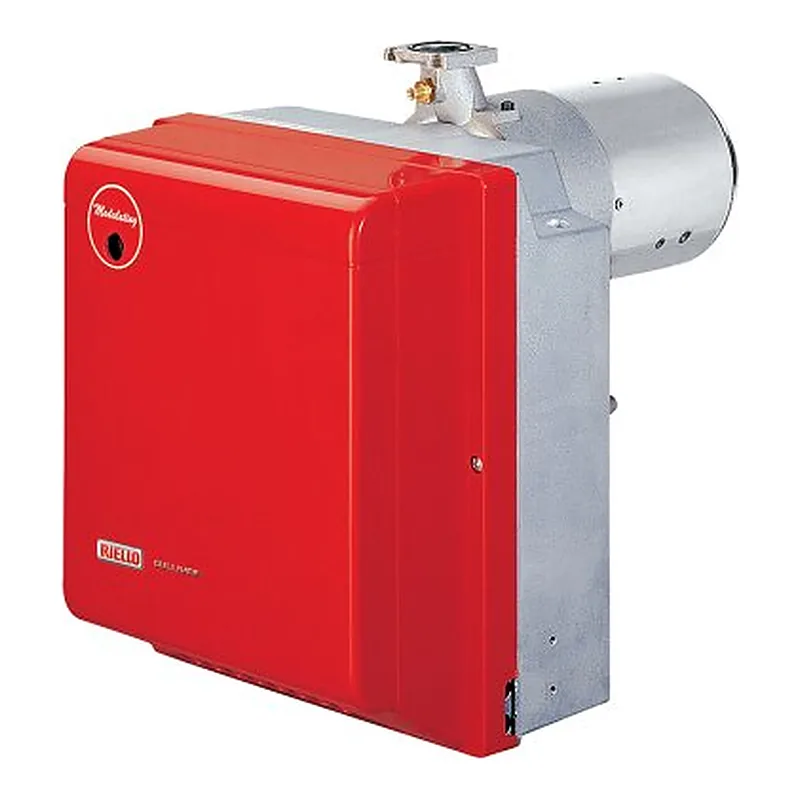

Riello Gulliver BS3/M — gas burner, photo 1

Riello Gulliver BS3/M — spare parts

Fuel
Gas
Output
48–195 kW
Parts
13
Versions
2

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Riello Gulliver BS3/M · 4

Plugs and connectors for Riello Gulliver BS3/M · 2

Wiring, cables & electrical components for Riello Gulliver BS3/M · 2

Actuators for Riello Gulliver BS3/M · 1

Burner pipes, flanges & connections for Riello Gulliver BS3/M · 1

Burners for Riello Gulliver BS3/M · 1

Control devices for Riello Gulliver BS3/M · 1

Pressure switches for Riello Gulliver BS3/M · 1

What is inside Riello Gulliver BS3/M

Components named in the manufacturer's documentation.

  • 3007444
  • 3002475
  • 3002478
  • 3002585
  • 3002844
  • 3002845
  • 3002851
  • 3002853
  • 3007476
  • 3007988
  • 3008930
  • 3008931
  • 3008932
  • LGW 10 A2
  • LME22.2
  • SQN91.57
  • LME LME22.233C2RL
  • SQN SQN91.570A2793

Specifications

FuelGas
Output48–195 kW
Gas connectionRp 3/4"
Fan motor power150 W
Supply voltage220 V
Power consumption350 W
Net weight16 kg
Protection class (IP)IP40
Flame tube length168 mm
Flame tube diameter129 mm
Flame tube typeadjustable
Back pressure (combustion chamber)-0.5–5.15 mbar
Gas consumption4.8–19.5 m³/h
Gas train pressure4–18 mbar
Noise level76 dB
Operating temperature0–50 °C
Overall dimensions40.8 x 33 x 39.1 cm
Delivery scopewith combustion head

Versions

20102636
3762350

Other versions of this seriesRiello Gulliver BS3/M · 3

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Riello Gulliver BS3/M parts

Which burner components fit Riello Gulliver BS3/M?

These fit Riello Gulliver BS3/M: Riello Mixing Device Head 3002849; Riello Air Damper Regulator 3002852; Riello Gas Pressure Measurement Nipple 3005447; Riello Air Flow Distributor 3007995. ↑

Which plugs and connectors fit Riello Gulliver BS3/M?

These fit Riello Gulliver BS3/M: Riello Plug 4P 3006957; Riello 6-pin Connector 3007425. ↑

Which wiring, cables & electrical components fit Riello Gulliver BS3/M?

These fit Riello Gulliver BS3/M: Riello Terminal Block 3002479; Riello Capacitor 3007655. ↑

Which actuators fit Riello Gulliver BS3/M?

These fit Riello Gulliver BS3/M: Riello Actuator 3002845. ↑

Which burner pipes, flanges & connections fit Riello Gulliver BS3/M?

These fit Riello Gulliver BS3/M: Riello Connecting Elbow 3007979. ↑

Which burners fit Riello Gulliver BS3/M?

These fit Riello Gulliver BS3/M: Riello Burner Head Extension 3007992. ↑
