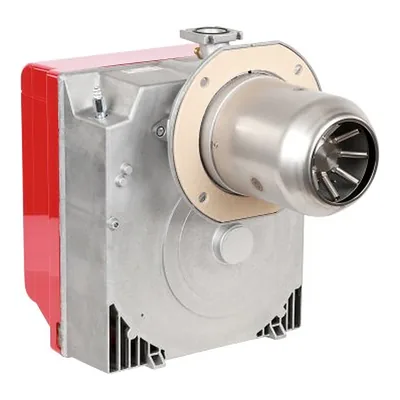

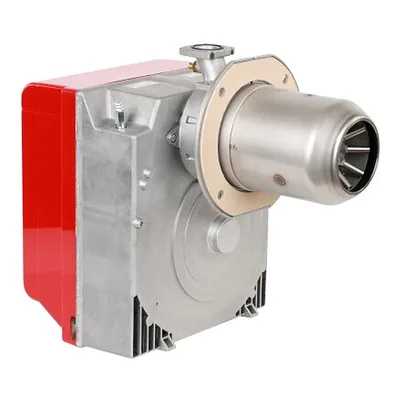

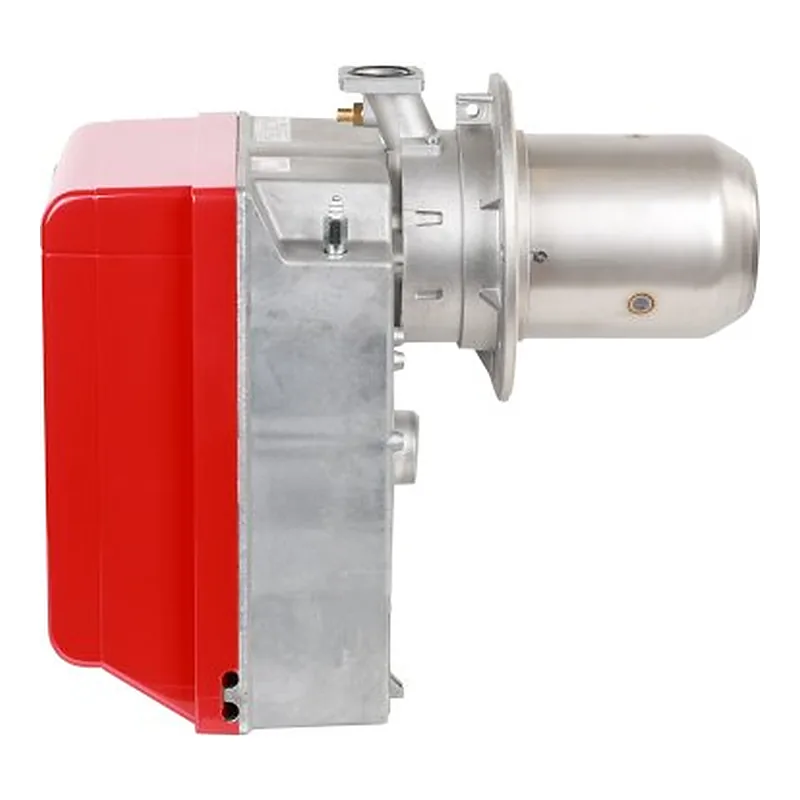

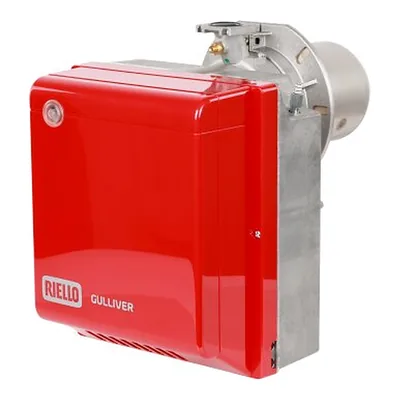

Riello Gulliver BS4F — spare parts
- Fuel
- Gas
- Output
- 110–249 kW
- Parts
- 14
- Factory code
- 3761471
- Series
- Gulliver BS4F · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello Gulliver BS4F · 4
—on request
—on request
—on request
Burner pipes, flanges & connections for Riello Gulliver BS4F · 2
—on request
—on request
Burners for Riello Gulliver BS4F · 2
—on request
—on request
Pressure switches for Riello Gulliver BS4F · 2
—on request
—on request
Blast tubes & combustion heads for Riello Gulliver BS4F · 1
—on request
Cables for Riello Gulliver BS4F · 1
—on request
Motors for Riello Gulliver BS4F · 1
—on request
Wiring, cables & electrical components for Riello Gulliver BS4F · 1
—on request
What is inside Riello Gulliver BS4F
Components named in the manufacturer's documentation.
Specifications
FuelGas
Output110–249 kW
Firing stagesSingle-stage
Min. gas pressure5.02 mbar
Fan motor power250 W
Supply voltage220 V
Power consumption420 W
Length469 mm
Width300 mm
Height392 mm
Net weight16.5 kg
Protection class (IP)IP20
Flame tube diameter137 mm
Flame tube typeadjustable
Back pressure (combustion chamber)-0.2–3.6 mbar
Gas consumption11–25 m³/h
Gas train pressure5.02–17.9 mbar
Noise level82 dB
Operating temperature0–40 °C
Overall dimensions46.9 x 30 x 39.2 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesRiello Gulliver BS4F · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- Gulliver BS4F
14 parts · 3761471 - Gulliver BS4F MB 407/1 - F3SD 20
13 parts · 3761471-3970548 - Gulliver BS4F MB 410/1 - F3SD 20
12 parts · 3761471-3970549
Questions about Riello Gulliver BS4F parts
Which burner components fit Riello Gulliver BS4F?
These fit Riello Gulliver BS4F: Riello Air damper 3002866; Riello Gas Pressure Measurement Nipple 3005447; Riello Air Flow Distributor 3008501; Riello Gas Manifold 3970550. ↑
Which burner pipes, flanges & connections fit Riello Gulliver BS4F?
These fit Riello Gulliver BS4F: Riello Flange 3008493; Riello Connecting Coupling 3008502. ↑
Which burners fit Riello Gulliver BS4F?
These fit Riello Gulliver BS4F: Riello Burner Head Extension Kit 3001016; Riello Burner Head Extension 3007992. ↑
Which pressure switches fit Riello Gulliver BS4F?
These fit Riello Gulliver BS4F: Riello Pressure Switch Power Cable 3002972; Riello Pressure switch 3007444. ↑
Which blast tubes & combustion heads fit Riello Gulliver BS4F?
These fit Riello Gulliver BS4F: Riello Blast tube head 3008503. ↑
Which cables fit Riello Gulliver BS4F?
These fit Riello Gulliver BS4F: Riello Motor Power Cable 3007454. ↑
