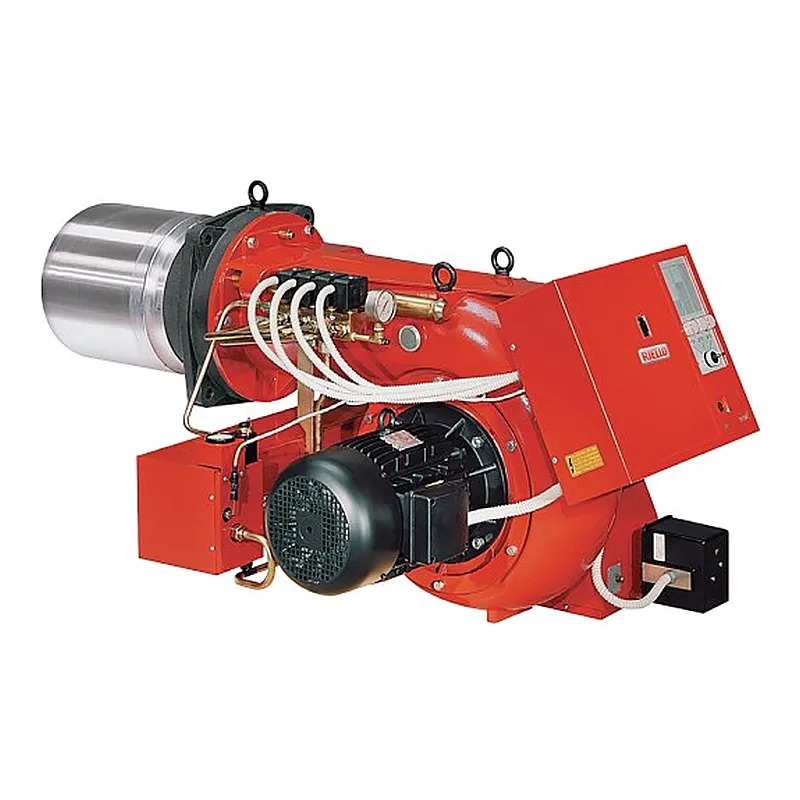

Riello PRESS 140 T/N TC FS1 — spare parts
- Fuel
- Oil
- Output
- 320–1600 kW
- Parts
- 4
- Versions
- 2
- Series
- PRESS 140 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello PRESS 140 T/N TC FS1 · 1
Burner pipes, flanges & connections for Riello PRESS 140 T/N TC FS1 · 1
—on request
Oil preheaters for Riello PRESS 140 T/N TC FS1 · 1
—on request
Valve coils for Riello PRESS 140 T/N TC FS1 · 1
—on request
Specifications
FuelOil
Output320–1600 kW
Firing stagesThree-stage
Power consumption19000 W
Net weight220 kg
Protection class (IP)IP40
Flame tube length323 mm
Flame tube diameter222 mm
Flame tube typestandard
Back pressure (combustion chamber)0–12.5 mbar
Overall dimensions121.3 x 79.6 x 57.8 cm
Delivery scopewith combustion head
Versions
20205053
3436833
Other versions of this seriesRiello PRESS 140 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- PRESS 140
3 parts · 20205053 · 20206097 +3 - PRESS 140 P/N TC FS1
12 parts · 20206097 · 3436876 - PRESS 140 T/G TC FS1
11 parts · 3476823 - PRESS 140 T/N ECO TC
11 parts · 20152028 - PRESS 140 T/N TC FS1
4 parts · 20205053 · 3436833
Questions about Riello PRESS 140 T/N TC FS1 parts
Which burner components fit Riello PRESS 140 T/N TC FS1?
These fit Riello PRESS 140 T/N TC FS1: Riello Connecting Transmission 3003092. ↑
Which burner pipes, flanges & connections fit Riello PRESS 140 T/N TC FS1?
These fit Riello PRESS 140 T/N TC FS1: Riello Nipple 3003224. ↑
Which oil preheaters fit Riello PRESS 140 T/N TC FS1?
These fit Riello PRESS 140 T/N TC FS1: Riello Tank with Heater 3003741. ↑
Which valve coils fit Riello PRESS 140 T/N TC FS1?
These fit Riello PRESS 140 T/N TC FS1: Riello Solenoid 3002293. ↑
