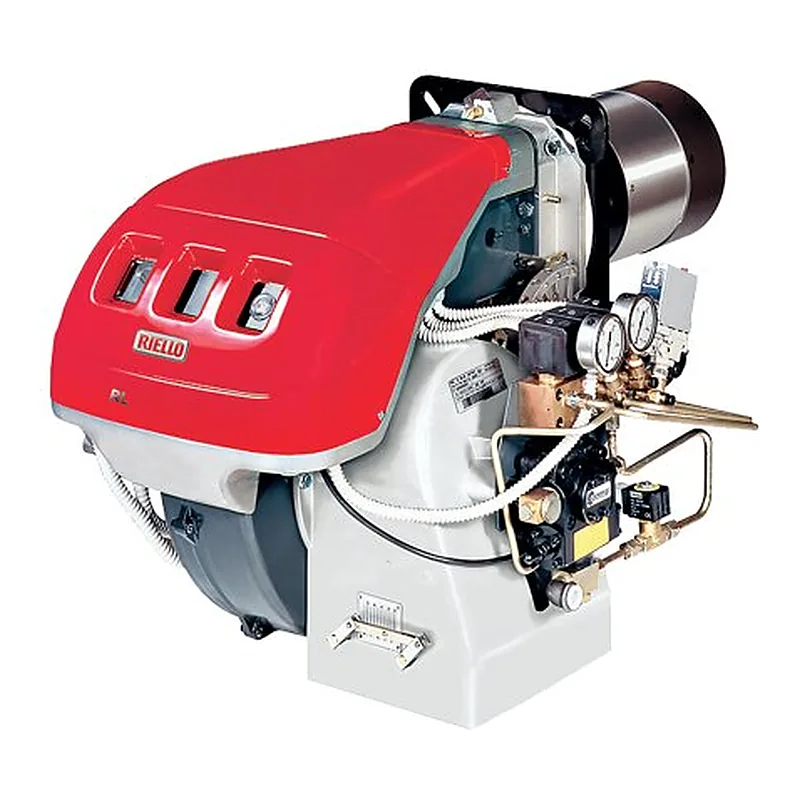

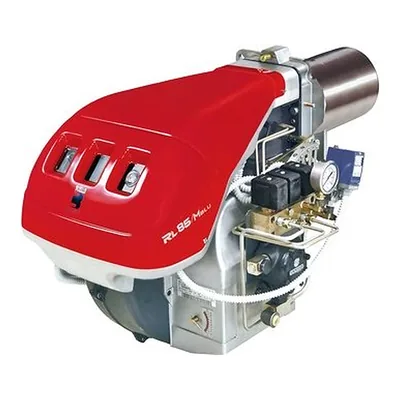

Riello RL 100/M TC FS1 — spare parts
- Fuel
- Oil
- Output
- 332–1482 kW
- Parts
- 11
- Versions
- 2
- Series
- RL 100/M · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RL 100/M TC FS1 · 3
Boiler insulation for Riello RL 100/M TC FS1 · 1
—on request
Boiler pipes, flanges & connections for Riello RL 100/M TC FS1 · 1
—on request
Control boxes for Riello RL 100/M TC FS1 · 1
—on request
Control devices for Riello RL 100/M TC FS1 · 1
—on request
Flame sensors for Riello RL 100/M TC FS1 · 1
—on request
Ignition components for Riello RL 100/M TC FS1 · 1
—on request
Oil valves for Riello RL 100/M TC FS1 · 1
—on request
Thermometers and manometers for Riello RL 100/M TC FS1 · 1
—on request
Specifications
FuelOil
Output332–1482 kW
Fan motor power1800 W
Power consumption2100 W
Net weight62 kg
Protection class (IP)IP44
Flame tube length250 mm
Flame tube diameter179 mm
Flame tube typeshort
Back pressure (combustion chamber)-1–11 mbar
Overall dimensions93 x 59.9 x 55.5 cm
Delivery scopewith combustion head
Versions
20166481
3477280
Other versions of this seriesRiello RL 100/M · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RL 100/M
2 parts · 20166481 · 3477280 - RL 100/M TC FS1
11 parts · 20166481 · 3477280
Questions about Riello RL 100/M TC FS1 parts
Which burner components fit Riello RL 100/M TC FS1?
These fit Riello RL 100/M TC FS1: Riello Fixing Bracket 3003495; Riello Spring 3012356; Riello Bearing 3012357. ↑
Which boiler insulation fit Riello RL 100/M TC FS1?
These fit Riello RL 100/M TC FS1: Riello Soundproofing 3003952. ↑
Which boiler pipes, flanges & connections fit Riello RL 100/M TC FS1?
These fit Riello RL 100/M TC FS1: Riello Flange Gasket 3003991. ↑
Which control boxes fit Riello RL 100/M TC FS1?
These fit Riello RL 100/M TC FS1: Riello Distribution Block 3012474. ↑
Which control devices fit Riello RL 100/M TC FS1?
These fit Riello RL 100/M TC FS1: Riello Fuel-Air Ratio Regulator 3012358. ↑
Which flame sensors fit Riello RL 100/M TC FS1?

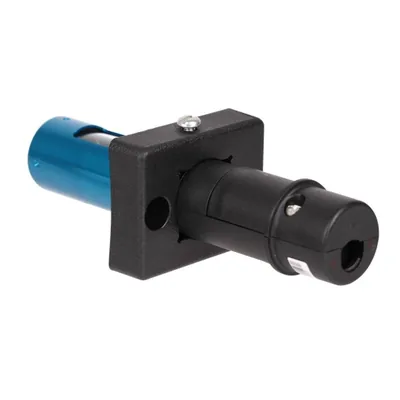

These fit Riello RL 100/M TC FS1: Riello Flame sensor 20144943. ↑
