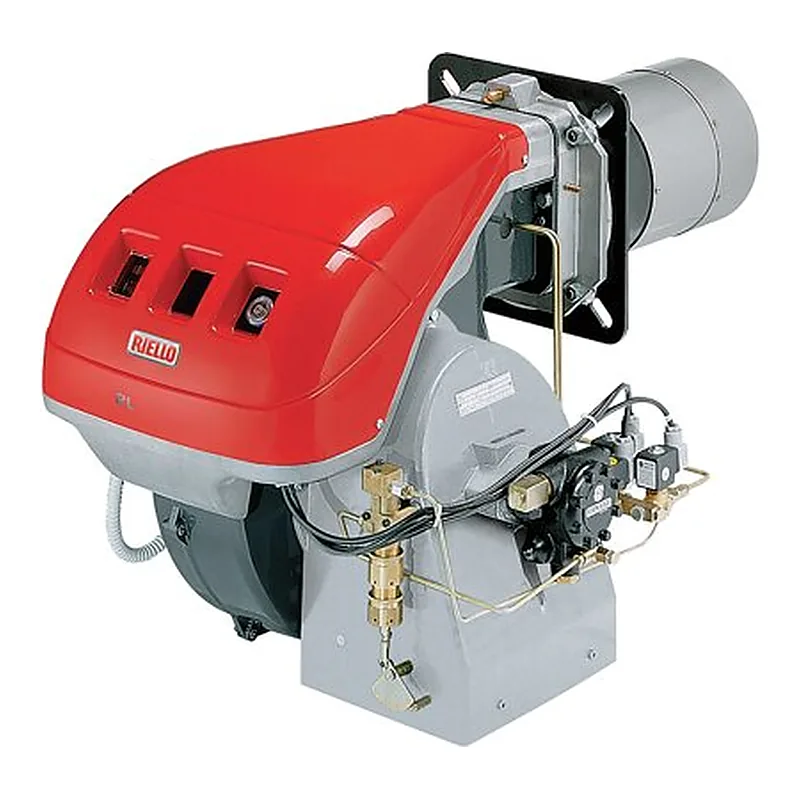

Riello RL 130 TC FS1 — spare parts
- Fuel
- Oil
- Output
- 486–1540 kW
- Parts
- 12
- Factory code
- 20057368
- Series
- RL 130 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RL 130 TC FS1 · 2
—on request
Burners for Riello RL 130 TC FS1 · 2
—on request
—on request
Ignition components for Riello RL 130 TC FS1 · 2
—on request
—on request
Motors for Riello RL 130 TC FS1 · 2
—on request
—on request
Boiler insulation for Riello RL 130 TC FS1 · 1
—on request
Boiler pipes, flanges & connections for Riello RL 130 TC FS1 · 1
—on request
Burner pipes, flanges & connections for Riello RL 130 TC FS1 · 1
—on request
Sensors and switches for Riello RL 130 TC FS1 · 1
—on request
What is inside Riello RL 130 TC FS1
Components named in the manufacturer's documentation.
- RIELLO RL 100
- RIELLO RL 130
- RIELLO RL 190
- RIELLO RL 250 MZ
- RIELLO RL 34 MZ
- RIELLO RL 44 MZ
- RIELLO RL 50
- RIELLO RL 64 MZ
- RIELLO RL 70
Specifications
FuelOil
Output486–1540 kW
Firing stagesTwo-stage
Power consumption2600 W
Net weight66 kg
Flame tube length250 mm
Flame tube diameter189 mm
Flame tube typeshort
Back pressure (combustion chamber)-1–10.4 mbar
Overall dimensions93 x 62.5 x 55.5 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RL 130 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RL 130
4 parts · 20057368 · 3475432 +1 - RL 130 TC
12 parts · 3475432 - RL 130 TC FS1
12 parts · 20057368 - RL 130 TL FS1
12 parts · 3475433
Questions about Riello RL 130 TC FS1 parts
Which burner components fit Riello RL 130 TC FS1?
These fit Riello RL 130 TC FS1: Riello Air Damper 3003824; Riello Fire Tube 3003989. ↑
Which burners fit Riello RL 130 TC FS1?
These fit Riello RL 130 TC FS1: Riello Burner Igniter BG0910A + RF9.5 3003959; Riello Burner Cover 3013119. ↑
Which ignition components fit Riello RL 130 TC FS1?
These fit Riello RL 130 TC FS1: Riello Igniter BG0910A + RF9.62 3003960; Riello Igniter BG1210A + RF9.10 3003961. ↑
Which motors fit Riello RL 130 TC FS1?
These fit Riello RL 130 TC FS1: Riello Electric Motor 3003966; Riello Electric Motor 3003968. ↑
Which boiler insulation fit Riello RL 130 TC FS1?
These fit Riello RL 130 TC FS1: Riello Soundproofing 3003952. ↑
Which boiler pipes, flanges & connections fit Riello RL 130 TC FS1?
These fit Riello RL 130 TC FS1: Riello Flange Gasket 3003991. ↑
