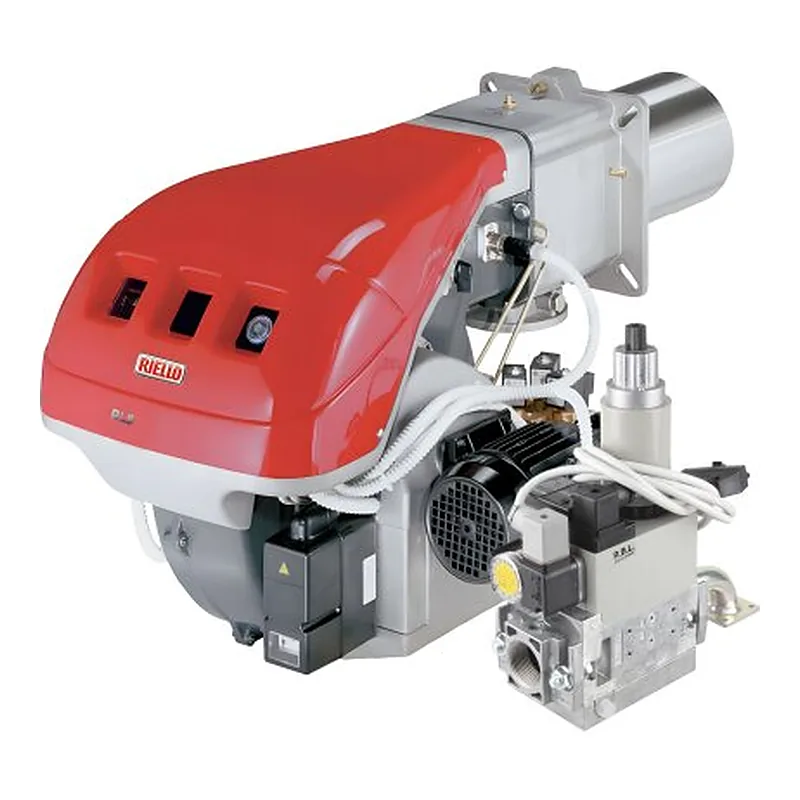

Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 — spare parts
- Output
- 349–1163 kW
- Parts
- 13
- Factory code
- 20147799-3970543
- Series
- RLS 100 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Motors for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 3
—on request
—on request
Burner components for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 2
—on request
—on request
Burner pipes, flanges & connections for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 2
—on request
—on request
Boiler pipes, flanges & connections for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 1
—on request
Burners for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 1
—on request
Control devices for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 1
—on request
Ignition components for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 1
—on request
Ionization & ignition electrodes for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 1
—on request
Sensors and switches for Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 · 1
—on request
What is inside Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20
Components named in the manufacturer's documentation.
- RFGO-A22
- LKS 210
Specifications
Output349–1163 kW
Gas connectionRp 1 1/4"
Firing stagesTwo-stage
Fan motor power1500 W
Power consumption2100 W
Net weight78 kg
Protection class (IP)IP40
Flame tube length250 mm
Flame tube diameter189 mm
Flame tube typestandard
Back pressure (combustion chamber)0–10 mbar
Gas consumption35–116 m³/h
Gas train pressure38–77.5 mbar
Noise level88.5 dB
Operating temperature0–40 °C
Overall dimensions116.1 x 70.7 x 55.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RLS 100 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 100 TC
13 parts · 20205702 · 3485201 - RLS 100 TC LP FS1
12 parts · 20208902 - RLS 100 TC LP FS1 MB 412/2 - F3SD 20
13 parts · 20147799-3970543 - RLS 100 TL LP FS1
12 parts · 20208904
Questions about Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20 parts
Which motors fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20?
These fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20: Riello Electric Motor 3003966; Riello Electric Motor 3003968; Riello Electric Motor Clutch 3013828. ↑
Which burner components fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20?
These fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20: Riello Gas Pressure Measurement Nipple 3012049; Riello Air damper 3012422. ↑
Which burner pipes, flanges & connections fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20?
These fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20: Riello Gas Connection Flange 3006803; Riello Gas Elbow 3012042. ↑
Which boiler pipes, flanges & connections fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20?
These fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20: Riello Flange Gasket 3003991. ↑
Which burners fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20?
These fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20: Riello Burner Igniter BG0910A + RF9.5 3003959. ↑
Which control devices fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20?
These fit Riello RLS 100 TC LP FS1 MB 412/2 - F3SD 20: Riello Furnace Automation RFGO-A22 20144923. ↑
