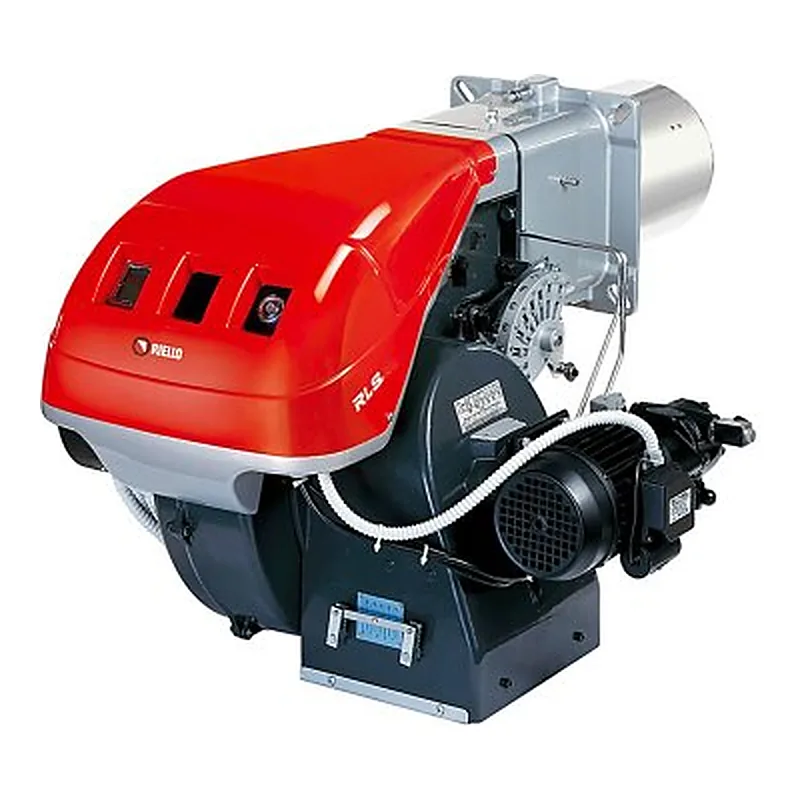

Riello RLS 120/M MX TC — spare parts
- Output
- 300–1200 kW
- Parts
- 12
- Versions
- 2
- Series
- RLS 120/M · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 120/M MX TC · 2
—on request
Burner pipes, flanges & connections for Riello RLS 120/M MX TC · 2
—on request
—on request
Control devices for Riello RLS 120/M MX TC · 2
—on request
—on request
Ignition components for Riello RLS 120/M MX TC · 2
—on request
—on request
Motors for Riello RLS 120/M MX TC · 2
—on request
—on request
Actuators for Riello RLS 120/M MX TC · 1
—on request
Boiler pipes, flanges & connections for Riello RLS 120/M MX TC · 1
—on request
What is inside Riello RLS 120/M MX TC
Components named in the manufacturer's documentation.
- RFGO-A22
- SQN31
Specifications
Output300–1200 kW
Fan motor power2200 W
Power consumption3700 W
Net weight76 kg
Protection class (IP)IP40
Flame tube length260 mm
Flame tube diameter189 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–10.5 mbar
Gas consumption37–140 m³/h
Noise level90 dB
Operating temperature0–40 °C
Overall dimensions110 x 73.3 x 55.5 cm
Delivery scopewith combustion head
Versions
20147786
3898110
Other versions of this seriesRiello RLS 120/M · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 120/M MX TC
12 parts · 20147786 · 3898110 - RLS 120/M MX TC FS1
11 parts · 20205592 - RLS 120/M MX TC FS1 MB 412/1 CT RT 20
12 parts · 20147786-3970197-3000843
Questions about Riello RLS 120/M MX TC parts
Which burner components fit Riello RLS 120/M MX TC?
These fit Riello RLS 120/M MX TC: Riello Gas Pressure Measurement Nipple 3012049; Riello Spring 3012356. ↑
Which burner pipes, flanges & connections fit Riello RLS 120/M MX TC?
These fit Riello RLS 120/M MX TC: Riello Connecting Fitting 3006722; Riello Gas Connection Flange 3006803. ↑
Which control devices fit Riello RLS 120/M MX TC?
These fit Riello RLS 120/M MX TC: Riello Furnace Automation RFGO-A22 20144923; Riello Fuel-Air Ratio Regulator 3012358. ↑
Which ignition components fit Riello RLS 120/M MX TC?
These fit Riello RLS 120/M MX TC: Riello Igniter BG0910A + RF9.62 3003960; Riello Igniter BG1210A + RF9.10 3003961. ↑
Which motors fit Riello RLS 120/M MX TC?
These fit Riello RLS 120/M MX TC: Riello Electric Motor 3003968; Riello Electric Motor Clutch 3013828. ↑
Which actuators fit Riello RLS 120/M MX TC?
These fit Riello RLS 120/M MX TC: Riello Steering rod 3012060. ↑
