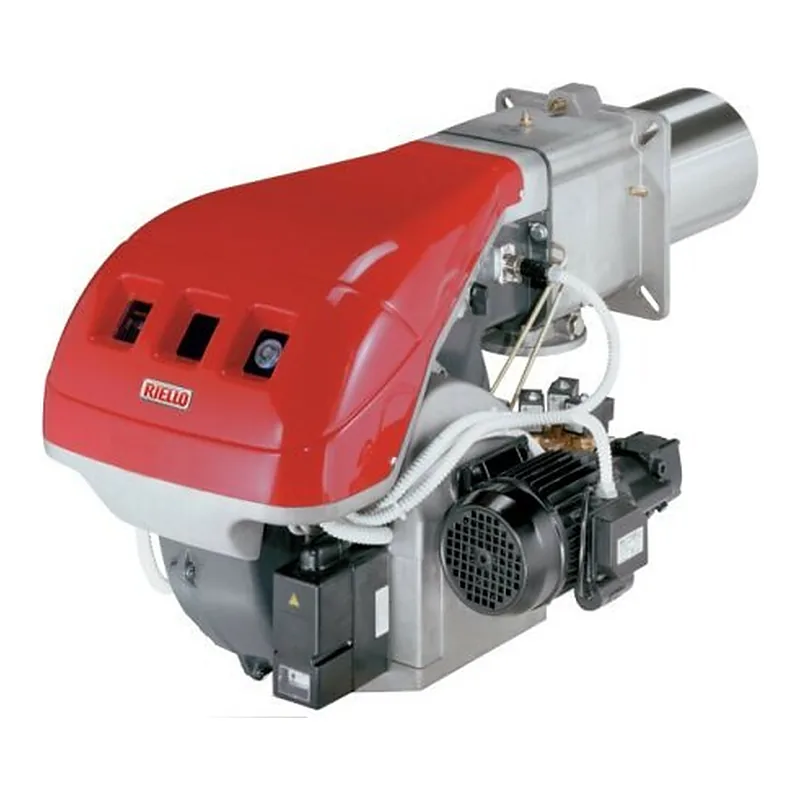

Riello RLS 130 — spare parts
- Output
- 465–1395 kW
- Parts
- 12
- Factory code
- 20205984
- Series
- RLS 130 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Motors for Riello RLS 130 · 3
—on request
—on request
Burner components for Riello RLS 130 · 2
—on request
—on request
Ignition components for Riello RLS 130 · 2
—on request
—on request
Boiler pipes, flanges & connections for Riello RLS 130 · 1
—on request
Burner pipes, flanges & connections for Riello RLS 130 · 1
—on request
Burners for Riello RLS 130 · 1
—on request
Ionization & ignition electrodes for Riello RLS 130 · 1
—on request
Sensors and switches for Riello RLS 130 · 1
—on request
Specifications
Output465–1395 kW
Firing stagesTwo-stage
Power consumption3200 W
Net weight76 kg
Protection class (IP)IP44
Flame tube length415 mm
Flame tube diameter189 mm
Flame tube typeextended
Back pressure (combustion chamber)0–9.5 mbar
Gas consumption47–140 m³/h
Noise level77.5 dB
Operating temperature0–40 °C
Overall dimensions116.1 x 73.3 x 18.9 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RLS 130 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 130
12 parts · 20205984 - RLS 130 TC
12 parts · 3485401 - RLS 130 TC LP FS1
13 parts · 20208905 - RLS 130 TC LP FS1 MB 415/2 - RT 20
13 parts · 20147800-3970183-3000843 - RLS 130 TL LP FS1
12 parts · 20208933
Questions about Riello RLS 130 parts
Which motors fit Riello RLS 130?
These fit Riello RLS 130: Riello Electric Motor 3003966; Riello Electric Motor 3003968; Riello Electric Motor Clutch 3013828. ↑
Which burner components fit Riello RLS 130?
These fit Riello RLS 130: Riello Gas Pressure Measurement Nipple 3012049; Riello Air damper 3012422. ↑
Which ignition components fit Riello RLS 130?
These fit Riello RLS 130: Riello Igniter BG0910A + RF9.62 3003960; Riello Igniter BG1210A + RF9.10 3003961. ↑
Which boiler pipes, flanges & connections fit Riello RLS 130?
These fit Riello RLS 130: Riello Flange Gasket 3003991. ↑
Which burner pipes, flanges & connections fit Riello RLS 130?
These fit Riello RLS 130: Riello Gas Elbow 3012042. ↑
Which burners fit Riello RLS 130?
These fit Riello RLS 130: Riello Burner Igniter BG0910A + RF9.5 3003959. ↑
