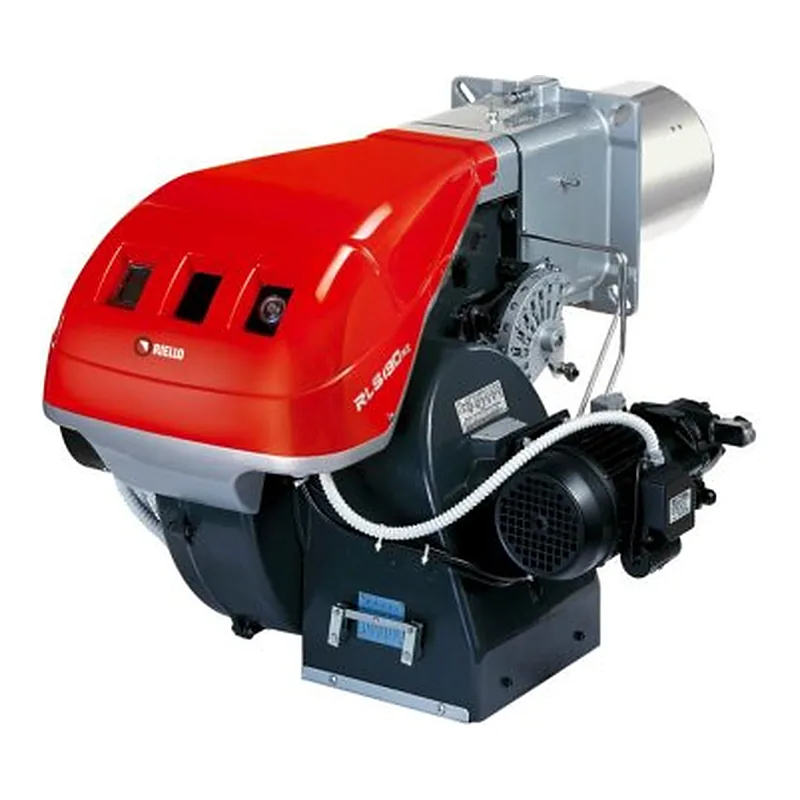

Riello RLS 160/M MX TL — spare parts
- Output
- 300–1840 kW
- Parts
- 11
- Factory code
- 3898211
- Series
- RLS 160/M · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 160/M MX TL · 3
—on request
—on request
Control devices for Riello RLS 160/M MX TL · 2
—on request
—on request
Burner pipes, flanges & connections for Riello RLS 160/M MX TL · 1
—on request
Burners for Riello RLS 160/M MX TL · 1
—on request
Motors for Riello RLS 160/M MX TL · 1
—on request
Oil pumps for Riello RLS 160/M MX TL · 1
—on request
Sensors and switches for Riello RLS 160/M MX TL · 1
—on request
Wiring, cables & electrical components for Riello RLS 160/M MX TL · 1
—on request
Specifications
Output300–1840 kW
Fan motor power4500 W
Power consumption6000 W
Net weight90 kg
Protection class (IP)IP44
Flame tube length503 mm
Flame tube diameter221 mm
Flame tube typeextended
Back pressure (combustion chamber)0–11 mbar
Gas consumption30–184 m³/h
Overall dimensions136.6 x 84.3 x 55.5 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesRiello RLS 160/M · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 160/M MX TC
12 parts · 20147789 - RLS 160/M MX TC FS1
11 parts · 20205611 - RLS 160/M MX TC FS1 MB 415/1 CT RT 30
12 parts · 20147789-3970198-3000843 - RLS 160/M MX TL
11 parts · 3898211
Questions about Riello RLS 160/M MX TL parts
Which burner components fit Riello RLS 160/M MX TL?
These fit Riello RLS 160/M MX TL: Riello Gas Damper Shaft 3006132; Riello Gas Pressure Measurement Nipple 3012049; Riello Spring 3012356. ↑
Which control devices fit Riello RLS 160/M MX TL?
These fit Riello RLS 160/M MX TL: Riello Furnace Automation LFL1.333RL 20014919; Riello Fuel-Air Ratio Regulator 3012358. ↑
Which burner pipes, flanges & connections fit Riello RLS 160/M MX TL?
These fit Riello RLS 160/M MX TL: Riello Connecting Fitting 3006722. ↑
Which burners fit Riello RLS 160/M MX TL?
These fit Riello RLS 160/M MX TL: Riello Burner Cover 3013119. ↑
Which motors fit Riello RLS 160/M MX TL?
These fit Riello RLS 160/M MX TL: Riello Electric Motor Clutch 3013828. ↑
Which oil pumps fit Riello RLS 160/M MX TL?
These fit Riello RLS 160/M MX TL: Riello Pump Repair Kit 3000805. ↑
