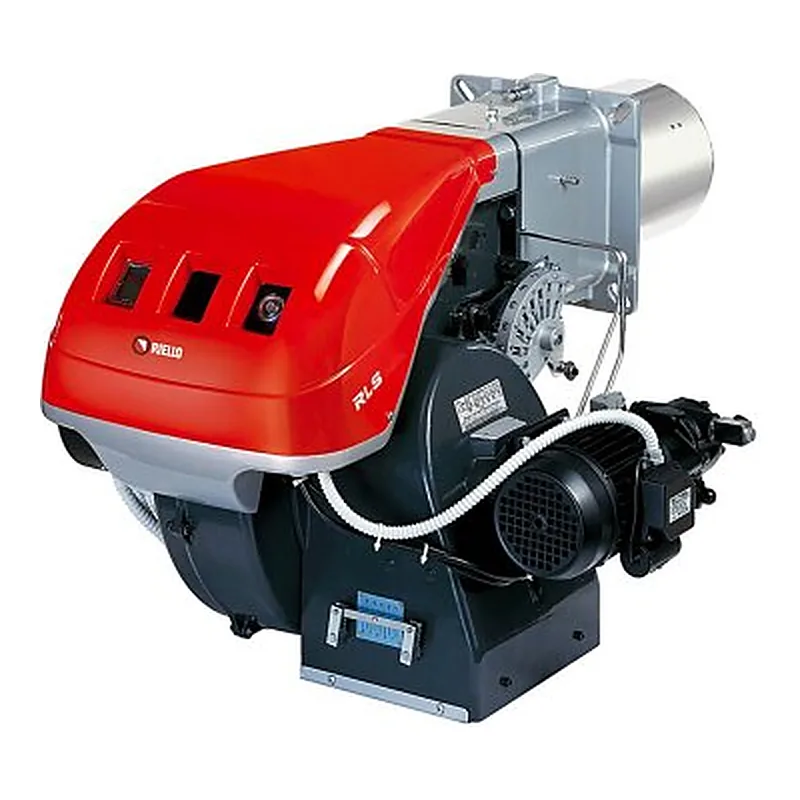

Riello RLS 190/M MZ TC FS1 — spare parts
- Output
- 550–2150 kW
- Parts
- 9
- Versions
- 2
- Series
- RLS 190/M · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 190/M MZ TC FS1 · 8
—on request
—on request
—on request
—on request
—on request
—on request
—on request
Control devices for Riello RLS 190/M MZ TC FS1 · 1
—on request
What is inside Riello RLS 190/M MZ TC FS1
Components named in the manufacturer's documentation.
- RFGO-A22
- SQN31
Specifications
Output550–2150 kW
Fan motor power4500 W
Power consumption5400 W
Net weight160 kg
Protection class (IP)IP40
Flame tube length412 mm
Flame tube diameter222 mm
Flame tube typestandard
Back pressure (combustion chamber)0–15 mbar
Gas consumption55–215 m³/h
Noise level96 dB
Operating temperature0–40 °C
Overall dimensions127.5 x 84.3 x 55.5 cm
Delivery scopewith combustion head
Versions
20159361
20205672
Other versions of this seriesRiello RLS 190/M · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 190/M MZ TC
8 parts · 20154111 - RLS 190/M MZ TC FS1
9 parts · 20159361 · 20205672 - RLS 190/M MZ TC FS1 MB 420/1 CT RT 30
9 parts · 20159361-3970182 - RLS 190/M MZ TL
8 parts · 20052642
Questions about Riello RLS 190/M MZ TC FS1 parts
Which burner components fit Riello RLS 190/M MZ TC FS1?

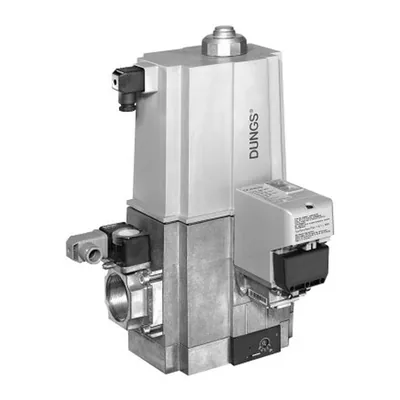

These fit Riello RLS 190/M MZ TC FS1: Riello Gas Manifold 3970181; Riello Gas Manifold 3970182; Riello Gas Ramp MBC 1200 SE 50 3970221; Riello Gas Manifold MBC 1200 SE 50 CT 3970225; Riello Gas Manifold MB 420/1 3970233; Riello Gas Manifold 3970234; Riello Gas Manifold 3970252; Riello Gas Manifold 3970257. ↑
Which control devices fit Riello RLS 190/M MZ TC FS1?
These fit Riello RLS 190/M MZ TC FS1: Riello Furnace Automation RFGO-A22 20144923. ↑
