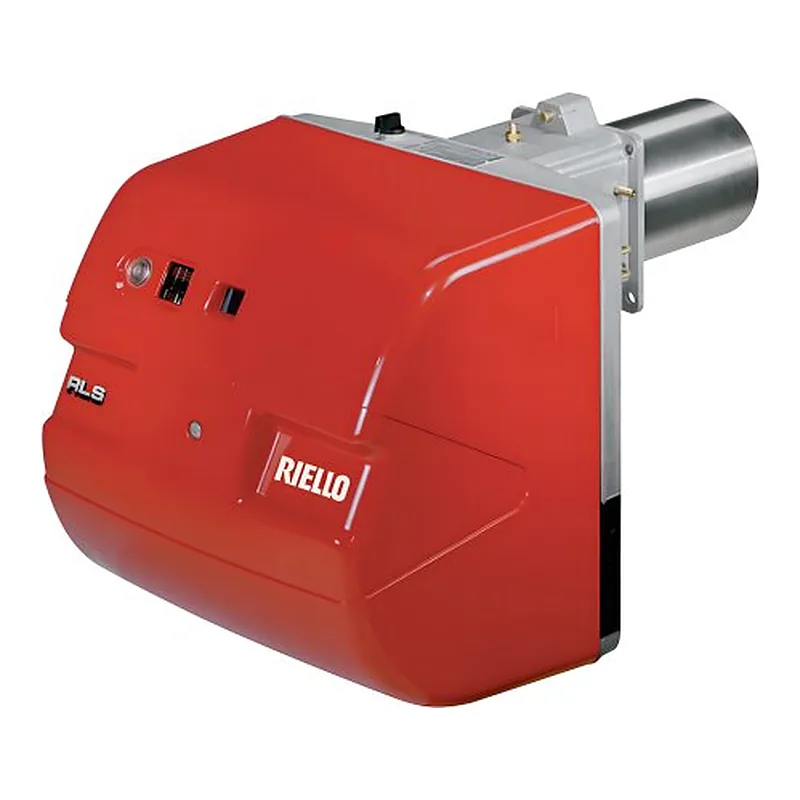

Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 — spare parts
- Output
- 100–325 kW
- Parts
- 11
- Factory code
- 20147897-3970540
- Series
- RLS 28 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 2
—on request
Impellers for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 2
—on request
—on request
Motors for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 2
—on request
—on request
Boiler pipes, flanges & connections for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 1
—on request
Control devices for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 1
—on request
Ignition cables and connectors for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 1
—on request
Sensors and switches for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 1
—on request
Wiring, cables & electrical components for Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 · 1
—on request
What is inside Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20
Components named in the manufacturer's documentation.
- RFGO-A22
- LKS 210
Specifications
Output100–325 kW
Gas connectionRp 3/4"
Firing stagesTwo-stage
Supply voltage220 V
Power consumption710 W
Net weight46 kg
Flame tube length191 mm
Flame tube diameter140 mm
Flame tube typestandard
Back pressure (combustion chamber)0–5.5 mbar
Gas consumption10–33 m³/h
Gas train pressure29.5–76.4 mbar
Noise level79 dB
Operating temperature0–40 °C
Overall dimensions77.1 x 47.6 x 47.4 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RLS 28 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 28 TC
10 parts · 20147897 · 3483201 - RLS 28 TC LP FS1
10 parts · 20208945 - RLS 28 TC LP FS1 MB 405/2 - F2SD 20
11 parts · 20147897-3970540 - RLS 28 TL
9 parts · 20159362
Questions about Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20 parts
Which burner components fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20?
These fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20: Riello Cotter Pin 3003816; Riello Air Damper 3003824. ↑
Which impellers fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20?
These fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20: Riello Fan Impeller 3003760; Riello Fan Impeller 3003761. ↑
Which motors fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20?
These fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20: Riello Motor 3003768; Riello Motor RHE RH Y 110 3003771. ↑
Which boiler pipes, flanges & connections fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20?
These fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20: RUF Flange Gasket RU3003817. ↑
Which control devices fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20?
These fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20: Riello Furnace Automation RFGO-A22 20144923. ↑
Which ignition cables and connectors fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20?
These fit Riello RLS 28 TC LP FS1 MB 405/2 - F2SD 20: Riello Ignition Electrode Cable 3003794. ↑
