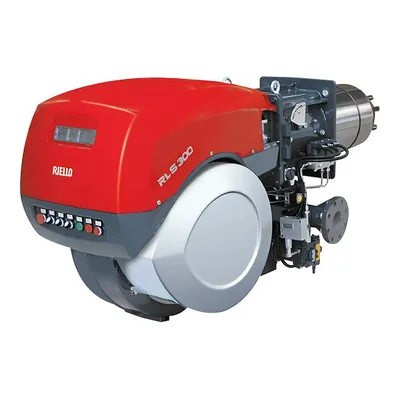

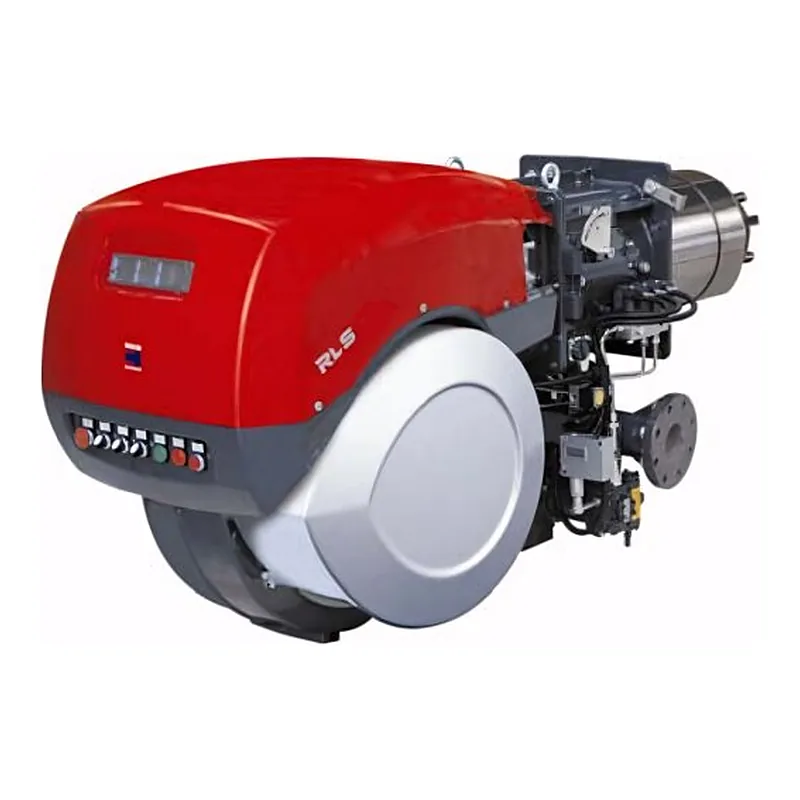

Riello RLS 300/BP MX — spare parts
- Output
- 600–3650 kW
- Parts
- 11
- Factory code
- 3898500
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 300/BP MX · 3
—on request
—on request
Ignition transformers for Riello RLS 300/BP MX · 2
—on request
—on request
Boiler filters, gaskets & seals for Riello RLS 300/BP MX · 1
—on request
Control devices for Riello RLS 300/BP MX · 1
—on request
Flame sensors for Riello RLS 300/BP MX · 1
—on request
Gas valves for Riello RLS 300/BP MX · 1
—on request
Ionization & ignition electrodes for Riello RLS 300/BP MX · 1
—on request
Motors for Riello RLS 300/BP MX · 1
—on request
What is inside Riello RLS 300/BP MX
Components named in the manufacturer's documentation.
- RSL 300/BP MX 782T
- RSL 300/BP MX 782T80
- RSL 400/BP MX 783T
- gas valve
- ignition transformer
- pressure switch
Specifications
Output600–3650 kW
Fan motor power4500 W
Power consumption10500 W
Net weight240 kg
Protection class (IP)IP54
Flame tube length510 mm
Flame tube diameter313 mm
Flame tube typestandard
Back pressure (combustion chamber)0–18 mbar
Gas consumption58–353 m³/h
Noise level94 dB
Operating temperature0–40 °C
Overall dimensions183.5 x 72 x 89 cm
Delivery scopewith combustion head, without gas train
Questions about Riello RLS 300/BP MX parts
Which burner components fit Riello RLS 300/BP MX?
These fit Riello RLS 300/BP MX: Riello Gas Pressure Measurement Nipple 3005447; Riello Bearing 3012795; Riello Equalizing Disc 3013469. ↑
Which ignition transformers fit Riello RLS 300/BP MX?

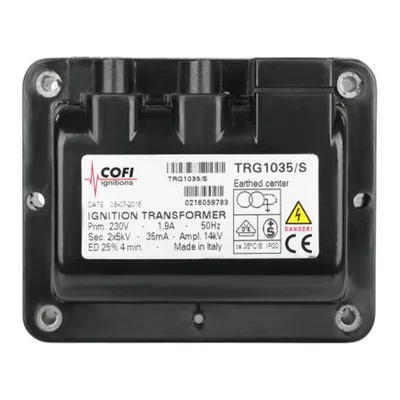

These fit Riello RLS 300/BP MX: Cofi Ignition transformer TRG1035/S; Riello Ignition transformer 3012488. ↑
Which boiler filters, gaskets & seals fit Riello RLS 300/BP MX?
These fit Riello RLS 300/BP MX: Riello Insulation Gasket 3013328. ↑
Which control devices fit Riello RLS 300/BP MX?
These fit Riello RLS 300/BP MX: Riello Furnace Automation LFL1.333RL 20014919. ↑
Which flame sensors fit Riello RLS 300/BP MX?
These fit Riello RLS 300/BP MX: Riello Flame sensor 3013446. ↑
Which gas valves fit Riello RLS 300/BP MX?
These fit Riello RLS 300/BP MX: Riello Solenoid Valve 3013457. ↑
