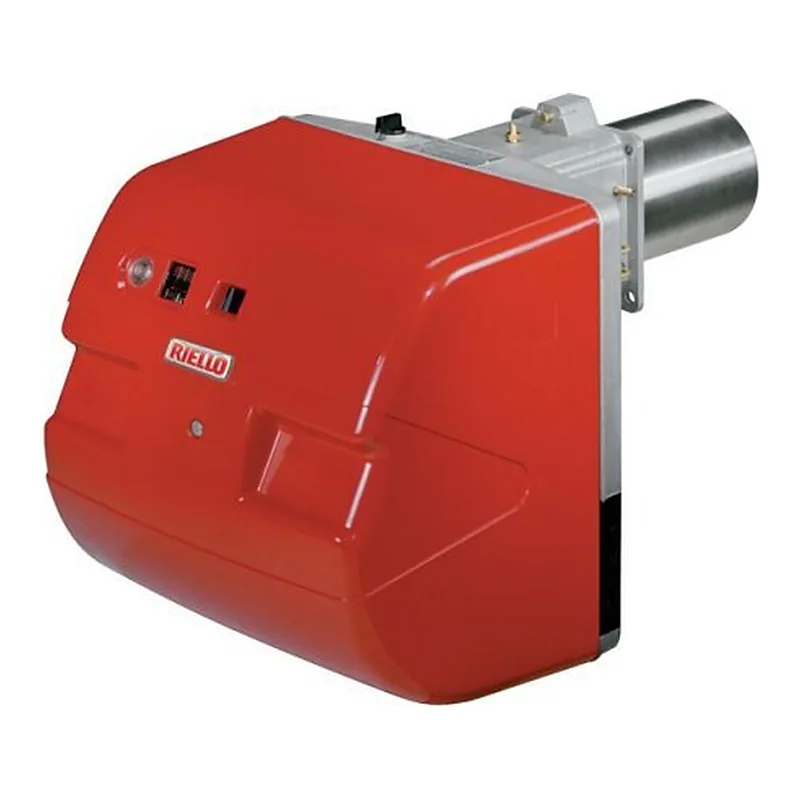

Riello RLS 38 TL LP FS1 — spare parts
- Output
- 116–442 kW
- Parts
- 9
- Factory code
- 20208941
- Series
- RLS 38 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 38 TL LP FS1 · 2
—on request
Impellers for Riello RLS 38 TL LP FS1 · 2
—on request
—on request
Boiler pipes, flanges & connections for Riello RLS 38 TL LP FS1 · 1
—on request
Ignition cables and connectors for Riello RLS 38 TL LP FS1 · 1
—on request
Motors for Riello RLS 38 TL LP FS1 · 1
—on request
Sensors and switches for Riello RLS 38 TL LP FS1 · 1
—on request
Wiring, cables & electrical components for Riello RLS 38 TL LP FS1 · 1
—on request
Specifications
Output116–442 kW
Gas connectionRp 1 1/2"
Firing stagesTwo-stage
Supply voltage220 V
Power consumption760 W
Net weight45 kg
Flame tube length336 mm
Flame tube diameter152 mm
Flame tube typeextended
Back pressure (combustion chamber)0–6 mbar
Gas consumption12–44 m³/h
Overall dimensions81 x 47.6 x 15.2 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RLS 38 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 38 TC
11 parts · 3484101 - RLS 38 TC LP FS1
10 parts · 20208942 - RLS 38 TC LP FS1 MB 407/2 - RSD 20
11 parts · 20147803-3970537 - RLS 38 TL LP
10 parts · 20052633 - RLS 38 TL LP FS1
9 parts · 20208941
Questions about Riello RLS 38 TL LP FS1 parts
Which burner components fit Riello RLS 38 TL LP FS1?
These fit Riello RLS 38 TL LP FS1: Riello Cotter Pin 3003816; Riello Air Damper 3003824. ↑
Which impellers fit Riello RLS 38 TL LP FS1?
These fit Riello RLS 38 TL LP FS1: Riello Fan Impeller 3003760; Riello Fan Impeller 3003761. ↑
Which boiler pipes, flanges & connections fit Riello RLS 38 TL LP FS1?
These fit Riello RLS 38 TL LP FS1: RUF Flange Gasket RU3003817. ↑
Which ignition cables and connectors fit Riello RLS 38 TL LP FS1?
These fit Riello RLS 38 TL LP FS1: Riello Ignition Electrode Cable 3003794. ↑
Which motors fit Riello RLS 38 TL LP FS1?
These fit Riello RLS 38 TL LP FS1: Riello Motor RHE RH Y 110 3003771. ↑
Which sensors and switches fit Riello RLS 38 TL LP FS1?
These fit Riello RLS 38 TL LP FS1: Riello Key Switch 3003770. ↑
