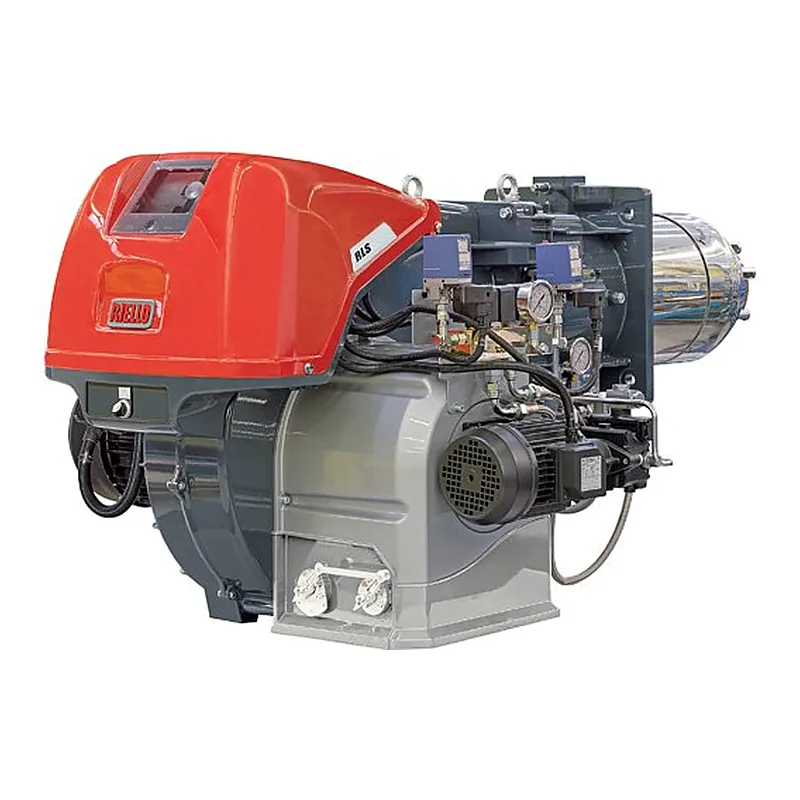

Riello RLS 410/EV MX TC FS1 — spare parts
- Output
- 640–4200 kW
- Parts
- 1
- Factory code
- 20182023
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RLS 410/EV MX TC FS1 · 1
Specifications
Output640–4200 kW
Supply voltage380 V
Power consumption10800 W
Net weight280 kg
Protection class (IP)IP54
Flame tube length507 mm
Flame tube diameter313 mm
Flame tube typestandard
Back pressure (combustion chamber)0–17 mbar
Gas consumption64–420 m³/h
Gas train pressure14–102 mbar
Overall dimensions169.7 x 112.5 x 79 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Questions about Riello RLS 410/EV MX TC FS1 parts
Which burner components fit Riello RLS 410/EV MX TC FS1?
These fit Riello RLS 410/EV MX TC FS1: Riello Continuous Ventilation Block 3010094. ↑
