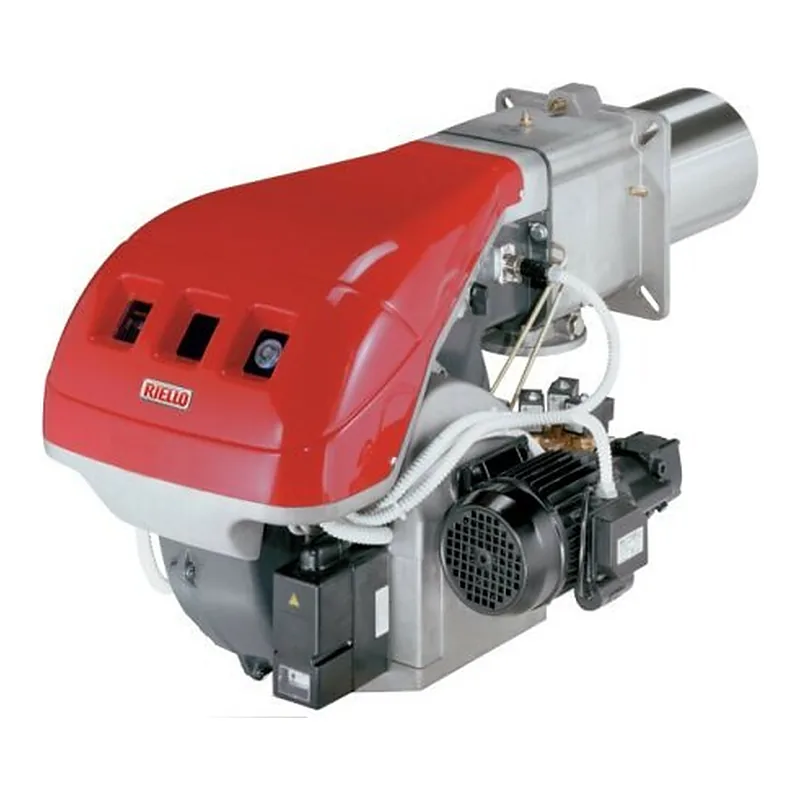

Riello RLS 70 TL LP FS1 — spare parts
- Output
- 232–814 kW
- Parts
- 12
- Factory code
- 20208900
- Series
- RLS 70 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Motors for Riello RLS 70 TL LP FS1 · 3
—on request
—on request
Burner components for Riello RLS 70 TL LP FS1 · 2
—on request
—on request
Ignition components for Riello RLS 70 TL LP FS1 · 2
—on request
—on request
Boiler pipes, flanges & connections for Riello RLS 70 TL LP FS1 · 1
—on request
Burner pipes, flanges & connections for Riello RLS 70 TL LP FS1 · 1
—on request
Burners for Riello RLS 70 TL LP FS1 · 1
—on request
Ionization & ignition electrodes for Riello RLS 70 TL LP FS1 · 1
—on request
Sensors and switches for Riello RLS 70 TL LP FS1 · 1
—on request
Specifications
Output232–814 kW
Firing stagesTwo-stage
Power consumption2000 W
Net weight70 kg
Flame tube length385 mm
Flame tube diameter179 mm
Flame tube typeextended
Back pressure (combustion chamber)0–9 mbar
Gas consumption23–81 m³/h
Overall dimensions84 x 69.1 x 55.5 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RLS 70 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- RLS 70 TC
14 parts · 20205582 · 3485001 - RLS 70 TC LP FS1
12 parts · 20208897 - RLS 70 TC LP FS1 MB 412/2 - F3SD 20
13 parts · 20147798-3970543 - RLS 70 TL LP
12 parts · 20052635 - RLS 70 TL LP FS1
12 parts · 20208900
Questions about Riello RLS 70 TL LP FS1 parts
Which motors fit Riello RLS 70 TL LP FS1?
These fit Riello RLS 70 TL LP FS1: Riello Electric Motor 3003966; Riello Electric Motor 3003968; Riello Electric Motor Clutch 3013828. ↑
Which burner components fit Riello RLS 70 TL LP FS1?
These fit Riello RLS 70 TL LP FS1: Riello Gas Pressure Measurement Nipple 3012049; Riello Air damper 3012422. ↑
Which ignition components fit Riello RLS 70 TL LP FS1?
These fit Riello RLS 70 TL LP FS1: Riello Igniter BG0910A + RF9.62 3003960; Riello Igniter BG1210A + RF9.10 3003961. ↑
Which boiler pipes, flanges & connections fit Riello RLS 70 TL LP FS1?
These fit Riello RLS 70 TL LP FS1: Riello Flange Gasket 3003991. ↑
Which burner pipes, flanges & connections fit Riello RLS 70 TL LP FS1?
These fit Riello RLS 70 TL LP FS1: Riello Gas Elbow 3012042. ↑
Which burners fit Riello RLS 70 TL LP FS1?
These fit Riello RLS 70 TL LP FS1: Riello Burner Igniter BG0910A + RF9.5 3003959. ↑
