Riello RN 38 — oil burner, photo 1

Riello RN 38 — spare parts

Fuel
Oil
Output
136–456 kW
Parts
11
Factory code
3433301

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Riello RN 38 burner specifications

FuelOil
Output136–456 kW
Firing stagesTwo-stage
Fan motor power250 W
Supply voltage220 V / 380 V
Length733 mm
Width476 mm
Height474 mm
Net weight46 kg
Protection class (IP)IP44
Flame tube length265 mm
Flame tube diameter166 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–7.4 mbar
Overall dimensions73.3 x 47.6 x 47.4 cm
Delivery scopewith combustion head

Which parts fit the Riello RN 38 burner?

Which gas nozzles fit the Riello RN 38 burner?

These fit Riello RN 38: Riello Gas nozzle Monarch 2,25/45 HO 3043131; Riello Gas nozzle 3043132. ↑

Which ignition transformers fit the Riello RN 38 burner?

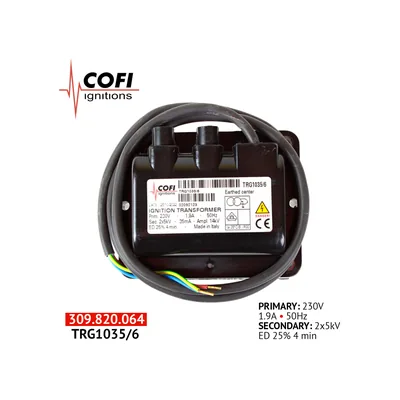

These fit Riello RN 38: Cofi Ignition transformer TRG1035/6; Riello Ignition transformer 3012488. ↑

Which burner parts fit the Riello RN 38 burner?

These fit Riello RN 38: Riello Cotter Pin 3003816. ↑

Which control panels fit the Riello RN 38 burner?

These fit Riello RN 38: Riello Status Indicator Panel 3003787. ↑

Which fan impellers fit the Riello RN 38 burner?

These fit Riello RN 38: Riello Fan Impeller 3003761. ↑

Which gaskets fit the Riello RN 38 burner?

These fit Riello RN 38: Riello Copper Washers 3007166. ↑
