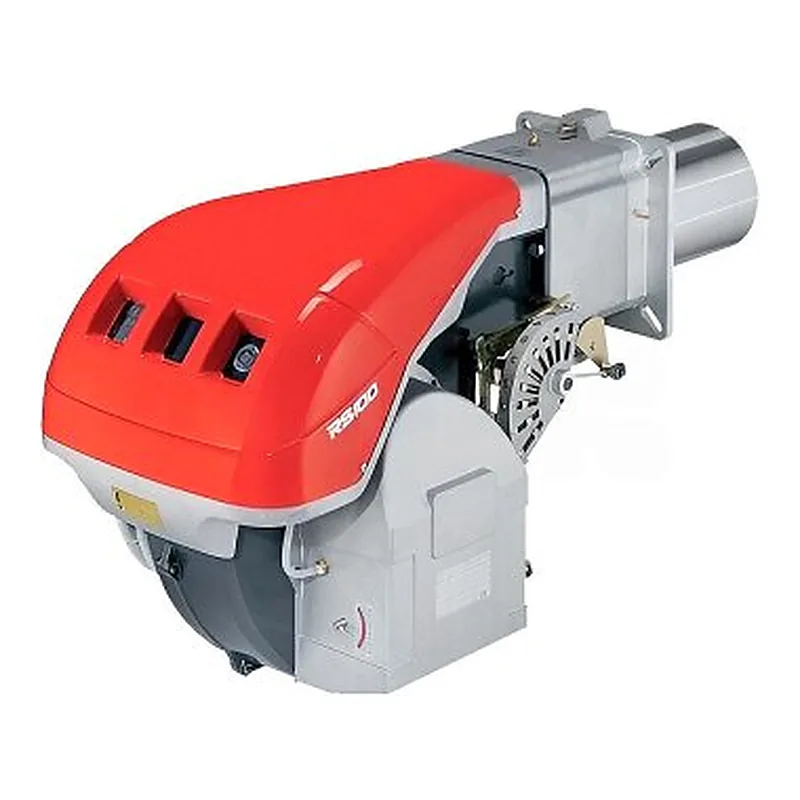

Riello RS 100 TL FS1 — spare parts
- Fuel
- Gas
- Output
- 232–1163 kW
- Parts
- 14
- Versions
- 2
- Series
- RS 100 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 100 TL FS1 · 5
—on request
—on request
—on request
—on request
Actuators for Riello RS 100 TL FS1 · 1
433.78 EURexcl. VAT · import VAT and duties on delivery
Boiler filters, gaskets & seals for Riello RS 100 TL FS1 · 1
—on request
Boiler pipes, flanges & connections for Riello RS 100 TL FS1 · 1
—on request
Burner pipes, flanges & connections for Riello RS 100 TL FS1 · 1
—on request
Control boxes for Riello RS 100 TL FS1 · 1
226.43 EURexcl. VAT · import VAT and duties on delivery
Ignition components for Riello RS 100 TL FS1 · 1
—on request
Ionization & ignition electrodes for Riello RS 100 TL FS1 · 1
—on request
Sensors and switches for Riello RS 100 TL FS1 · 1
—on request
Venturi tubes for Riello RS 100 TL FS1 · 1
—on request
What is inside Riello RS 100 TL FS1
Components named in the manufacturer's documentation.
- LKS 210-21 in stock
- RMG88.62C2 in stock
- SIEMENS RMG88.62C2 in stock
- 3012023
- 3012024
- 3012025
- COMPACT 8/20 PM
- LGW 10 A2
- LKS 210
- RMG88
Specifications
FuelGas
Output232–1163 kW
Firing stagesTwo-stage
Fan motor power1500 W
Power consumption1800 W
Net weight221 kg
Protection class (IP)IP40
Flame tube length385 mm
Flame tube diameter179 mm
Flame tube typeextended
Back pressure (combustion chamber)-0.9–9.3 mbar
Gas consumption23–116 m³/h
Noise level88 dB
Operating temperature0–40 °C
Overall dimensions129.6 x 52.7 x 55.5 cm
Delivery scopewith combustion head
Versions
20194293
3785303
Other versions of this seriesRiello RS 100 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 100
15 parts · 20194293 · 3785302 - RS 100 TC FS1 MB 412/1 - RT 20
12 parts · 3785302-3970144-3000843 - RS 100 TC FS1 MB 415/1 - RT 30
12 parts · 3785302-3970180-3000843 - RS 100 TL FS1
14 parts · 20194293 · 3785303 - RS 100 TL FS1 MB 415/1 - RT 30
12 parts · 3785303-3970180-3000843
Questions about Riello RS 100 TL FS1 parts
Which burner components fit Riello RS 100 TL FS1?
These fit Riello RS 100 TL FS1: Riello Spring Retainer 3003880; Riello Equalizing Disc 3012027; Riello Mixing device head 3012029; Riello Gas Pressure Measurement Nipple 3012049; Riello Mounting Bracket 3012193. ↑
Which actuators fit Riello RS 100 TL FS1?
These fit Riello RS 100 TL FS1: Honeywell Servo motor B1-15S2 LKS210-21. ↑
Which boiler filters, gaskets & seals fit Riello RS 100 TL FS1?
These fit Riello RS 100 TL FS1: Riello Insulation Gasket 3012735. ↑
Which boiler pipes, flanges & connections fit Riello RS 100 TL FS1?
These fit Riello RS 100 TL FS1: Riello Flange Gasket 3003991. ↑
Which burner pipes, flanges & connections fit Riello RS 100 TL FS1?
These fit Riello RS 100 TL FS1: Riello Gas Elbow 3012042. ↑
Which control boxes fit Riello RS 100 TL FS1?
These fit Riello RS 100 TL FS1: Riello Burner control RMG88.62C2 3013073. ↑
